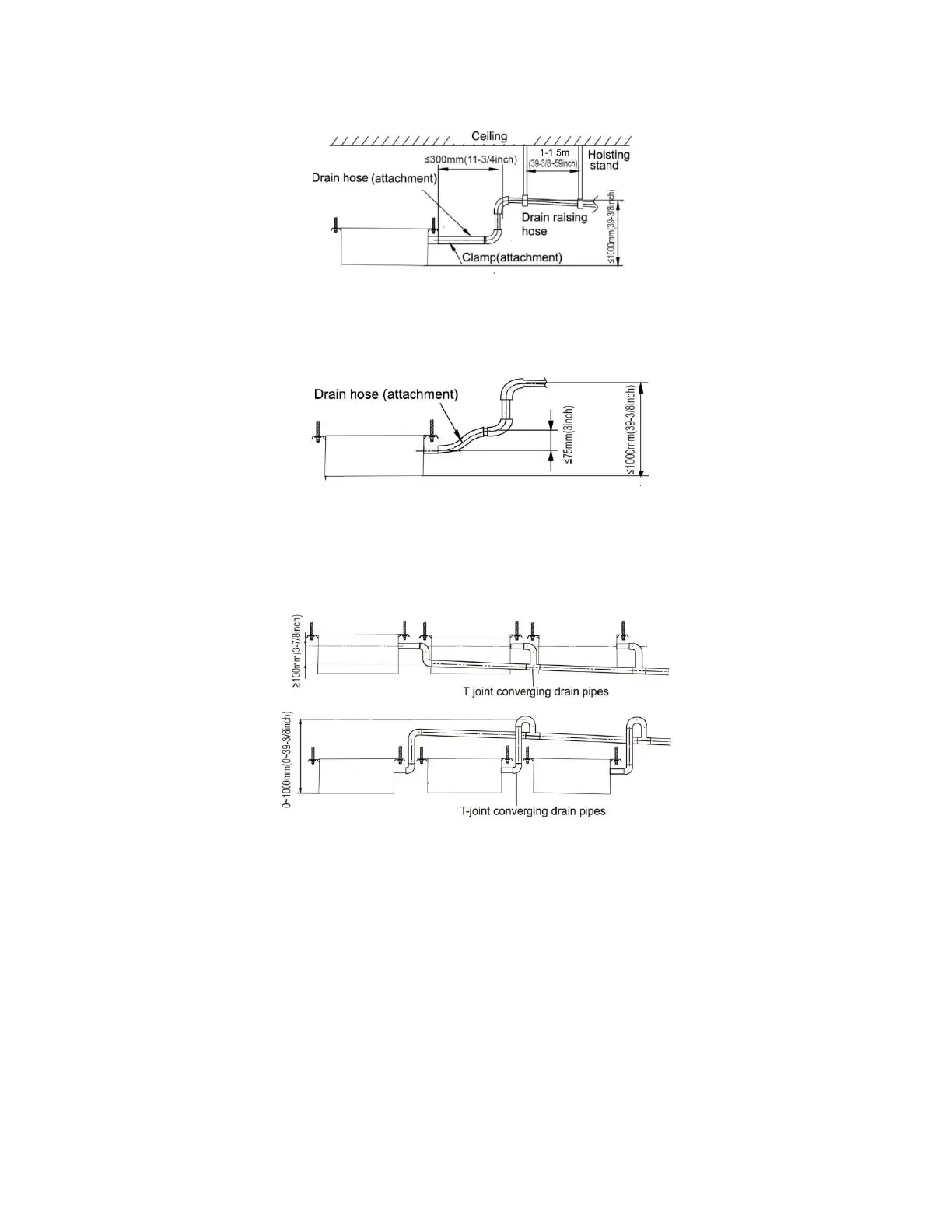

Fig. 4.28
2). The vertical height of the drain hose should be 3 in. (75mm) or less so that it is
unnecessary for the drain port to withstand additional force.
Fig. 4.29
3). When multiple drain hoses are used, their installation should be performed as shown in the
figure below.
Fig. 4.30
