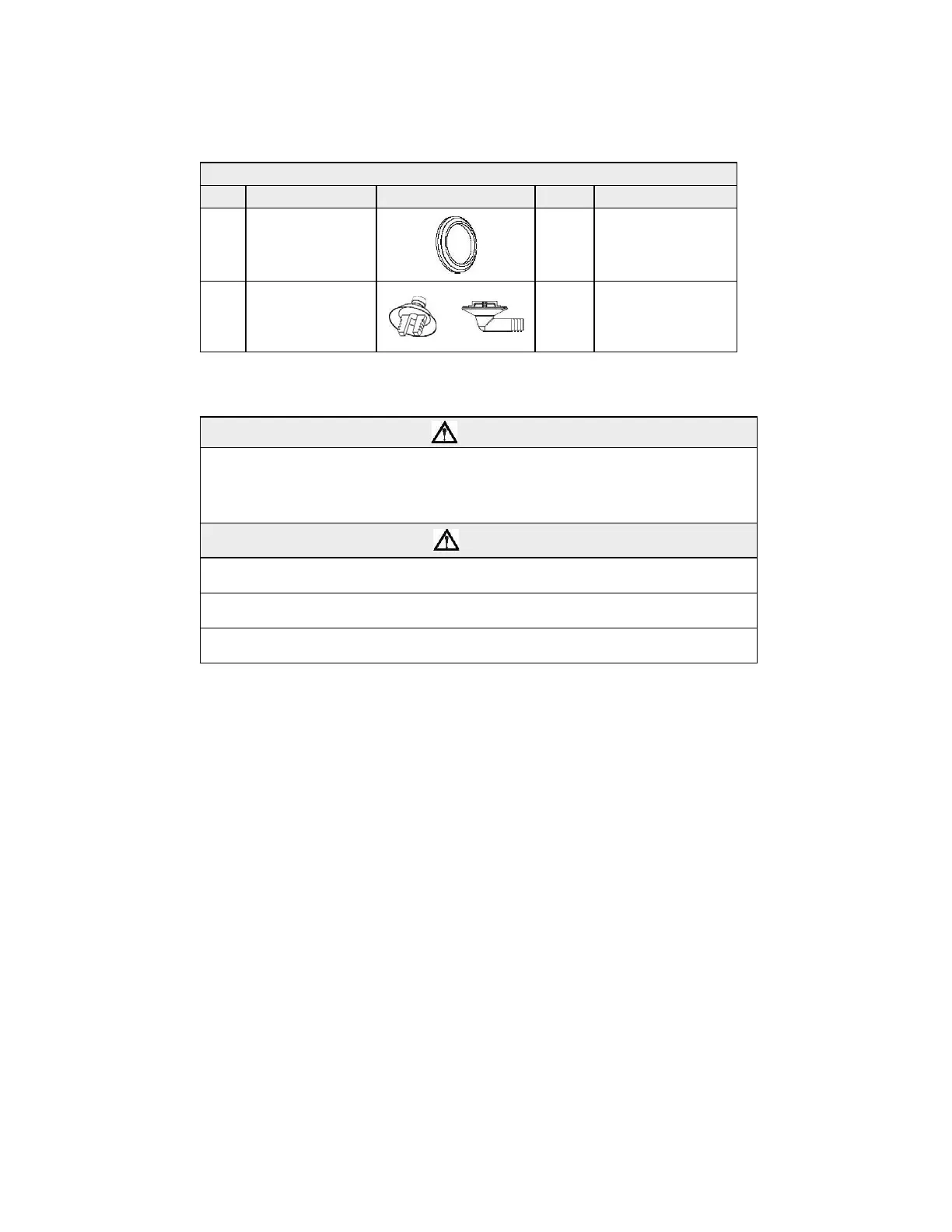

Table 3.2
Outdoor Unit Accessories
No. Name Appearance Q'ty Usage
1 Drain Plug
2
or
3
To plug the unused
drain holes
2 Drainage Connecter
or
1
To connect with the
hard PVC drain pipe
3.2 Selection of the Installation Location
WARNING!
Each unit must be installed on a surface that is strong enough to support the weight of that
respective unit and the forces that occur during normal operation.
The location must allow the unit to be securely attached. If the unit is attached insufficiently, it could
topple or fall, resulting in possible injury or property damage.
CAUTION!
(1) Do not install the unit where there is the danger of combustible gas leakage
(2) Do not install the unit near a heat source, steam, or flammable gas.
(3) Children must be instructed not to operate the unit unless supervised by an adult.
Decide the installation location with the customer as follows:
3.2.1 Indoor Unit
Select an installation site where the following conditions are fulfilled and meet your customer's
approval.
1. The air intake or outlet vent of the indoor unit should be clear of obstructions so that the
airflow can be circulated throughout the room.
2. Make sure that the installation meets the requirements of the installation diagram space
allowances. Ensure proper service and airflow clearances are allowed.
3. Select a place that can withstand 5 times of the weight of the indoor unit to minimize
operating noise and vibration and avoid possible structure and/or equipment damage.
4. Make sure the unit is leveled properly to ensure adequate drainage of condensate water.
MS-SVN043-EN
