Trane R Series User Manual

RLC-SVX07A-EN 37
Installation - Mechanical

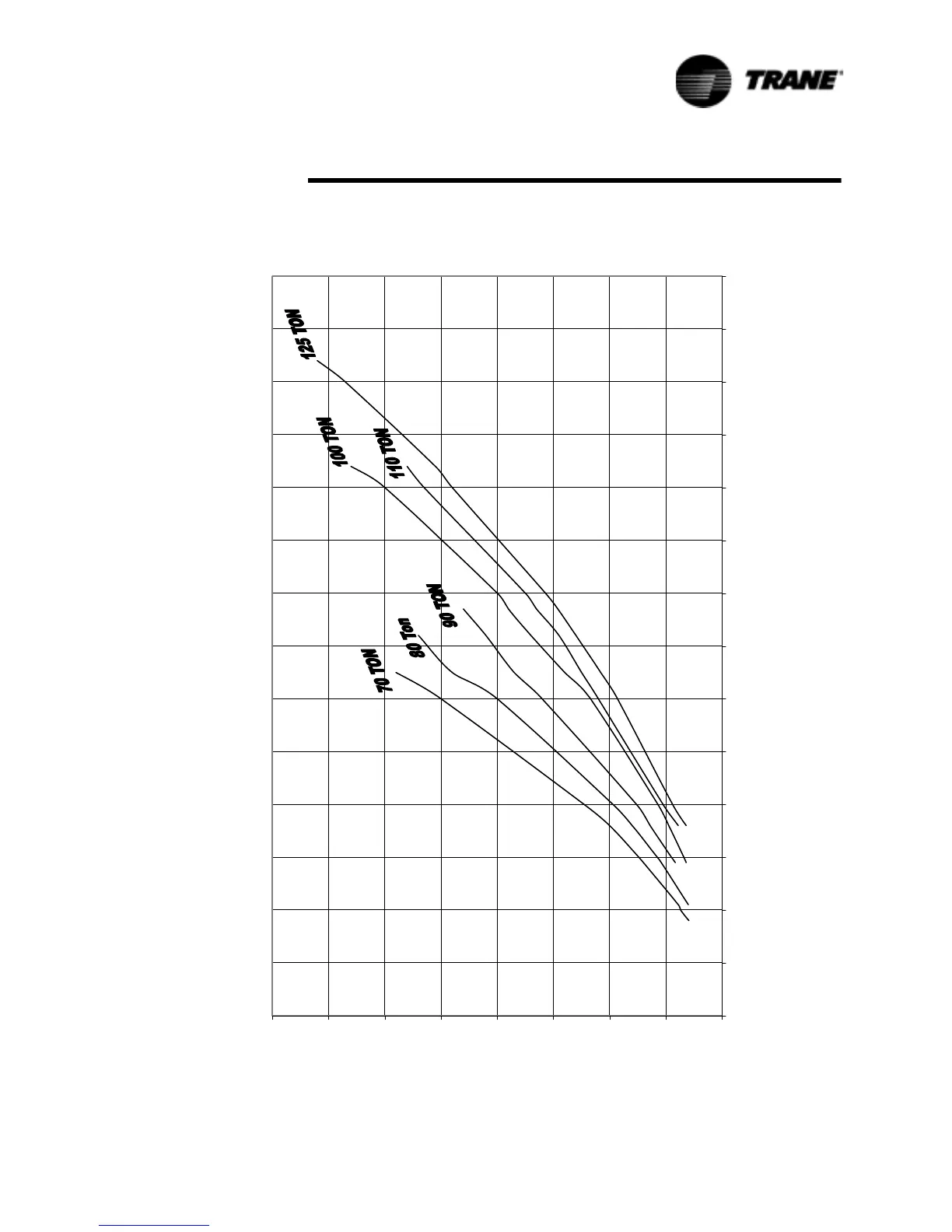

Figure 18 RTWA – Long Condenser Water Pressure Drop
RTWA - Long Condenser Water Pressure Drop
0 5
10 15 20 25 30 35 40
0 50 100 150 200 250 300 350 400 450 500 550 600 650 700
FLOW (GPM)
PRESSURE DROP (FT. OF H
2
O)
