Installation - Electrical
Terminal strip TB4 is used to wire the second, third, and fourth units to the
Remote CLD. TB4 is labeled as shown below:
Terminals 1-3 are for the second unit.
Terminals 4-6 are for the third unit.
Terminals 7-9 are for the fourth unit.

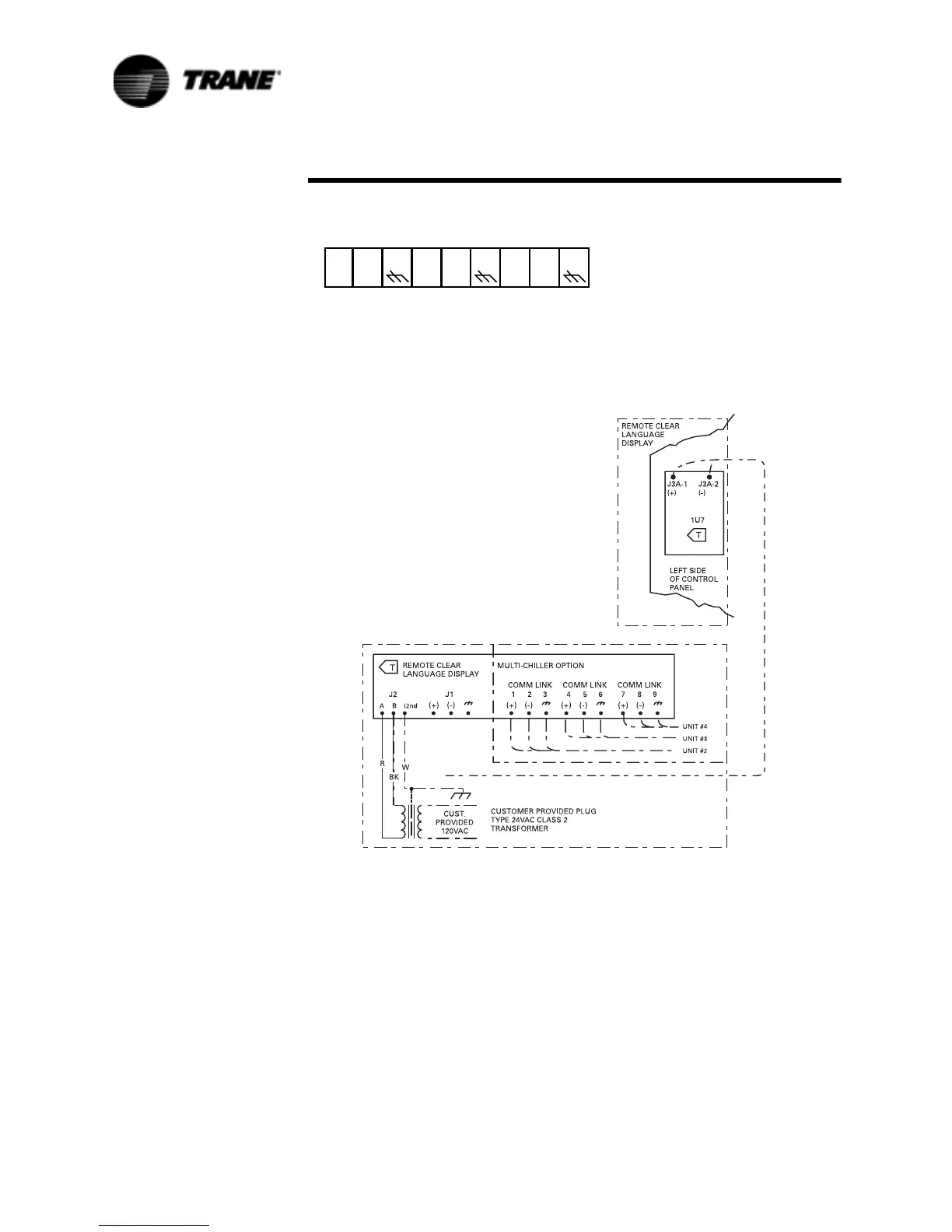

Figure 34 Remote Display Panel Interconnecting Wiring













