18 SS-SVX09A-EN
Installation
Note: All water connections are Victaulic.

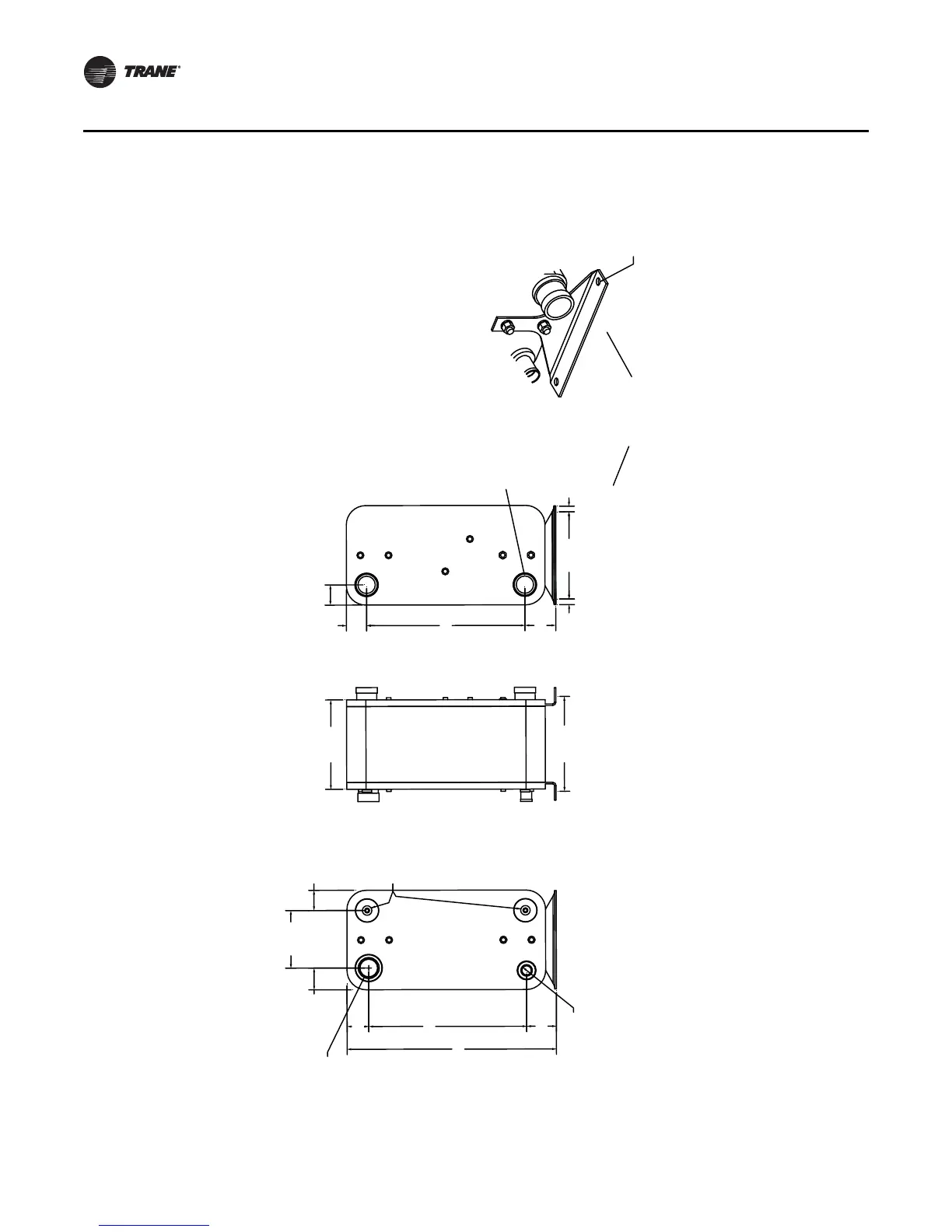

Figure 11. BPHE 30 Evaporator Chiller Dimensions
17.670
2.431
3.331
23.432
10.004
6.440
2.431
2.261
10.604
1.130 ID
2.138 ID
2.261
2.261
17.720
3.451
SUCTION
LIQUID
SWAGELOK
B-4-P
1/4" NPT
MALE
PIPE
PLUG
OR
EQUIVALENT
FIELD
PROVIDED
ENTERING
WATER
LEAVING
WATER
2X Ø2.00
Evaporator mounting brackets
and insulation are provided
with Chiller BPHE Accessory
for field installation - Field
provided vinyl tape is required
to seal insulation edges after
installation.
9.760
.625
.625
FRONT
VIEW
W/INSULATION
RIGHT
VIEW
W/INSULATION
REAR
VIEW
W/INSULATION
MOUNTING
BRACKET x 2
Ø.562 X 2 Each Bracket
