Installation
NOTICE
Failure to use thermal paste could result in erratic temperature sensing resulting in equipment
damage.
Final Water Piping Connections
1. All water piping to the system should be flushed thoroughly before making the final connections.
NOTICE
If an acidic commercial flushing solution is used, construct a temporary bypass around the EVP
chiller to prevent damage to the internal components of the evaporator.
2. Connect the water pipe to the EVP chiller.

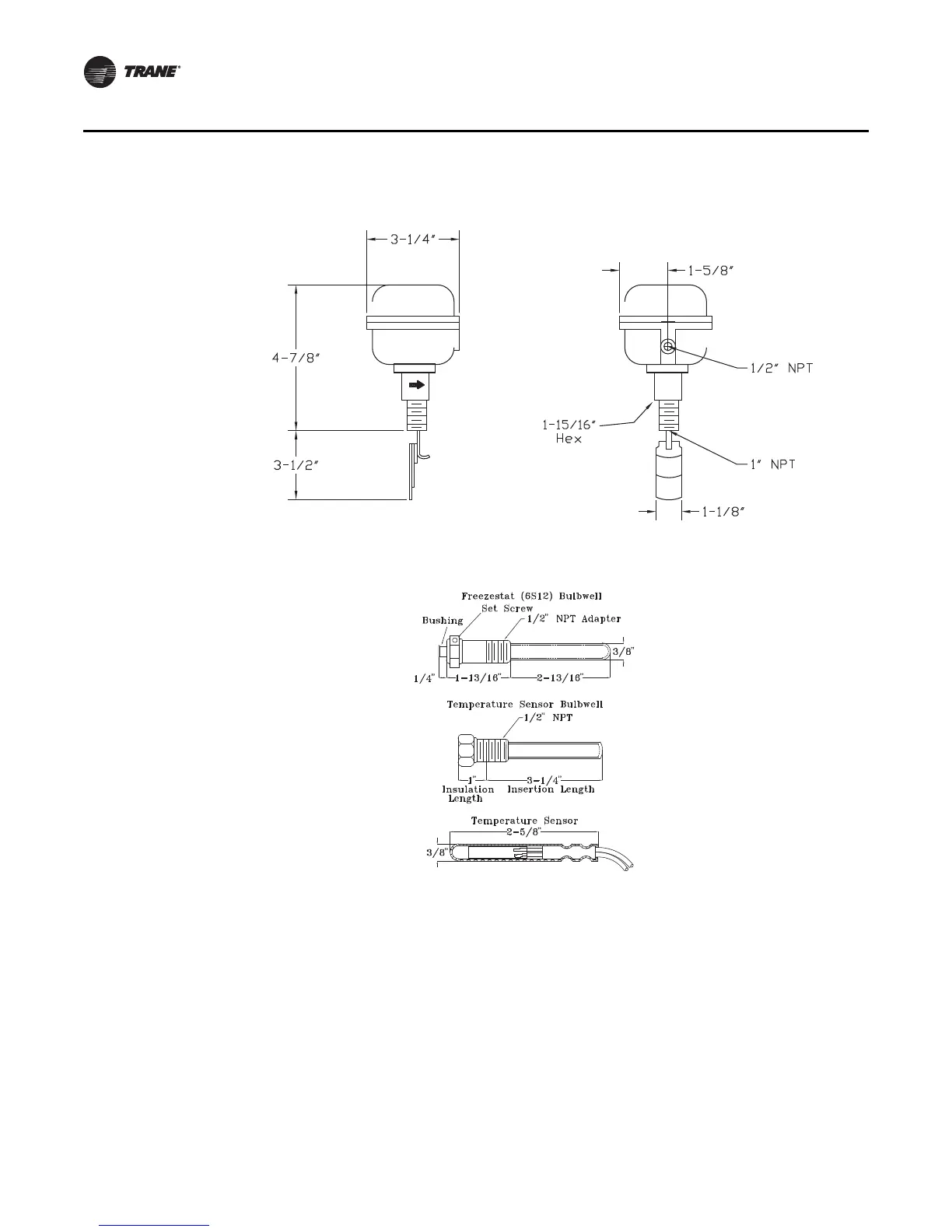

Figure 23. Optional Flow Switch Illustration
Figure 24. Freezestat Bulb-well, Temperature Sensor & Well
