Installation
RRU-SVX02F-EN 27
Use the following checklist in conjunction with “General
Unit Requirements,” p. 22 to ensure that the unit is
properly installed and ready for operation.

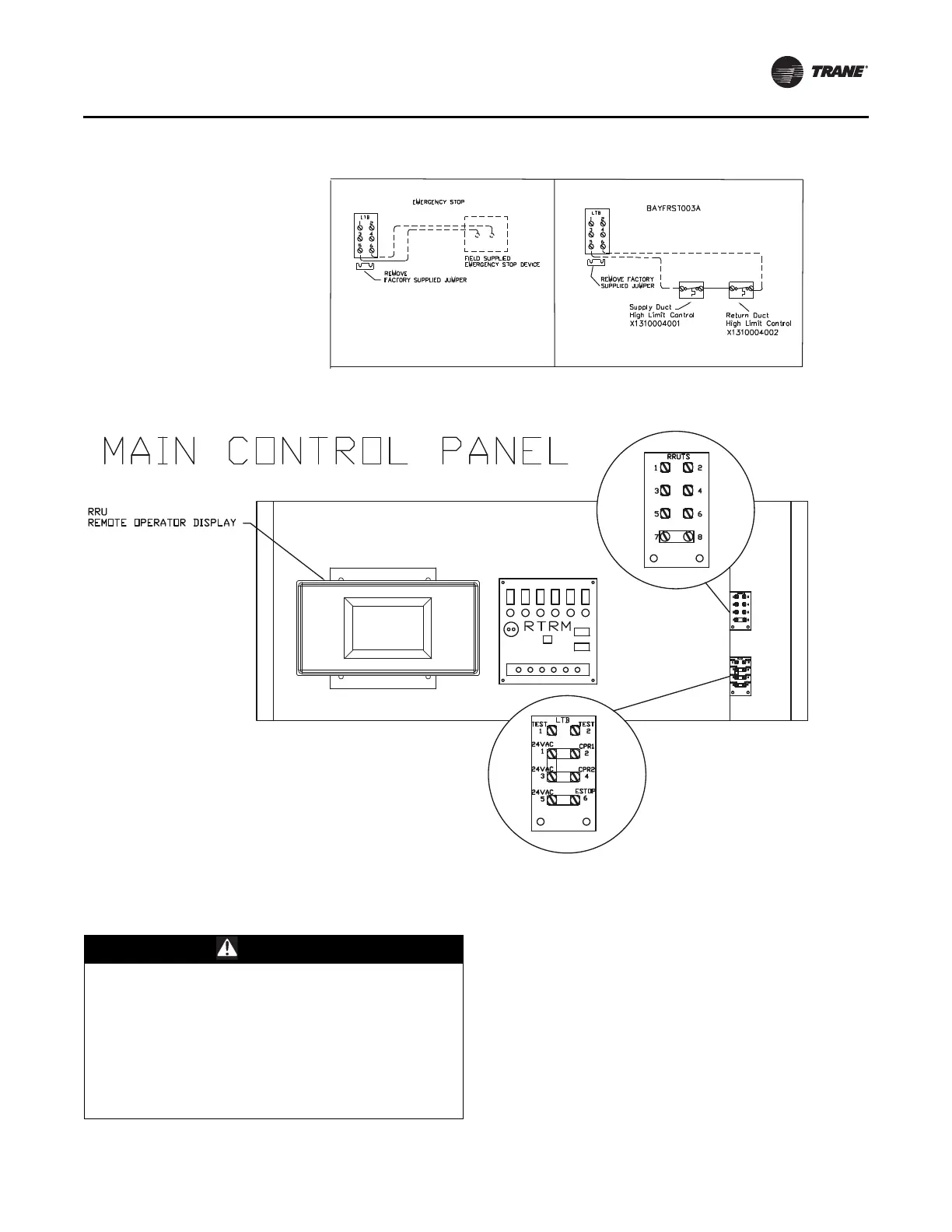

Figure 10. Typical field wiring diagrams for optional controls
WARNING
Hazardous Voltage w/Capacitors!
Failure to disconnect power and discharge capacitors
before servicing could result in death or serious injury.
Disconnect all electric power, including remote
disconnects and discharge all motor start/run
capacitors before servicing. Follow proper lockout/
tagout procedures to ensure the power cannot be
inadvertently energized. Verify with an appropriate
voltmeter that all capacitors have discharged.
Install flue assembly.
Check all electrical connections for tightness and
“point of termination” accuracy.
Verify that the condenser airflow will be
unobstructed.
Verify that the condenser fan and indoor blower turn
freely without rubbing and are properly tightened on
the shafts.
Check the supply fan belts for proper tension and the
fan bearings for sufficient lubrication. If the belts
require adjustment, or if the bearings need
lubricating, refer to the maintenance section of this
manual for instructions.
