System Configuration and Pre-Start—MP Unit
Controller
Alternate Unit Controller Model
UC600
The Tracer™ UC600 is a BACnet
®
unit controller that is
designed to work with the Tracer SC and third-party
BACnet MS/TP systems. Additional expansion modules
including the XM30, XM32, and/or XM70 may be factory
installed and wired as supplied options require.
ROD: The TD7 display is supplied when the ROD option is
selected with UC600 controls. The color screen is touch-
sensitive.

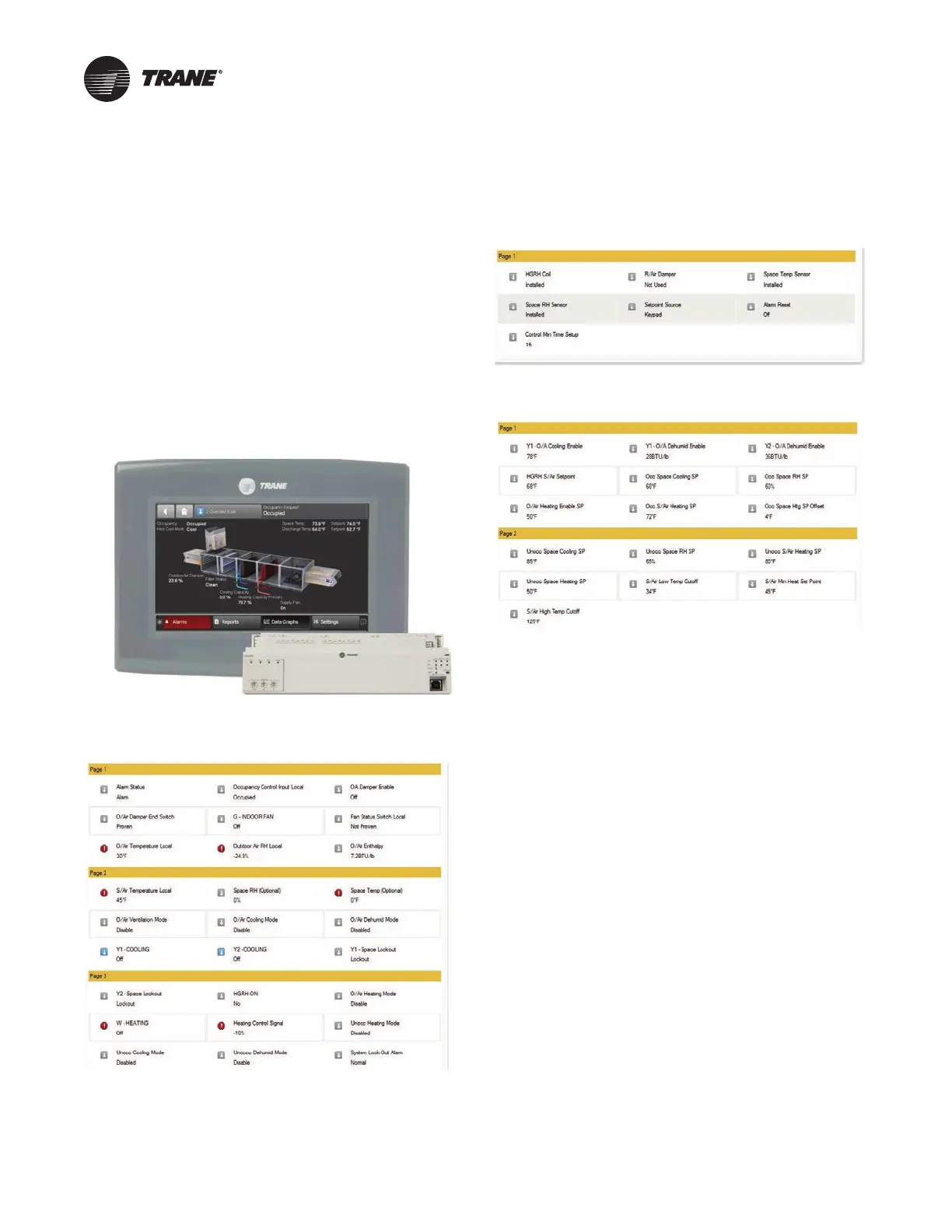

Figure 11. TD7 and Tracer UC600
Figure 12. Tracer UC600: System Status
Figure 13. Tracer UC600: System Setup
Figure 14. Tracer UC600: System Setpoints
