RTAC-SVX002A-EN 72
Controls Interface

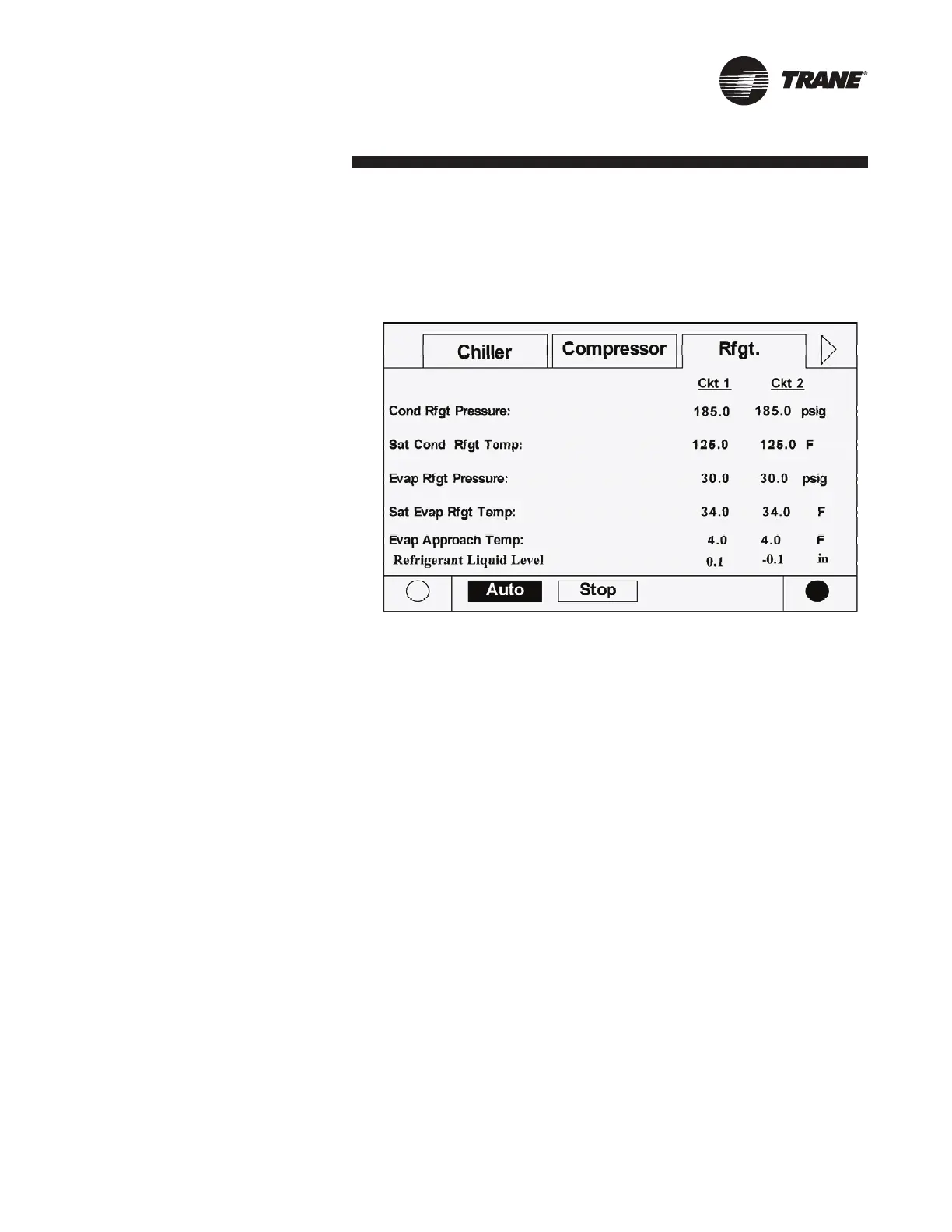

Refrigerant Screen
The refrigerant screen displays those aspects of the chiller related to the refrigerant
circuits.
All pressures are displayed to 0.1 psig or 1 kPa.
Condenser Refrigerant Pressure
Circuit 1 and 2
DynaView always displays all pressures
(English or SI) as gauge pressures. The
correct setting of the local atmospheric
pressure is necessary for accurate
gauge display.
Condenser Refrigerant Temperature
Circuit 1 and 2
The main processor will calculate and
display a saturated temperature based
on the respective pressure read.
Evaporator Refrigerant Pressure
Circuit 1 and 2
DynaView always displays all pressures
(English or SI) as gauge pressures. The
correct setting of the local atmospheric
pressure is necessary for accurate
gauge display.
Evaporator Refrigerant Temperature
Circuit 1 and 2
The main processor will calculate and
display a saturated temperature based
on the respective pressure read.
Evaporator Approach Temperature
Circuit 1 and 2
The approach temperature is calculated
from the leaving water temperature
minus the saturated evaporator
temperature for the respective circuit.
Refrigerant Liquid Level Circuit 1
and 2 (only available on software
revisions 18.0 or later)
