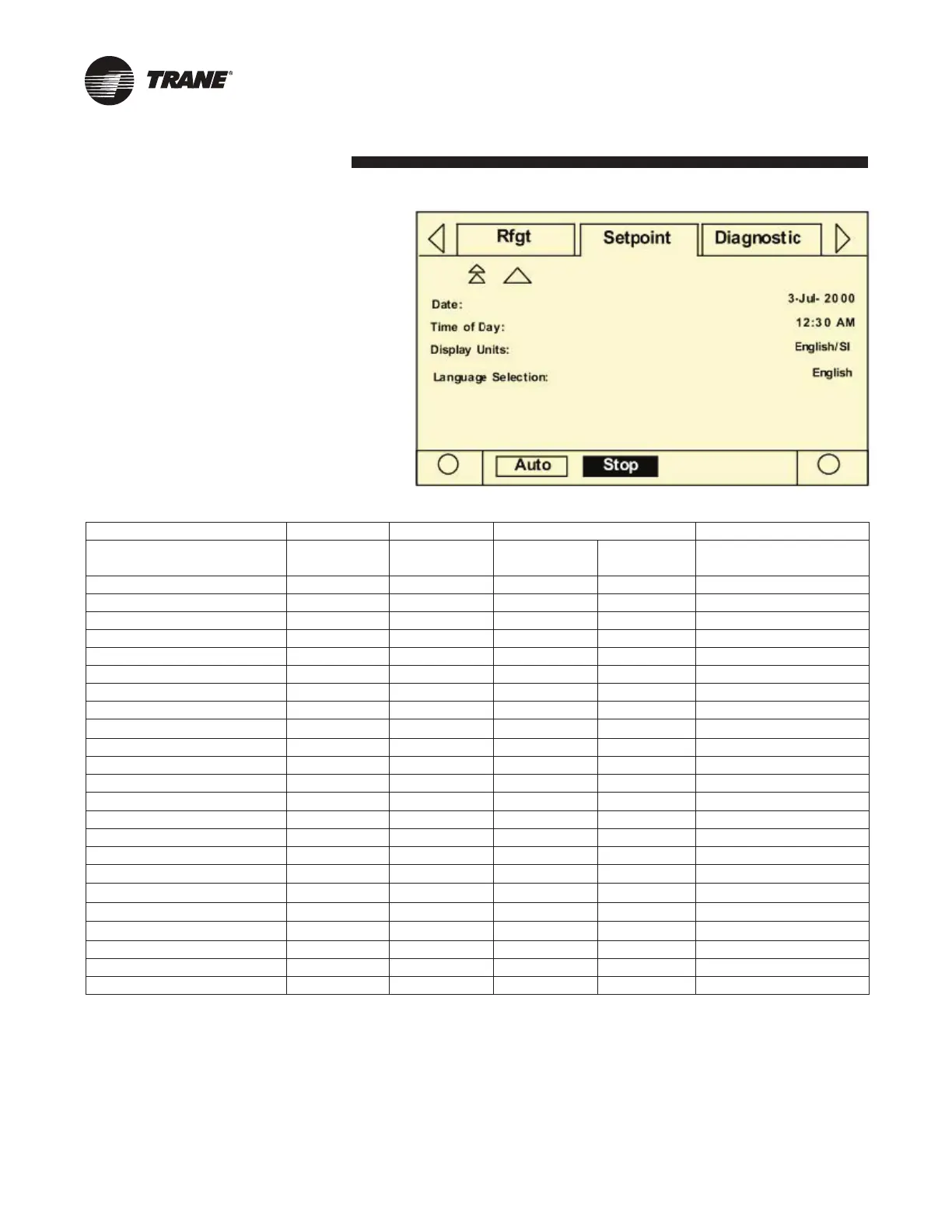

Tab. VI-08 – Setpoint Subscreens – Table of Text, Data, Ranges, etc.
Button Selections
Setpoint Screen Title Resolution Setpoint Field Radio 1 Radio 2 Monitor Value
Auto Local or Remote Remoto Local
Front Panel CWS (3) + o - XX.X
Front Panel CLS Integer (4) XXX
Condenser Limit Stpt Integer (4) XXX
Low Ambient Lockout Stpt (3) + o - XX.X
Low Ambient Lockout Enable Enable
Ice Building Disable Disable
Front Panel Ice Term. Set pt (3) + o - XX.X
Cprsr 1A Pumpdown (7) Vaciar (1) Abort Comp 1A Suction Pressure
Cprsr 1B Pumpdown (7) Vaciar (1) Abort Comp 1B Suction Pressure
Cprsr 2A Pumpdown (7) Vaciar (1) Abort Comp 2A Suction Pressure
Cprsr 2B Pumpdown (7) Vaciar (1) Abort Comp 2B Suction Pressure
EXV Ckt 1 Open (7) Open (1) Auto Ckt 1 Evaporator Pressure
EXV Ckt 2 Open (7) Open (1) Auto Ckt 2 Evaporator Pressure
Ckt 1 Lockout Enable Disable
Ckt 2 Lockout Enable Disable
External Chilled Water Setpt Enable Disable
External Current Limit Set point Enable Disable
Date (6) (6)
Time of Day (6) (6)
Display Units English SI
Language Selection 1 (2) Selection 2 (2)
Notes:
(1) Button is reverse video while the function is active and then returns to normal.
(2) Language choices are dependent on what the Service Tool has setup in the Main Processor. Get Radio Button names from Main Processor setups.
(3) Temperatures will be adjustable to 0.1 °F or °C or 1 deg F or C dependent on the resolution setting adjustable through the Service Tool. The Main Processor
will provide the minimum and maximum allowable value.
(4) Adjustable to nearest integer or whole %. The Main Processor will provide the minimum and maximum allowable value.
(5) Enables a DynaView Lockout screen. All other screens time out in 30 minutes to this screen. The DynaView Lockout Screen will have 0-9 keypad to permit the
user to reenter the other DynaView screens with a xed password.
(6) The Date and Time setup screen formats deviate slightly from the standard screens dened above. See the alternate screen layouts following.
(7) The subscreen for these setpoints will have the additional direction “Available OnlyWhen Unit Is In Stop”.
