6 RLC-SVX05A-EN
CH530 OverviewCH530 Overview
•EXV stepper driver
• liquid level sensor input
• inverter interface
• pressure transducer

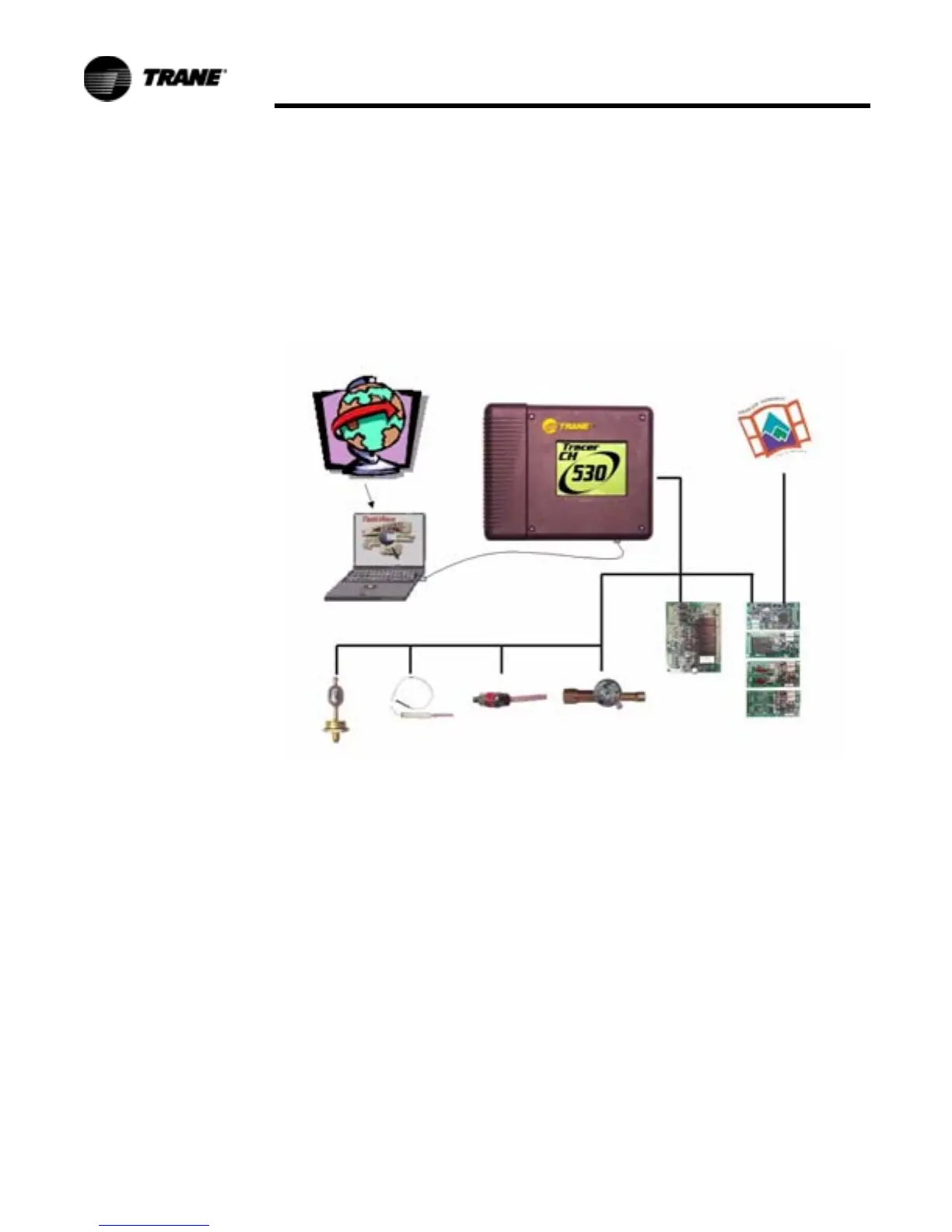

The following is a graphic example of the CH530 architecture.
Figure 1. CH530
