RLC-SVD05A-EN 65
TechView Service Tool
Using TechView
1 Connect laptop to the Main Processor using a RS232 serial cable. Refer to
Figure 38.
2 A TechView icon has been placed on the computers desktop. Double click on
the icon to begin using TechView.
Click on
Local
Connection

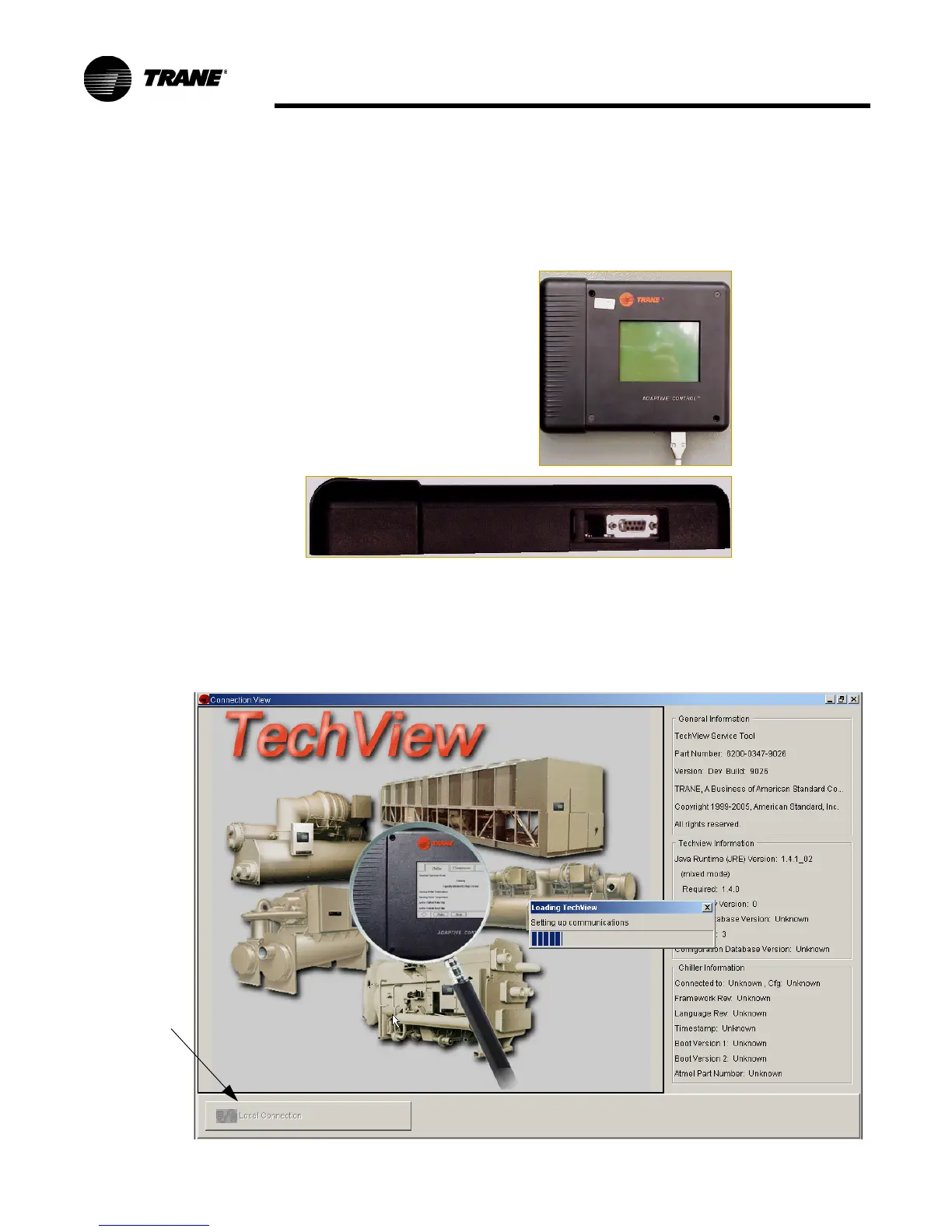

Figure 38.TechView Connection
Figure 39.Connection Screen
