Menu Item Description
RTHC-SVD01B-EN 13

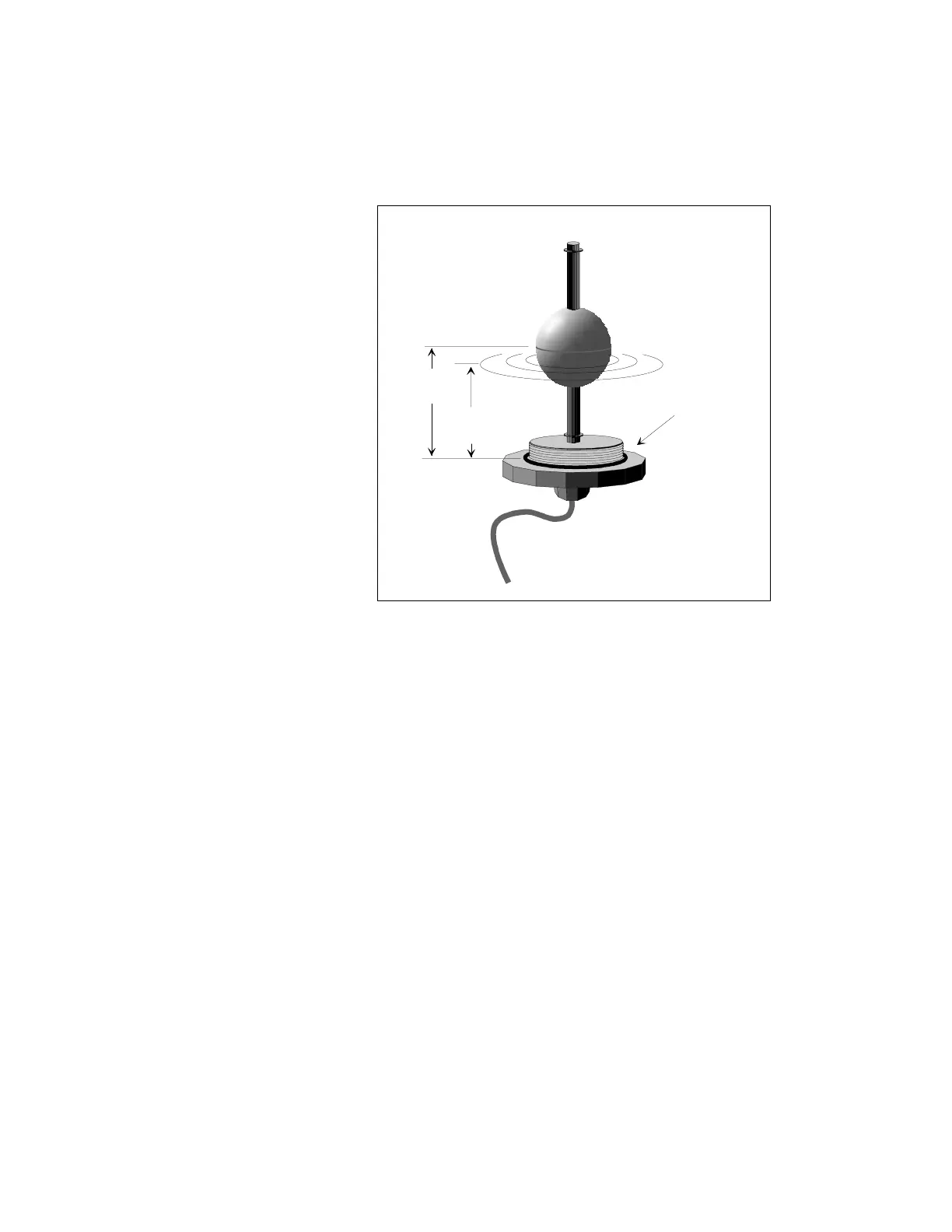

Figure 2-3 Liquid Level Sensor
Height of R134a
liquid pool at sensor's
midrange is 3.39"
above flange
Center line of float
at sensor's midrange
is 3.56" above flange
Install sensor so that
flange face is at
(Optimum liquid level height) - 3.39
relative to bottom inside of shell
