MX2 Starter Dimensions

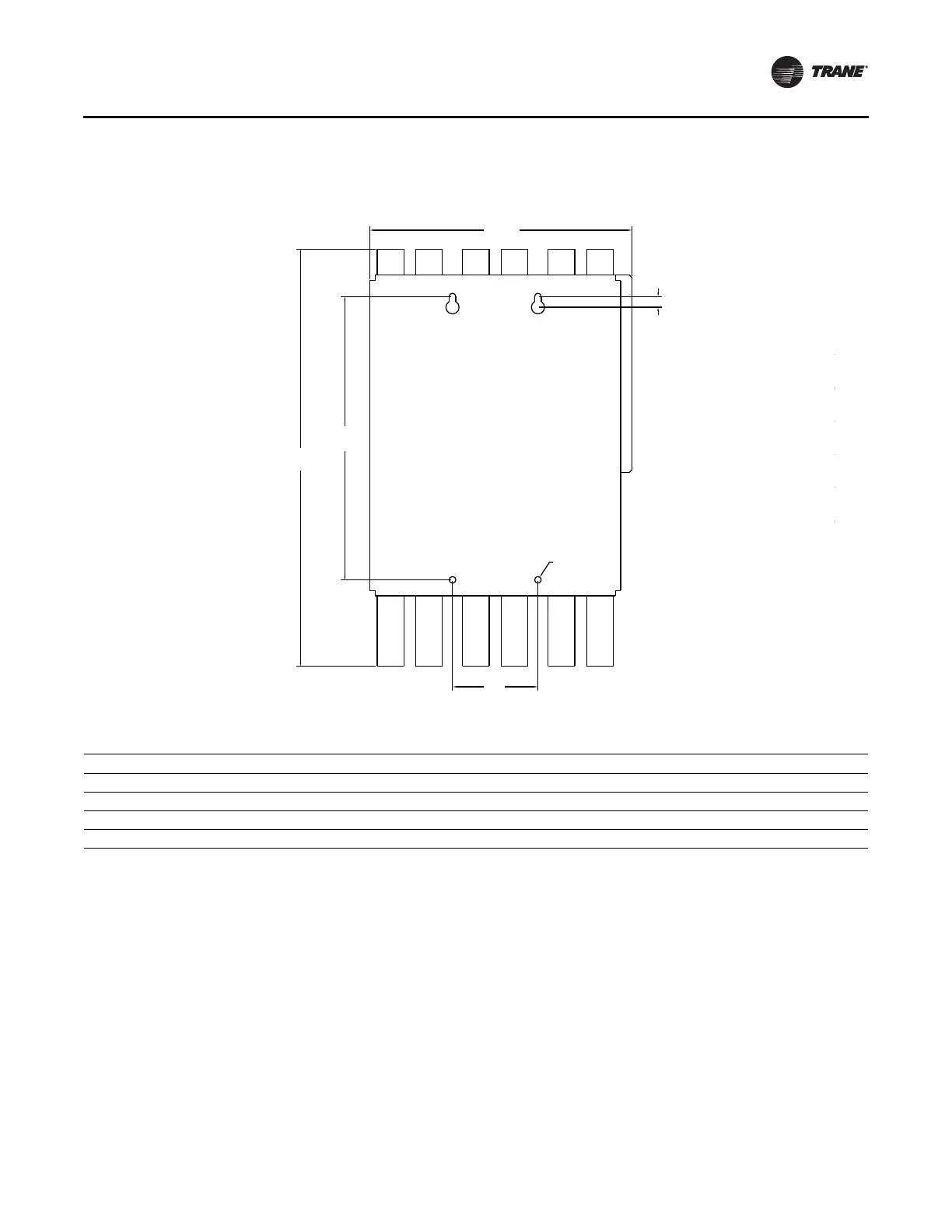

Figure 42. MX2 Dimensions
Table 6. MX2 dimensions - in (mm)
Model A B C D E F
RB2 125A 19.5 (495) 12.27 (312) 13.25 (337) 4 (101.6) 0.5 (12.7) 0.31 (7.9)
RB2 156-180A 21.25 (540) 12.27 (312) 15.25 (387) 4 (101.6) 0.5 (12.7) 0.31 (7.9)
RB2 180-302A 22.75 (578) 12.27 (312) 16.75 (425) 4 (101.6) 0.5 (12.7) 0.31 (7.9)
RB2 361A 23.87 (606) 13.09 (332) 18.63 (473) 4.31 (109) 0.5 (12.7) 0.31 (7.9)
g
Model
RB2 125A
RB2 156-180A
RB2 180-302A
RB2 361A
