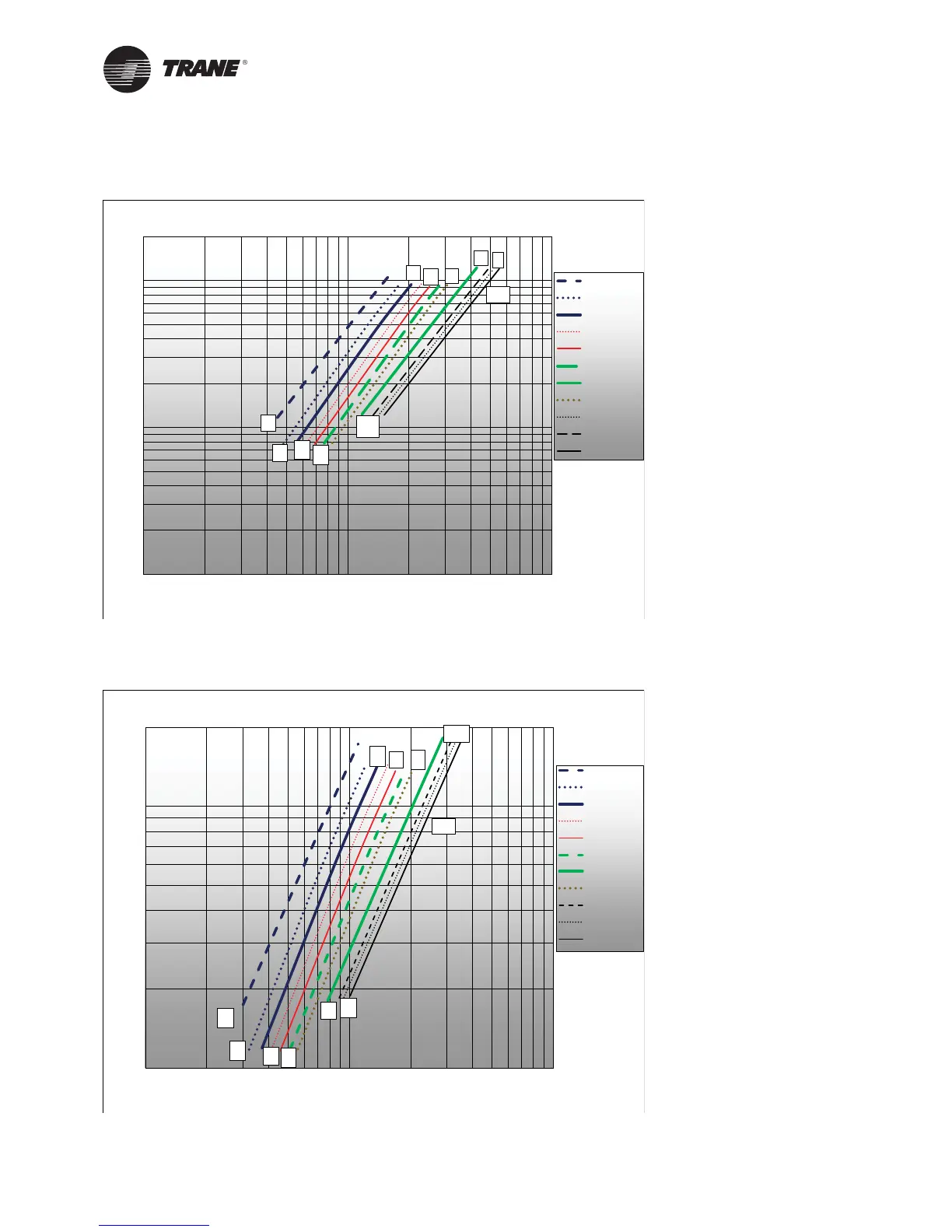

Figure 4 - 2 pass Evaporator Pressure Drop curves
1.0
10.0
100.0
1.0 10.0 100.0
Pressure Drop kPa
Water Flow l/s
Waterside Pressure Drop -50 Hz Units - 2 Pass Evaporator
1-E1AM2
2-E1AM1
3-E1AMJ
4-E2AM1-E2AM2
5-E2AMJ
6-E3AM2-E3AM3
7-E3AMJ-E4AMJ
8-E4AM1
9-E5AM1
10-E5AM2
11-E5AMJ
1
11
10
9
8
7
6
5
4
3
2
Select unit evaporator and limits according to General data table.
Figure 5 - 3 pass Evaporator Pressure Drop curves
10.0
100.0
1.0 10.0 100.0
Pressure Drop kPa
Water Flow l/s
Waterside Pressure Drop -50 Hz Units - 3 Pass Evaporator
1-E1AM2
2-E1AM1
3-E1AMJ
4-E2AM2
5-E2AMJ
6-E3AM2-
E3AM3
7-E3AMJ-E4AMJ
8-E4AM1
10-E5AM2
9-E5AM1
11-E5AMJ
1
9
10
11
8
7
6
5
4
3
2
Select unit evaporator and limits according to General data table.
Evaporator Piping

Trane RTWD Specifications

General

Model	RTWD
Refrigerant	R-134a
Compressor Type	Helical Rotary
Voltage	460V
Operating Range	Leaving chilled-water temperature: 40°F to 65°F
Voltage Options	575V
