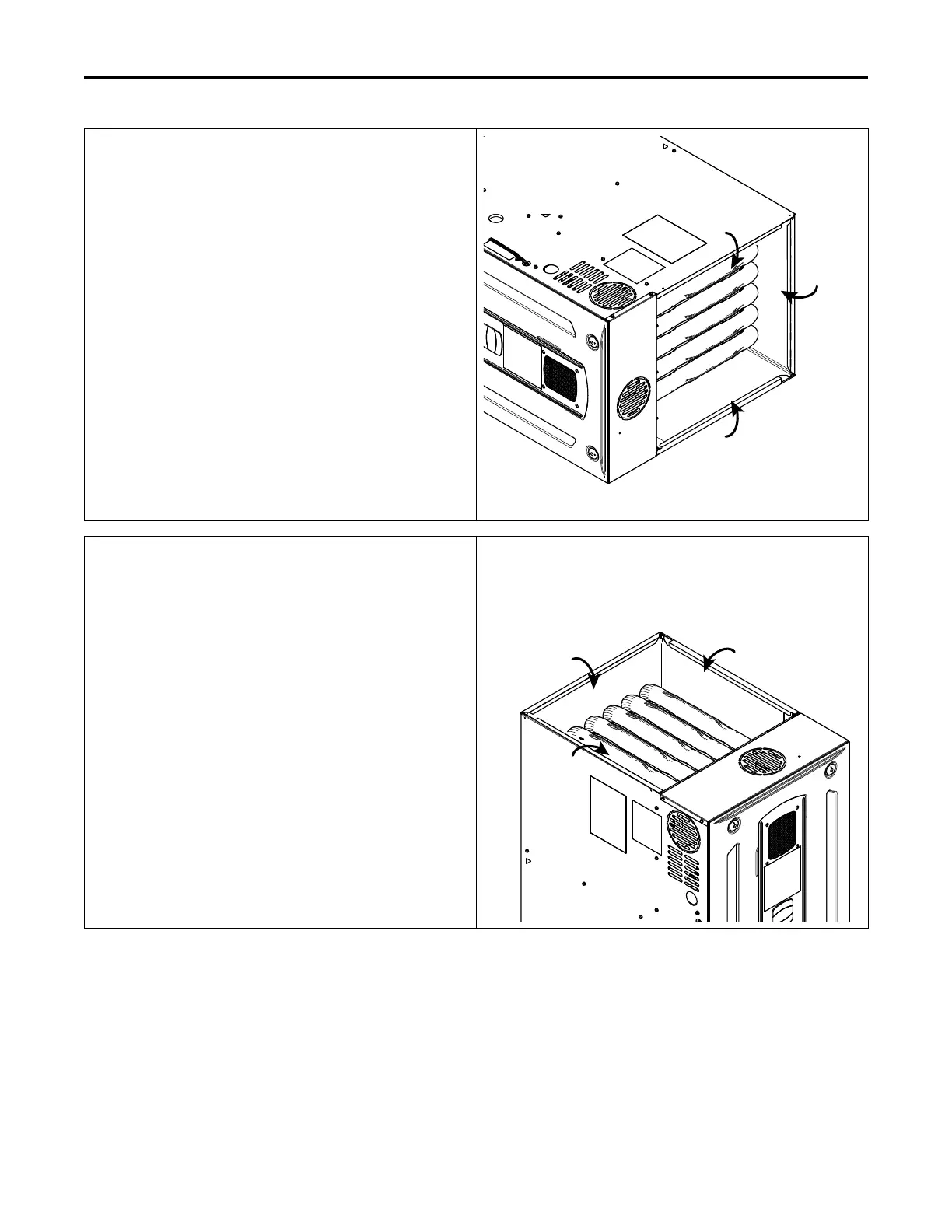

Furnace in Horizontal Right with “A” Coil
1. Bend furnace side flanges down.
2. Support the furnace and coil independently.
Note: Flat or dedicated horizontal coils may require flanges to be bent
upward.
Downflow Furnace with Coil
1. Bend furnace side flanges down.
2. Support the furnace and coil independently.
