34
S8XB-SVX001-1A-EN

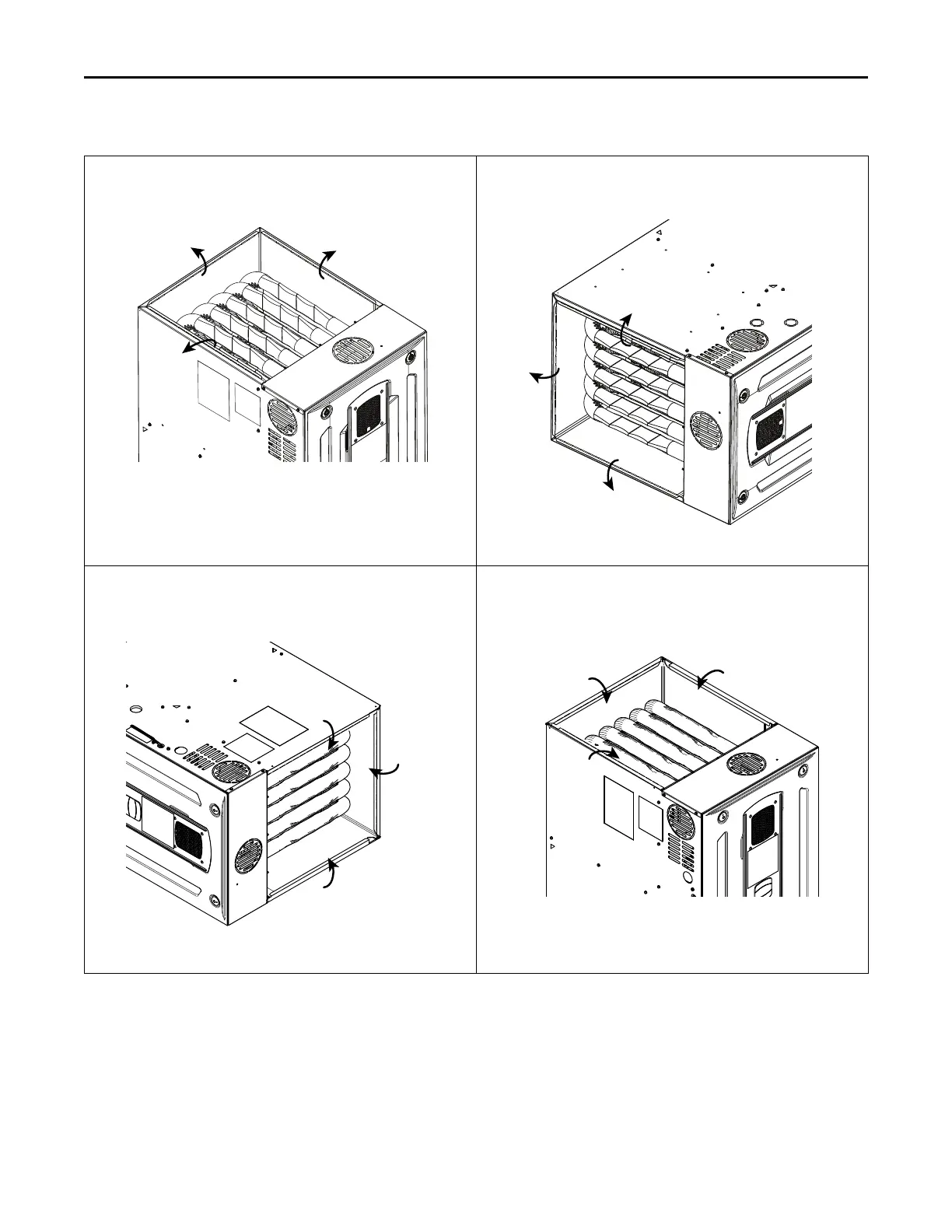

Table 6. Supply Duct Connections
Upflow Furnace with Coil
Note: There are no longer guide holes located on the furnace flange.
Refer to Step 1., Step 3., Step 5., Step 7.
Furnace in Horizontal Left with Coil
Note: There are no longer guide holes located on the furnace flange.
Refer to Step 1., Step 4., Step 5., Step 7.
Furnace in Horizontal Right with “A” Coil
Note: Flat or dedicated horizontal coils may require flanges to be bent
upward.
Refer to Step 2., Step 4.
Downflow Furnace with Coil
Refer to Step 2., Step 4.
FFuurrnnaaccee GGeenneerraall IInnssttaallllaattiioonn
