Table 8. Venting Options for Horizontal Left Applications

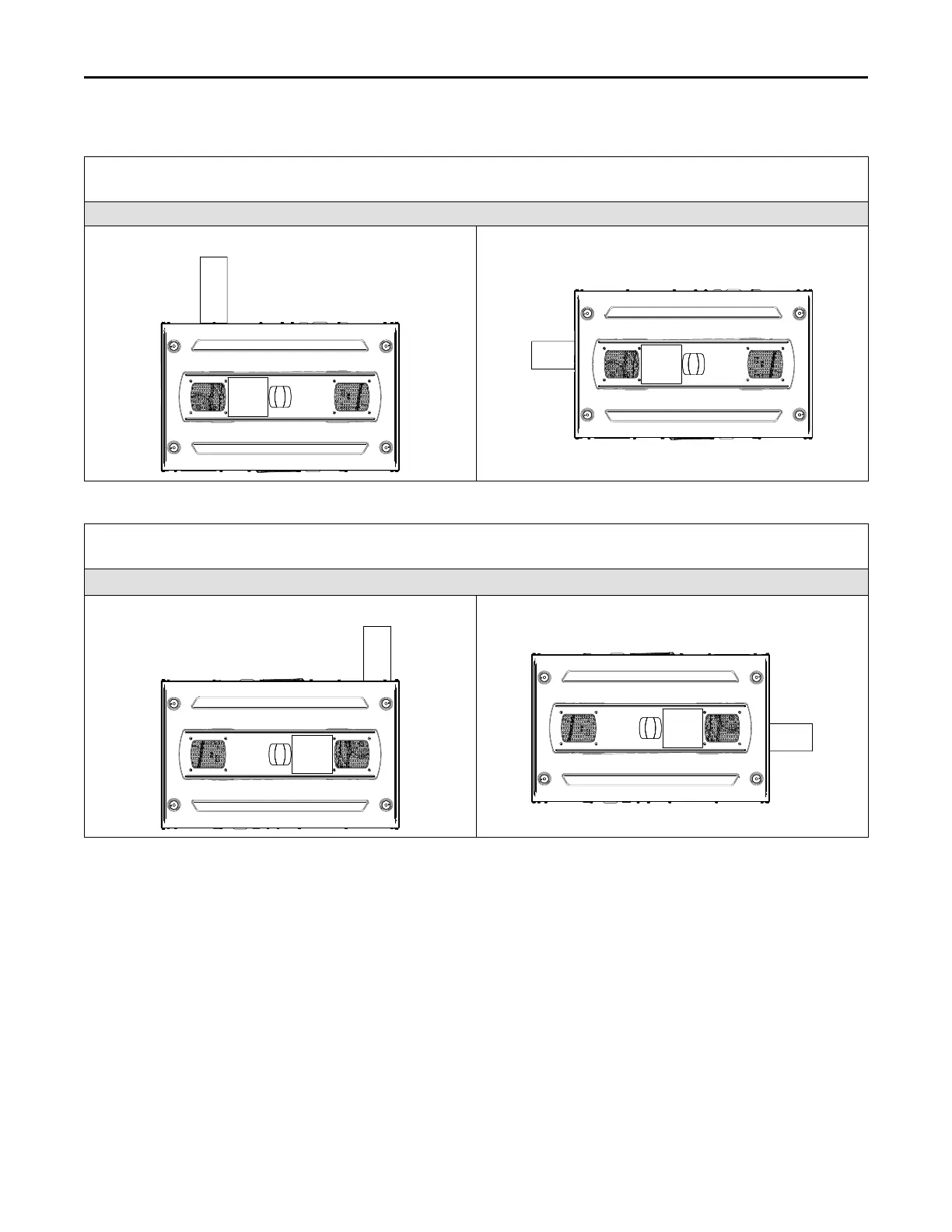

Refer to the illustrations below to find the approved venting options for horizontal left furnace.
Important: The exhaust must be vented to the outdoors.
Horizontal Left Orientation or Installation
Vented out top.
Vented through left side.
Table 9. Venting Options for Horizontal Right Applications
Refer to the illustrations below to find the approved venting options for horizontal right furnace.
Important: The exhaust must be vented to the outdoors.
Horizontal Right Orientation or Installation
Vented out top.
Vented through right side.
