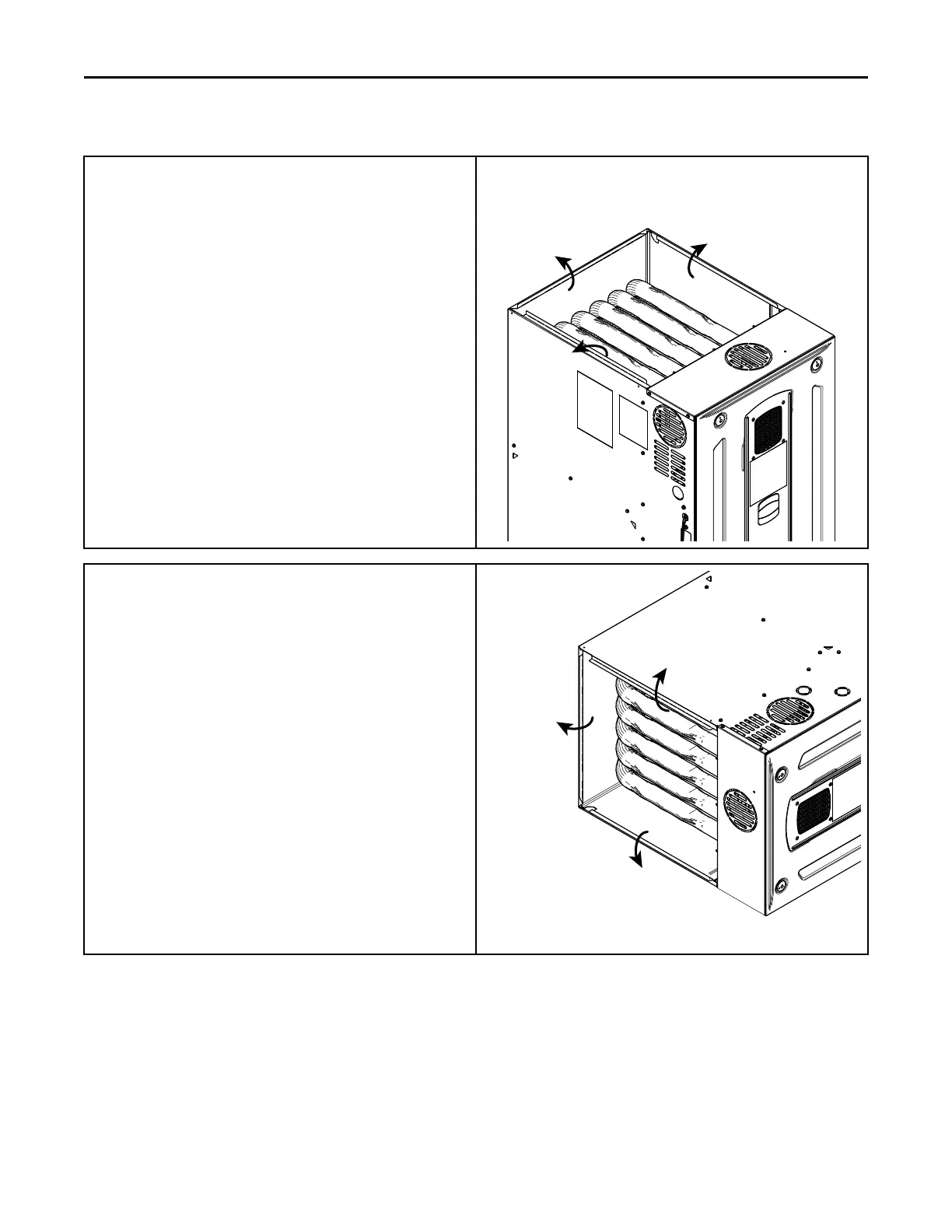

Table 6. Supply Duct Connections
Upflow Furnace with Coil
1. Bend furnace flanges up.
2. Set the coil on top of the furnace.
3. Screw through the coil cabinet into the furnace flange. Guide
holes are located on the coil.
Note: There are no longer guide holes located on the furnace flange.
4. Seal per local codes and requirements.
Furnace in Horizontal Left with Coil
1. Bend furnace flanges up.
2. Support the furnace and coil independently.
3. Screw through the coil cabinet into the furnace flange. Guide
holes are located on the coil.
Note: There are no longer guide holes located on the furnace flange.
4. Seal per local codes and requirements.
FFuurrnnaaccee GGeenneerraall IInnssttaallllaattiioonn

Trane S8X1 Series Specifications

General

Blower Motor	Multi-speed
Ignition System	Hot Surface Ignition
Fuel Type	Natural Gas or Propane
Heating Stages	Single-stage
Warranty	20-Year heat exchanger warranty, 5-Year parts warranty (with registration, warranty extends to 10-year parts warranty)
