Trane S8X1 Series User Manual

30
18-CE04D1-1B-EN

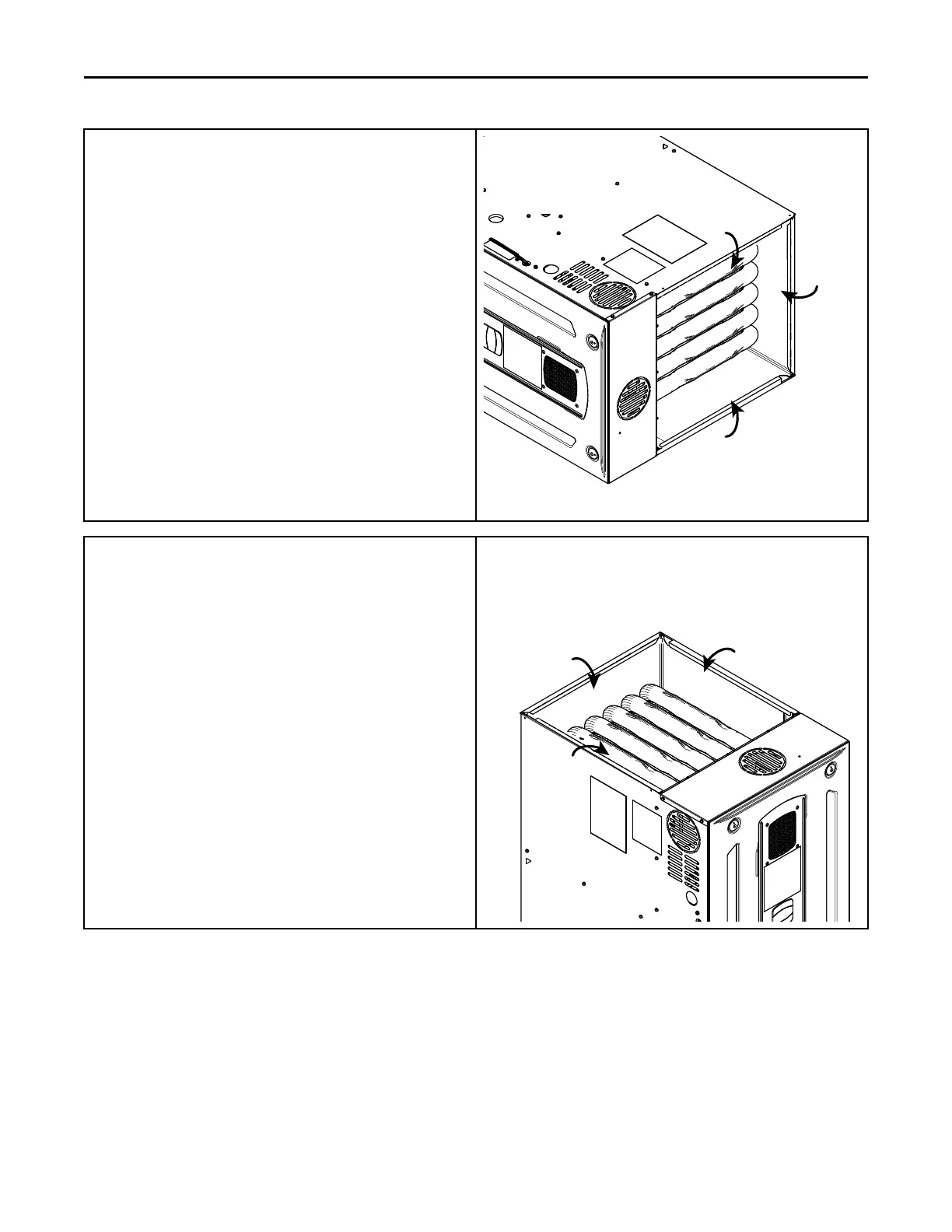

Furnace in Horizontal Right with “A” Coil
1. Bend furnace flanges down.
2. Support the furnace and coil independently.
3. Match the coil up flush to the back of the furnace.
4. Seal per local codes and requirements.
Note: Flat or dedicated horizontal coils may require flanges to be bent
upward.
Downflow Furnace with Coil
1. Bend furnace flanges down.
2. Set the furnace on top of the coil so that it is flush with the back of
the furnace.
3. Seal per local codes and requirements.
FFuurrnnaaccee GGeenneerraall IInnssttaallllaattiioonn

Trane S8X1 Series Specifications

General

Blower Motor	Multi-speed
Ignition System	Hot Surface Ignition
Fuel Type	Natural Gas or Propane
Heating Stages	Single-stage
Warranty	20-Year heat exchanger warranty, 5-Year parts warranty (with registration, warranty extends to 10-year parts warranty)
