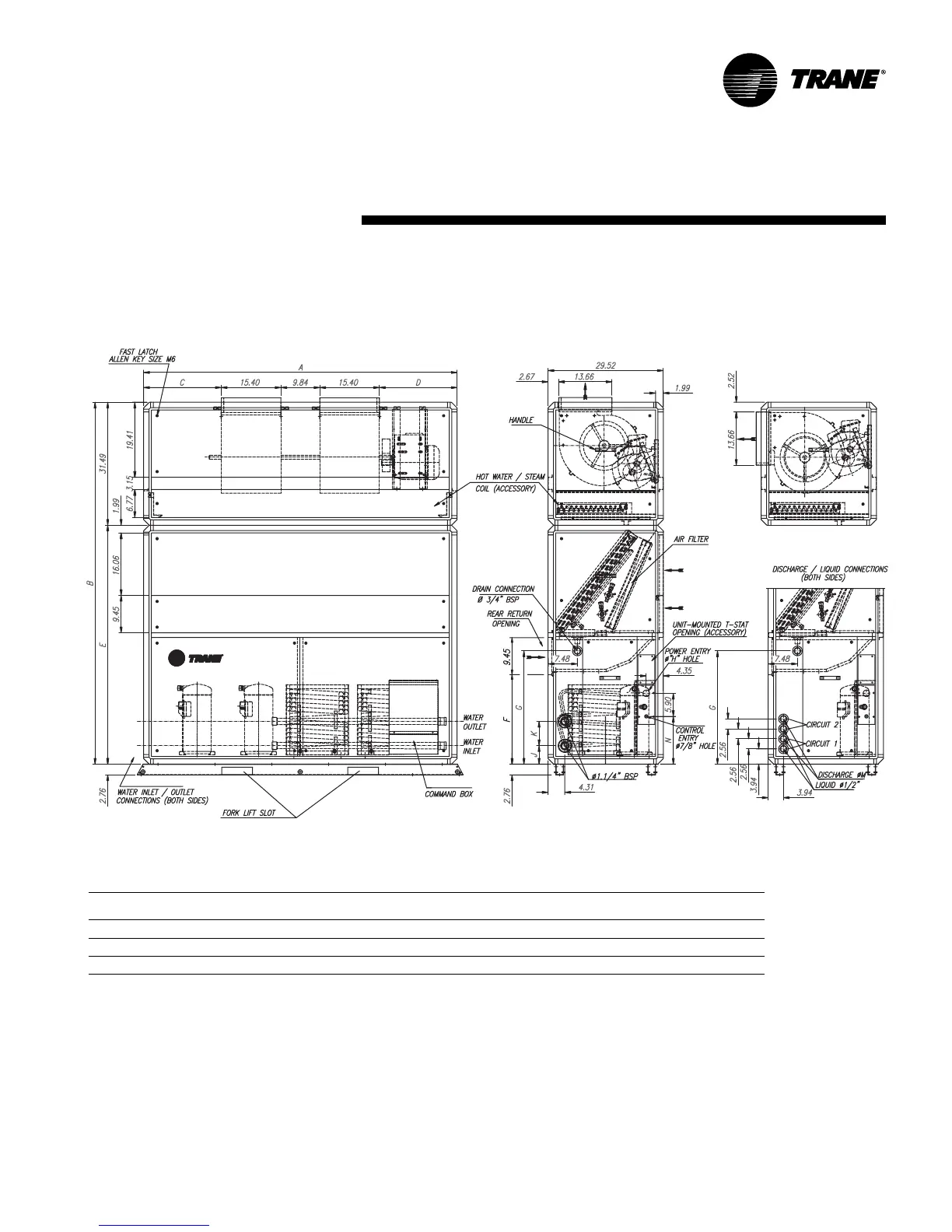

Trane SCRH - Dimensions and Weights (10-15 Tons - Top Fan); Unit Dimensions and Weights (10-15 Tons - Top Fan)

PKG-SVX14A-EN 13
dimensions &
weightsInstallation
10, 12, & 15-tons with top-mounted fan configuration
SCWH/SCRH
horizontal discharge
(field converted)
vertical discharge
SCRH
SCWH
SCWH/SCRH dimensions & weight, in-lbs.
unit shipping operating
tons A B C D E F G J K M N weight weight
10 66.75 88.78 7.04 18.07 57.28 19.01 25.0 5.23 7.48
5
/
8
8.30 984 917
12 65.75 92.71 7.04 18.07 61.22 22.95 29.01 5.23 7.48
5
/
8
12.24 977 907
15 80.31 92.71 19.83 19.83 61.22 22.95 29.01 4.76 5.12
3
/
4
12.24 1098 1021
