Trane SCRH - Dimensions and Weights (10-15 Tons - Side Fan); Unit Dimensions and Weights (10-15 Tons - Side Fan)

14 PKG-SVX14A-EN
10, 12, & 15-tons with side-mounted fan configuration, field converted
SCWH/SCRH

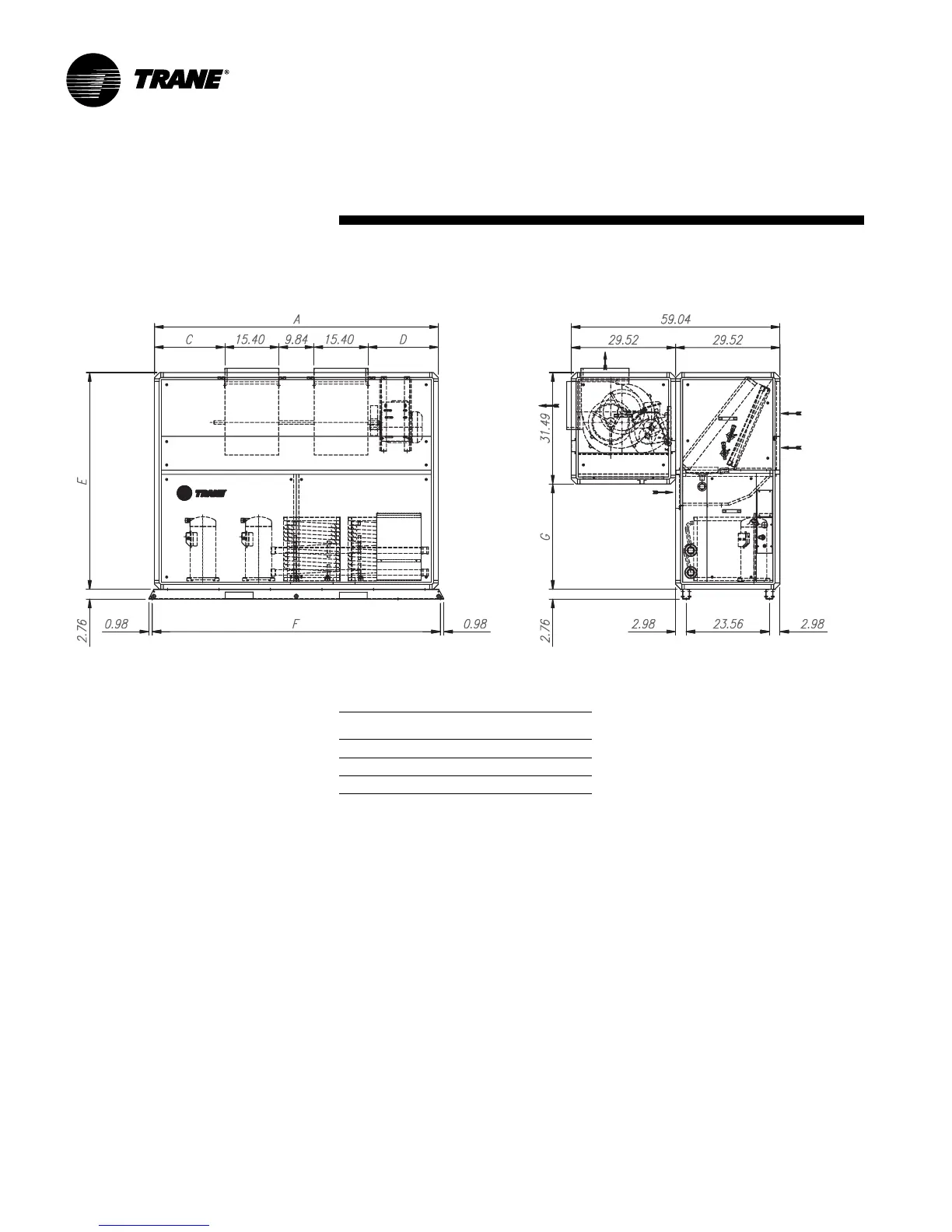

SCWH/SCRH Dimensions, in.
unit
tons A C D E F G
10 65.75 7.04 18.07 57.28 66.93 25.79
12 65.75 7.04 18.07 61.22 66.93 29.73
15 80.31 19.83 19.83 61.22 81.49 29.73
Notes:
1. Base rail must be attached to the floor before converting
unit to side-mounted fan configuration.
2. Coil or electric heater cannot be assembed inside the
cabinet with the side-mounted fan configuration.
