If supporting the base pan from the perimeter, the support must extend under the base pan at least 2”. Trane recommends
supporting the middle of the base pan with a cross member.
support must extend 2” from the basepan perimeter
support center of unit
Pg 7

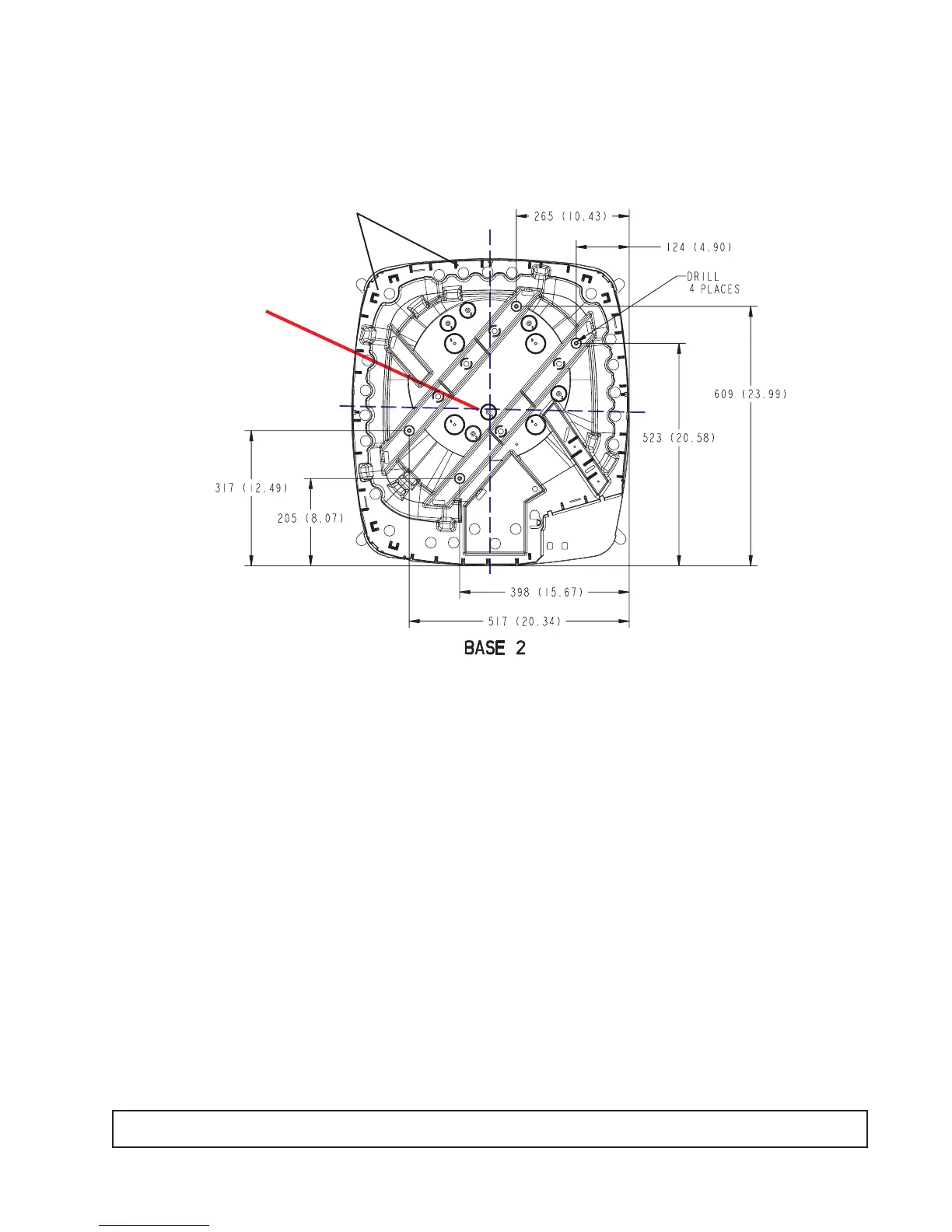

BASE PAN MOUNTING HOLE LOCATIONS
( location only, holes must be drilled )
