Unit Dimensions
16 RT-SVX22M-EN

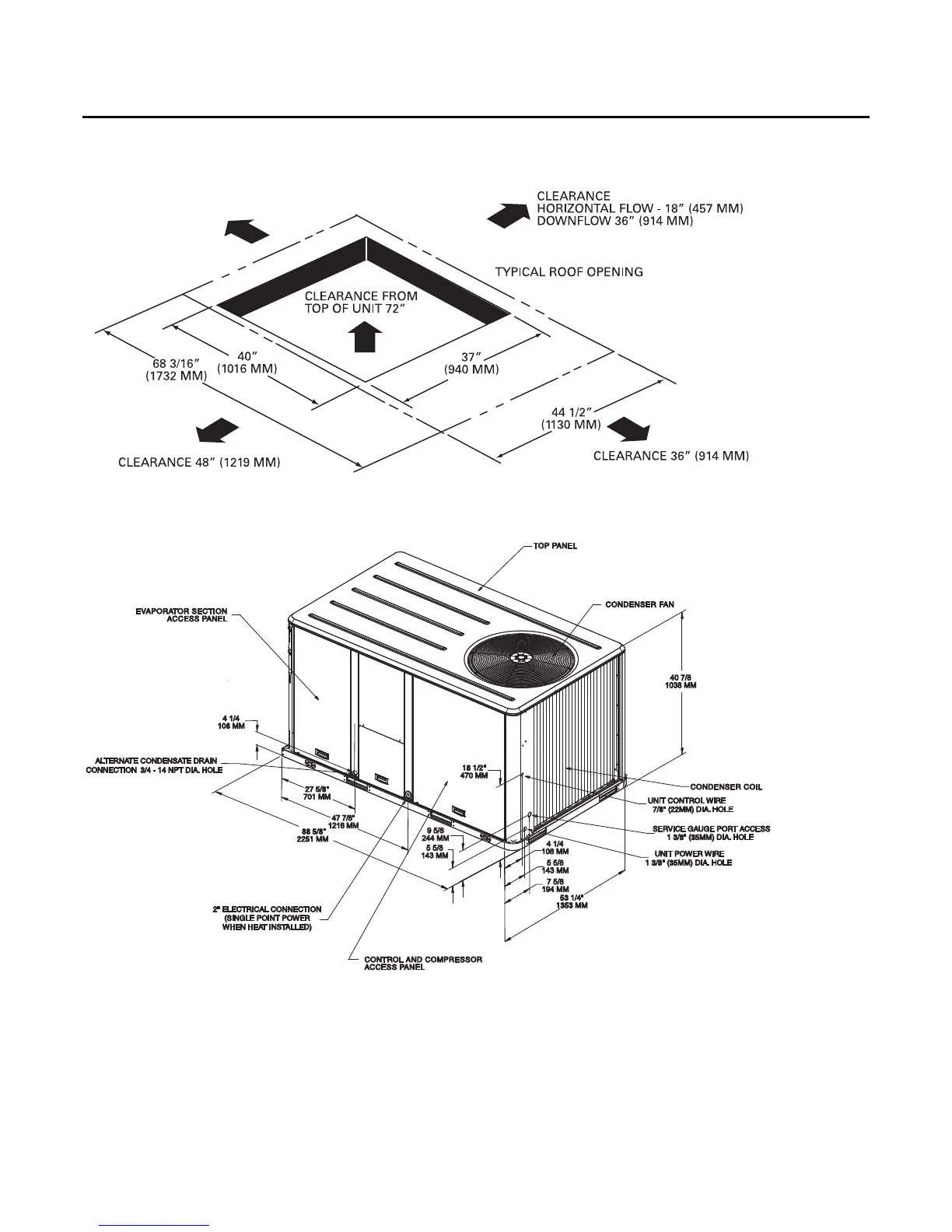

Figure 4. 3-5 ton standard efficiency, 3 ton high efficiency - unit clearance and roof opening
Note: All dimensions are in inches/millimeters.
CLEARANCE 36” (914 MM)
Figure 5. 6, 7½ (single) ton standard efficiency,4-5tonhigh efficiency
Note: All dimensions are in inches/millimeters.
