Free Cooling Application
RLC-SVU02F-E432

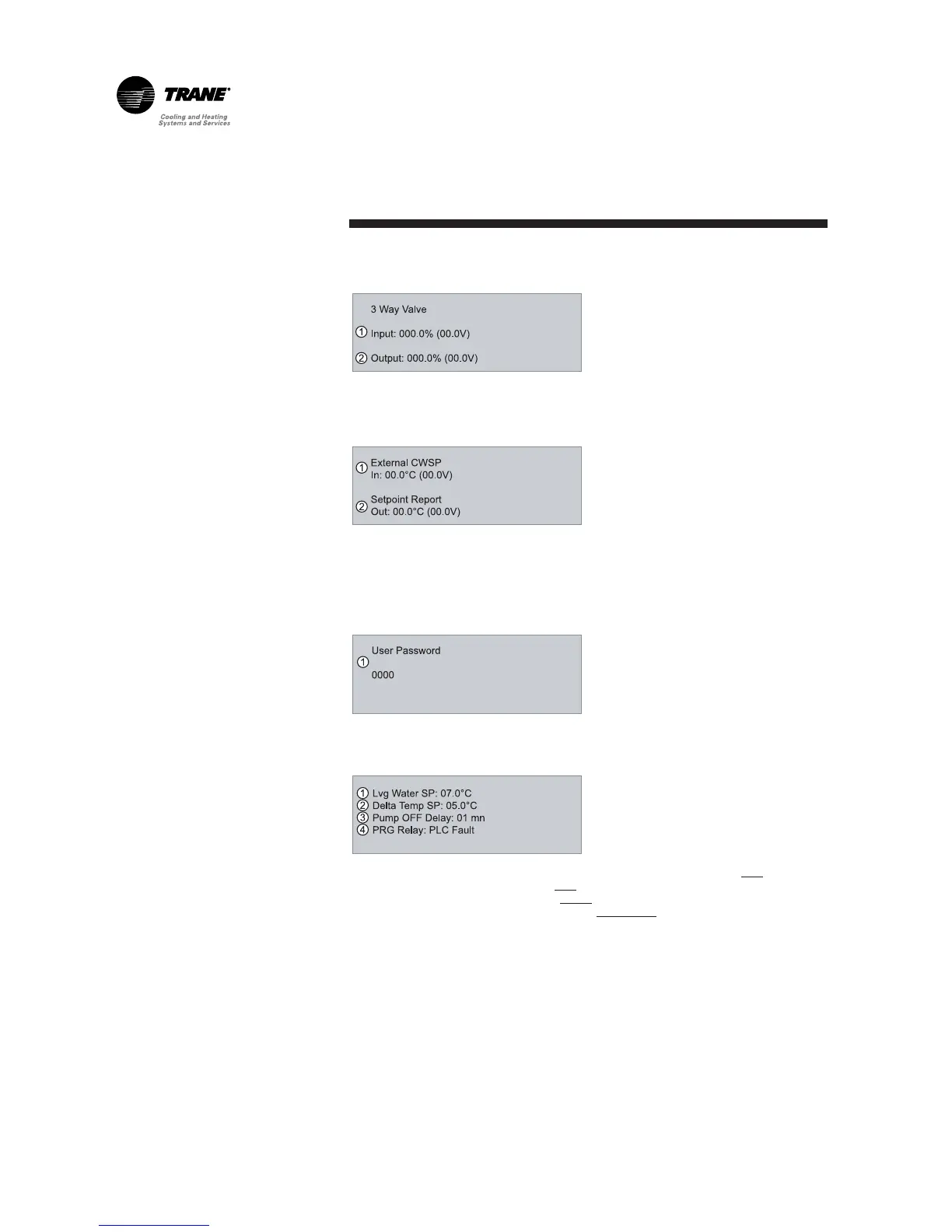

3 Way Valve IO
1 = 3WV Input Position (Value and Input Analog Voltage)
2 = 3WV Output Position (Value and Output Analog Voltage)
Chilled Water Setpoint IO
1 = External Chilled Water Setpoint (Value and Input Analog Voltage)
2 = Adjusted Water Setpoint Output (Value and Output Analog Voltage)
Settings Menu
Access to each field within a mask using the
Enter
key. Change the field
value using the
Up
and
Down
keys and confirmation by
Enter
.
1 = Access via password, 0000 to 9999
User Settings
1 = Leaving Water Temp SP (-17.8°C (or LAW+2.8°C)..15°C (or HCWSP): 7°C)
2 = Chiller Delta Temp SP (2°C..10°C: 5°C)
3 = Pump OFF Delay Timer (0..30min: 1min)
4 = Programmable Relay Function (PLC ON, PLC Fault, FC ON)
To Next Page
