UH-SVX01A-EN 17
Installation
Notes: To meet OSHA requirements, units mounted lower than 8 feet from the floor must be equipped with an OSHA fan guard.

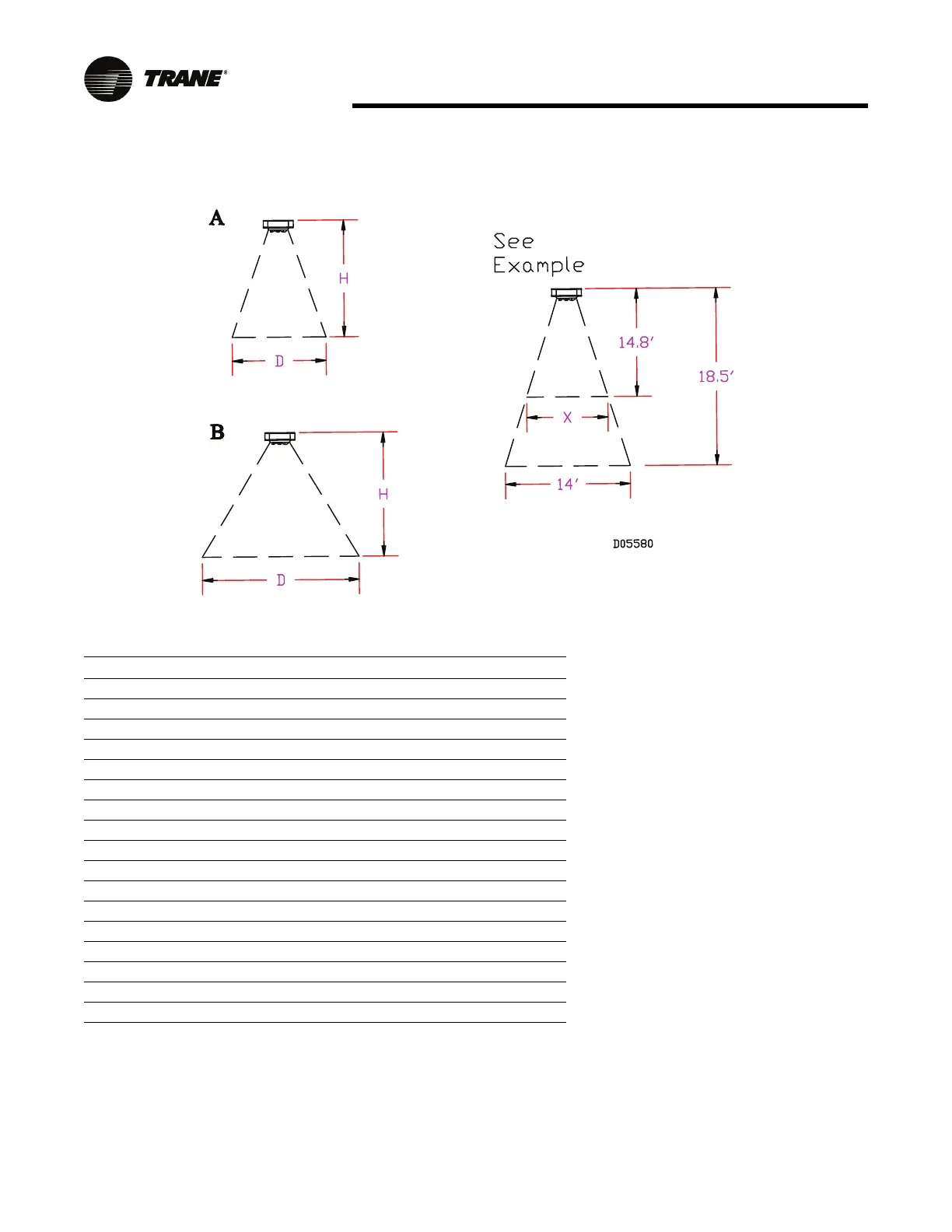

Figure 15.
Table 7. Mounting Height Correction Factors
Water °F 150 160 170 180 190 200
Temperature (°C) (66) (71) (77) (82) (88) (93)
Steam PSI - - - - - -
Pressure (kPa) - - - - - -
Correction Factor 1.32 1.27 1.23 1.18 1.14 1.09
Water °F 210 219 227 239 250 259
Temperature (°C) (99) (104) (108) (115) (121) (126)
Steam PSI - 2 5 10 15 20
Pressure (kPa) - (13.8) (34.5) (68.9) (103.4) (137.9)
Correction Factor 1.05 1.00 0.97 0.94 0.89 0.86
Water °F 267 280 287 298 307 320
Temperature (°C) (131) (138) (142) (148) (153) (160)
Steam PSI 25 35 40 50 60 75
Pressure (kPa) (172.4) (241.3) (275.8) (344.7) (413.6) (517.1)
Correction Factor 0.83 0.80 0.76 0.73 0.70 0.69
