Electrical Connections

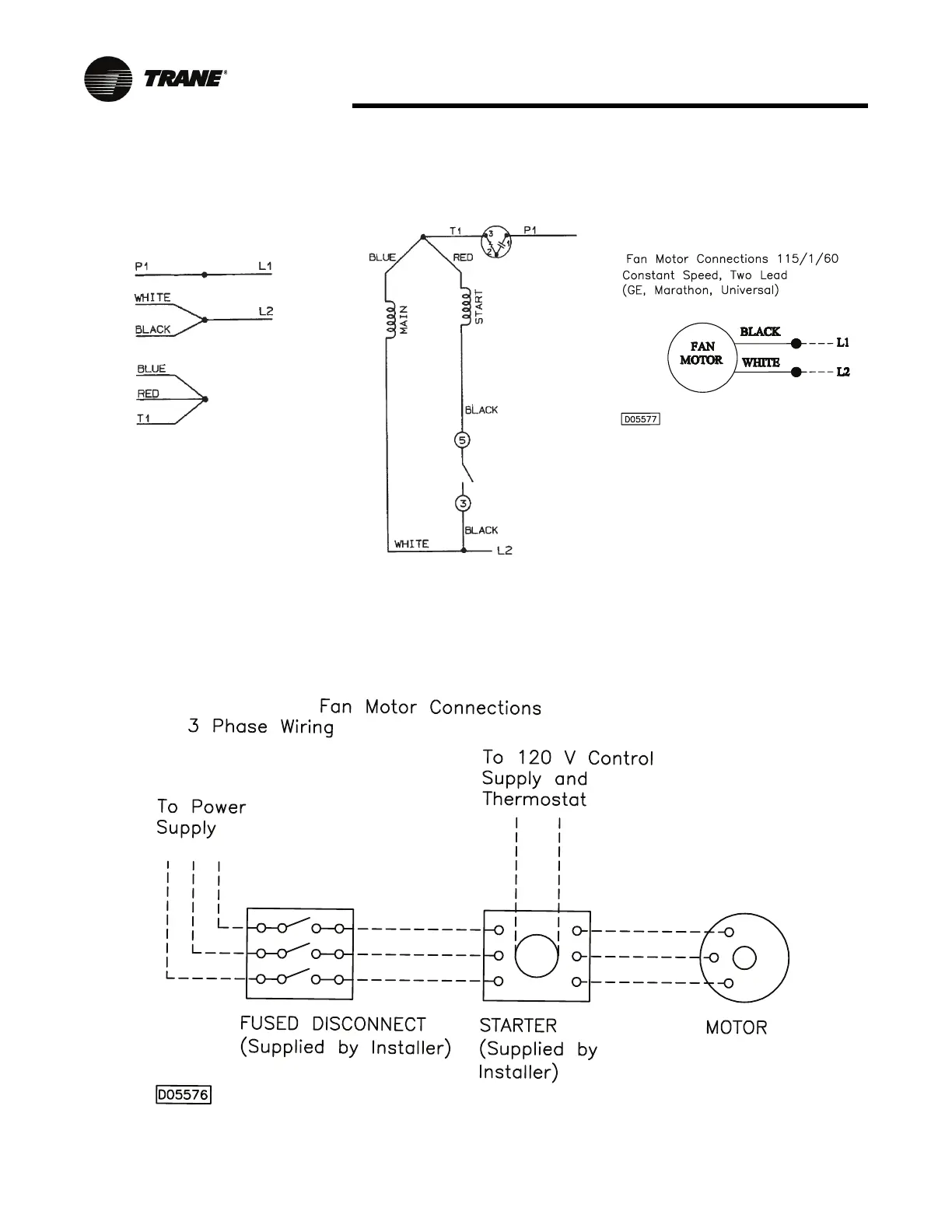

Figure 32. Fan Motor Connections
Low Voltage with Protector Select
Rotation (CCW shown)(Marathon)
For CW Rotation Interchange (Red
and black lead)
Figure 33.
Figure 34. Fan Motor Connections
Low Voltage CCW Internal
(Marathon)
Figure 35. Fan Motor Connections
115/1/60 Constant Speed, Two Lead
(GE, Marathon, Universal)
