Installation
13UNT-SVX10G-E4
Adjusting the 60-130 m
3
/h airflow
controller
WARNING! Ensure that the plastic
membrane is always positioned as
indicated in Figure 4.
Adjust the fresh air controller (ø
125 mm only) by placing the two
plastic restrictors as indicated in
Figure 5.

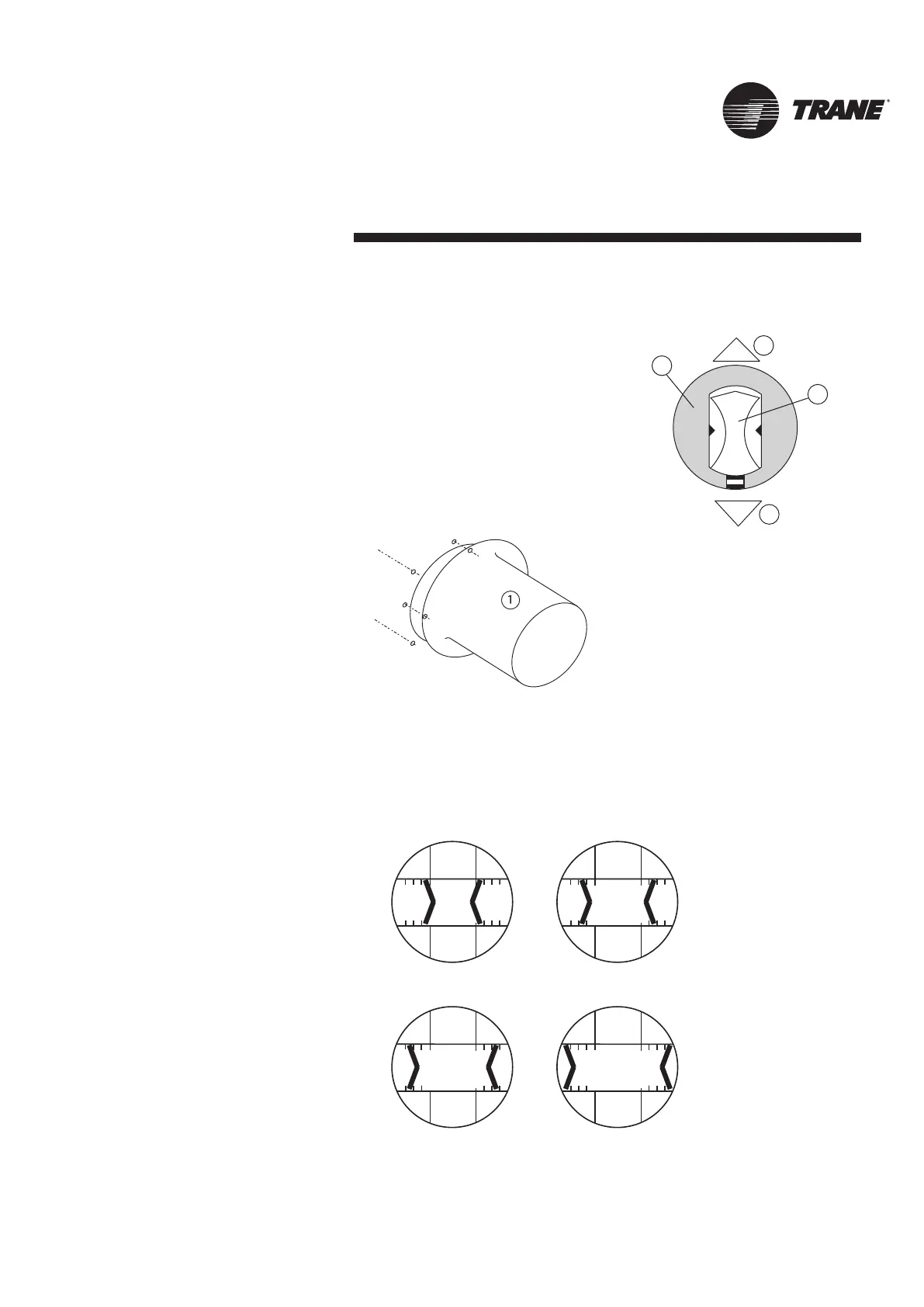

Figure 3 - Fresh air adapter
1 = Fresh air controller
Figure 4 - Fresh air controller membrane
1 = Fresh air controller
2 = Membrane
3 = Top
4 = Bottom
Figure 5 - Position of restrictors on the 60 to 130 m
3
/h fresh air controller
60 m3/h 75 m3/h
90 m3/h 130 m3/h
UNT-SVX10G-BAT1_Mise en page 1 7/26/2013 2:41 PM Page 13
