Trane UniTrane FCD 721 - Water Pressure Drop Curves

Installation
49UNT-SVX10G-E4
Water pressure drop curves

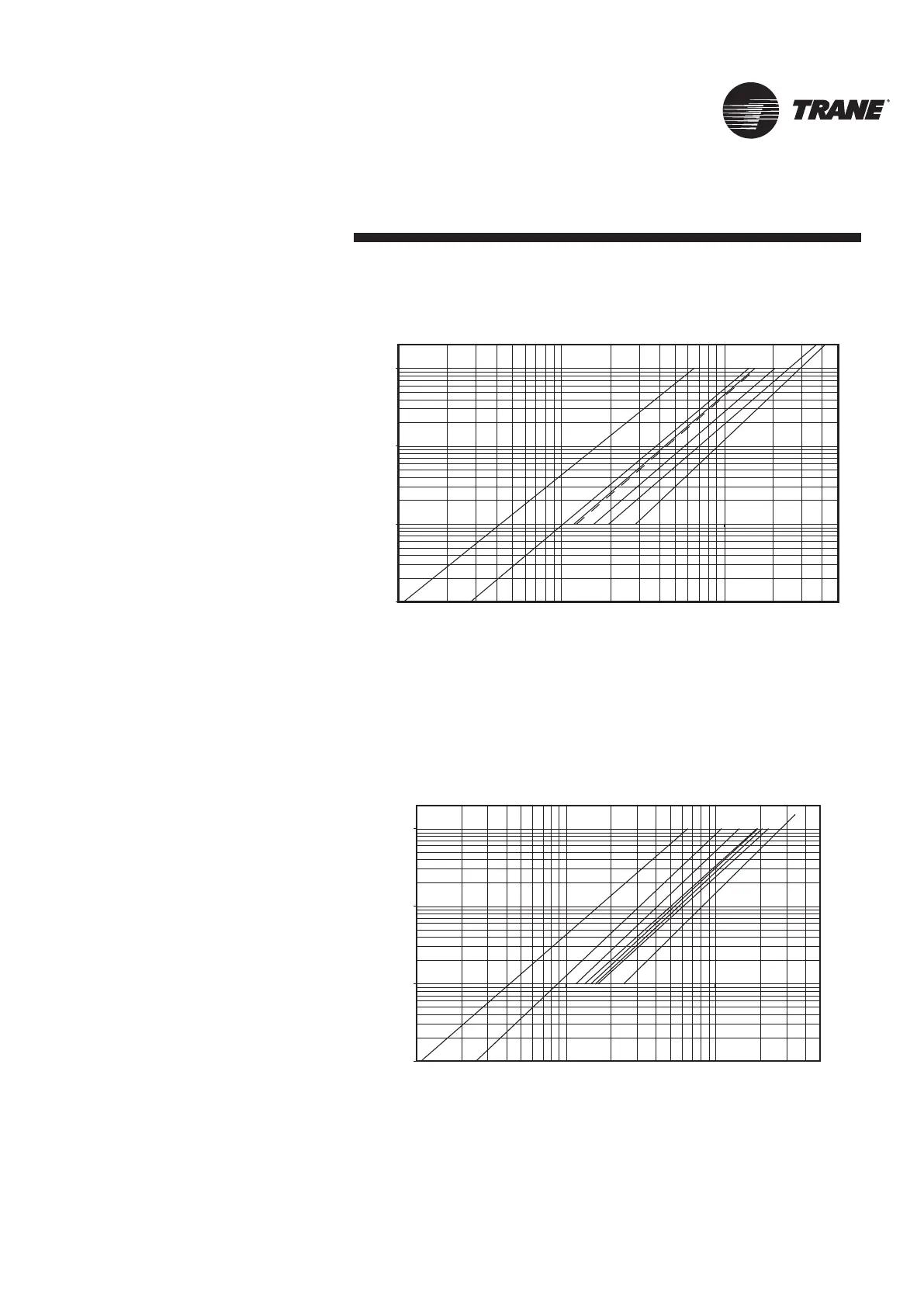

Figure 50 - Water pressure drop through the coils - Cooling mode, Standard 2-pipe coil
1 = FCD Size 101-103 / FED 100 5 = Size 508-512 / FED 500
2 = FCD Size 203-204 / FED 200 6 = Size 612 / FED 600
3 = FCD Size 304-306 / FED 300 7 = Size 721
4 = FCD Size 406-408 / FED 400
Figure 51 - Water pressure drop through the coils - Cooling mode, High capacity
2-pipe coil
1 = FCD Size 101-103 / FED 100 5 = FCD Size 406-408 / FED 400
2 = Size 203 6 = Size 508-512 / FED 500
3 = FCD Size 204 / FED 200 7 = Size 612 / FED 600
4 = FCD Size 304-306 / FED 300 8 = Size 721
