Trane UniTrane FCD 721 User Manual

Figure 7 - Hole locations
Table 5 - Drilling distances
(1) If the threaded rod diameter is smaller than 6 mm, use a washer.
Number of
suspension points
ABCDØ hole
Ø threaded
rods (1)
Unit size (mm) (mm) (mm) (mm) (mm) (mm)
FCD 101-103
FED 100
3/4 478 463 585.4 338 15.1 6
FCD 203-204
FED 200
3/4 628 463 713.2 338 15.1 6
FCD 304-306
FED 300
3/4 858 463 922.2 338 15.1 6
FCD 406-408
FED 400
3/4 1008 463 1063.2 338 15.1 6
FCD 101-103
FED 100
3/4 478 579 713.2 338 15.1 6
FCD 203-204
FED 200
3/4 628 579 713.2 338 15.1 6
FCD 304-306
FED 300
3/4 858 579 922.2 338 15.1 6
FCD 406-408
FED 400
3/4 1008 579 1063.2 338 15.1 6
FCD 304-306 High
capacity
FED 300 High capacity
4 858 637 1068.5 15.1 6
FCD 406-408 High
capacity
FED 400 High capacity
4 1008 637 1192.5 15.1 6
FCD 508-512-FED 500 4 1158 637 1321.5 15.1 6
FCD 612-FED 600 4 1458 637 1591 15.1 6
FCD 721 4 1458 729 1630 15.1 6
C
D
B
A
Installation
15UNT-SVX10G-E4
ø 160
250mm
ø 200
Without air duct
connection
With air duct
connection
With or without air
duct connection

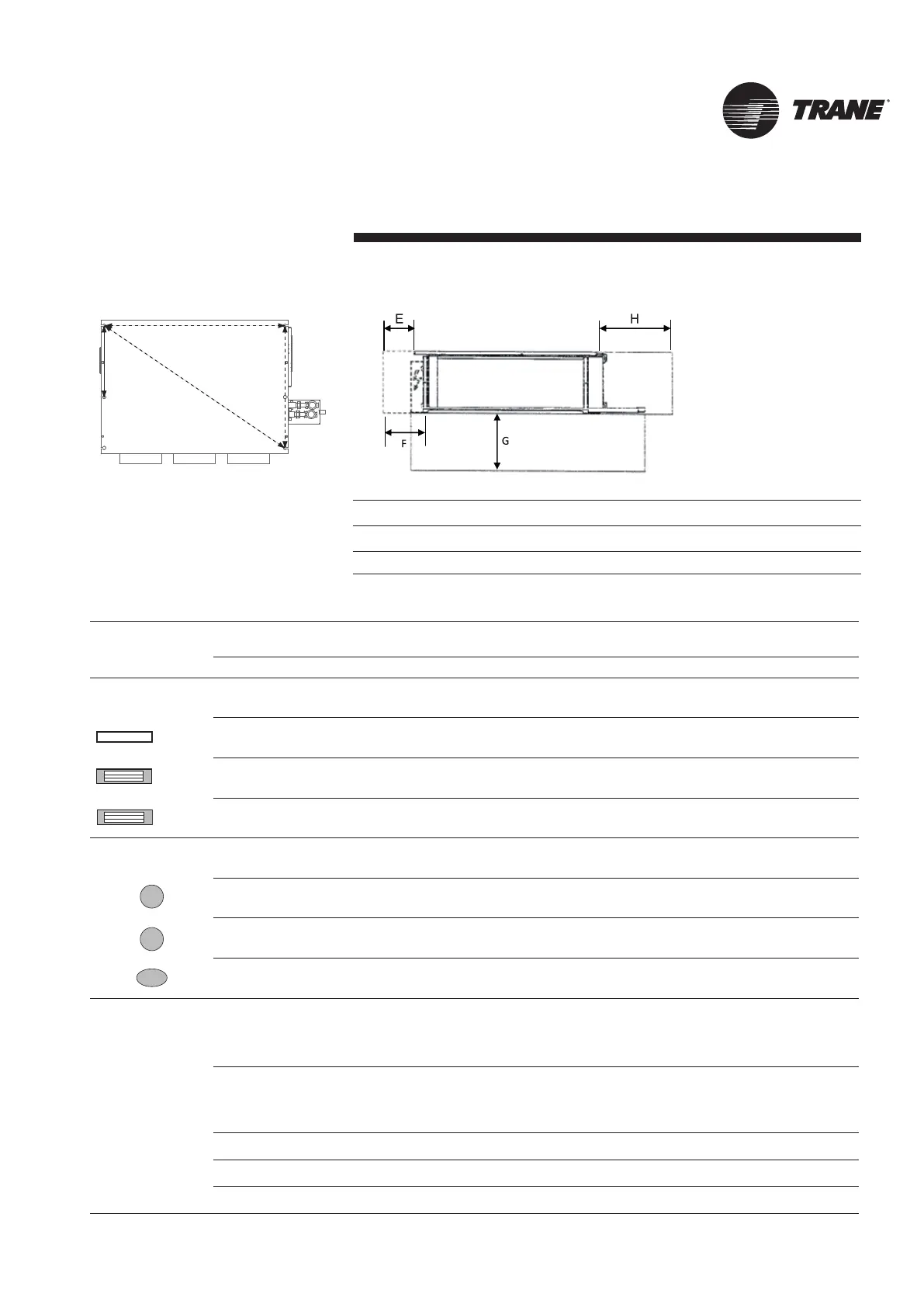

Figure 8 - Clearance recommendations
E
(mm)
F
(mm)
G
(mm)
H
(mm)
F
CD 101-103-203-204-304-306-406-408-508-512-612
FED 100-200-300-400-500-600
141 143 210 276
FCD 721 141 143 255 253
UNT-SVX10G-BAT1_Mise en page 1 7/26/2013 2:41 PM Page 15
