Trane UniTrane FCD 721 - Page 47

Installation
47UNT-SVX10G-E4

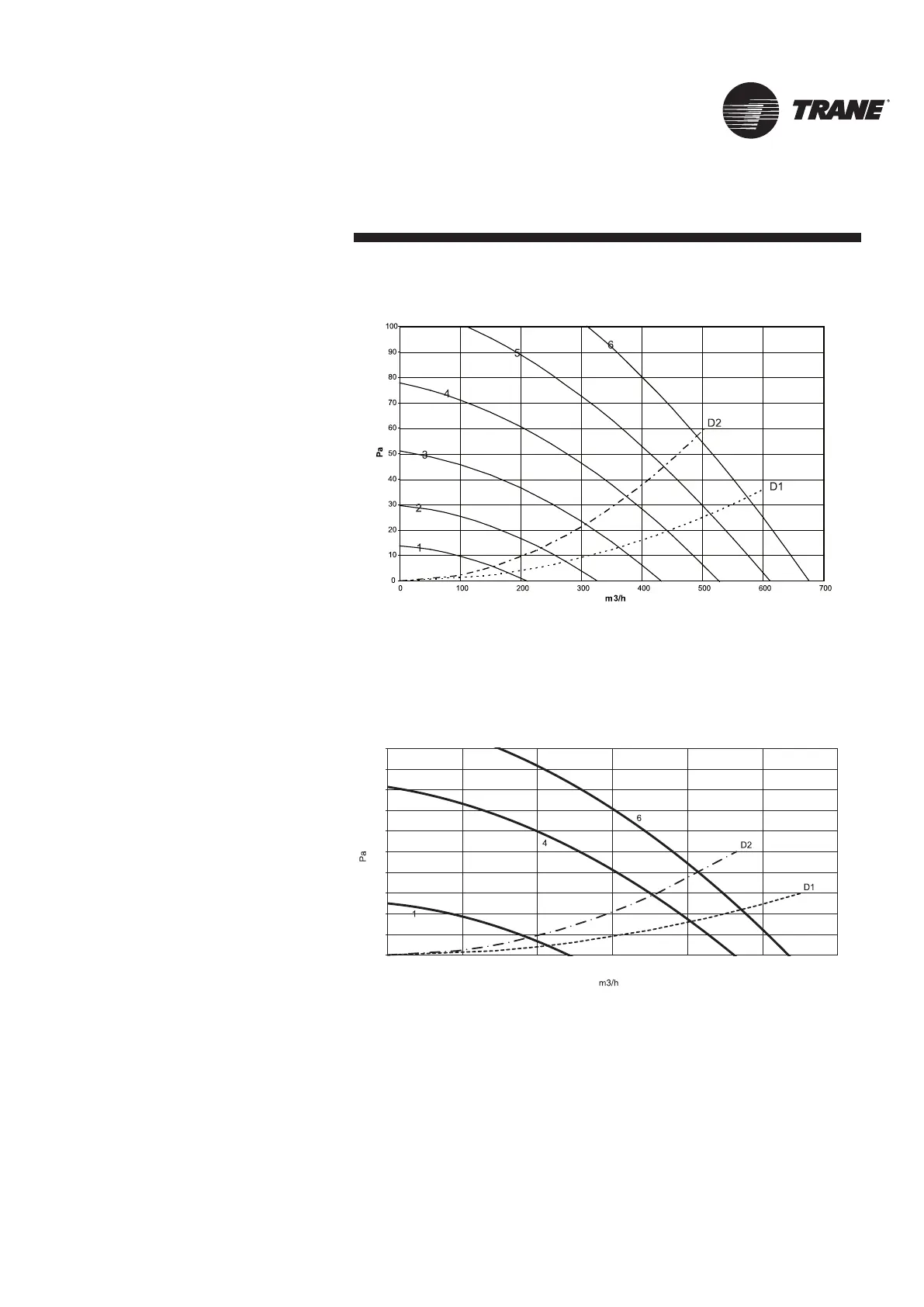

Figure 46 - External Static Pressure - FED 300
D1 = Discharge plenum only, ø200 mm air duct connection(s)
D2 = Discharge plenum + return plenum, ø200 mm air duct connections(s)
Figure 47 - External Static Pressure - FED 400
D1 = Discharge plenum only, ø200 mm air duct connection(s)
D2 = Discharge plenum + return plenum, ø200 mm air duct connections(s)
