VariTrac Installation
Question: How large a hole is required in the supply duct to insert the supply temperature
and static pressure sensor? ______________________.
Question: What is the maximum distance between the bypass damper actuator and
communicating sensor/ bypass assembly if using the cable shipped with the bypass damper
actuator unit? ______________.

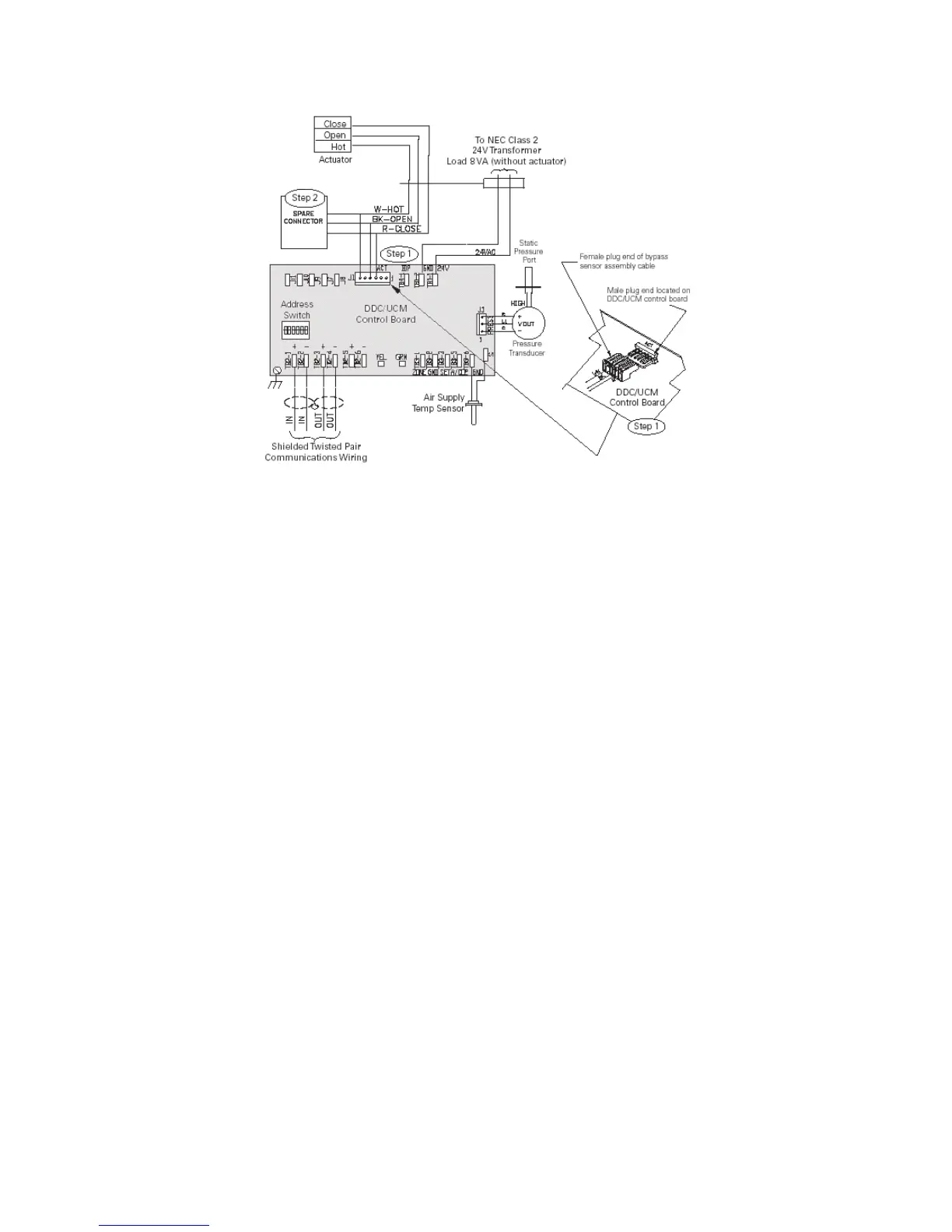

Install VariTrac Central Control Panel
Reference: VariTrac Installation Manual (VAV-SVN03A-EN), page 17
10. Remove the Display and Main modules from the termination module to gain access to the
termination board wiring.
