VariTrac Installation

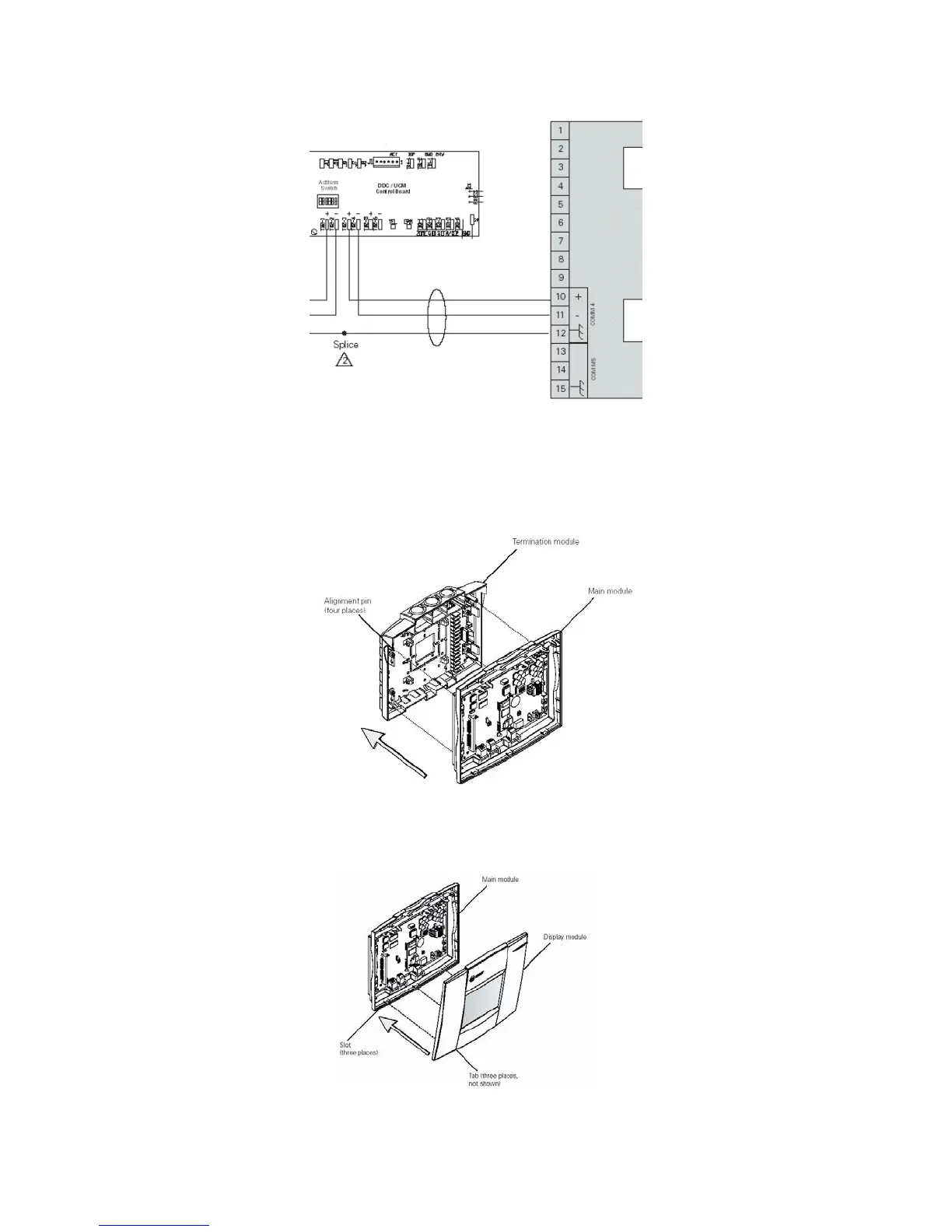

13. Verify that 24 Vac power, and Comm4 link are correctly terminated at the VariTrac
termination board.
14. Install Main logic board onto the VariTrac termination board module.
15. Install the VariTrac operator display module onto the main module.
03- VariTrac Installation Workshop.doc 3-7
