Page 3

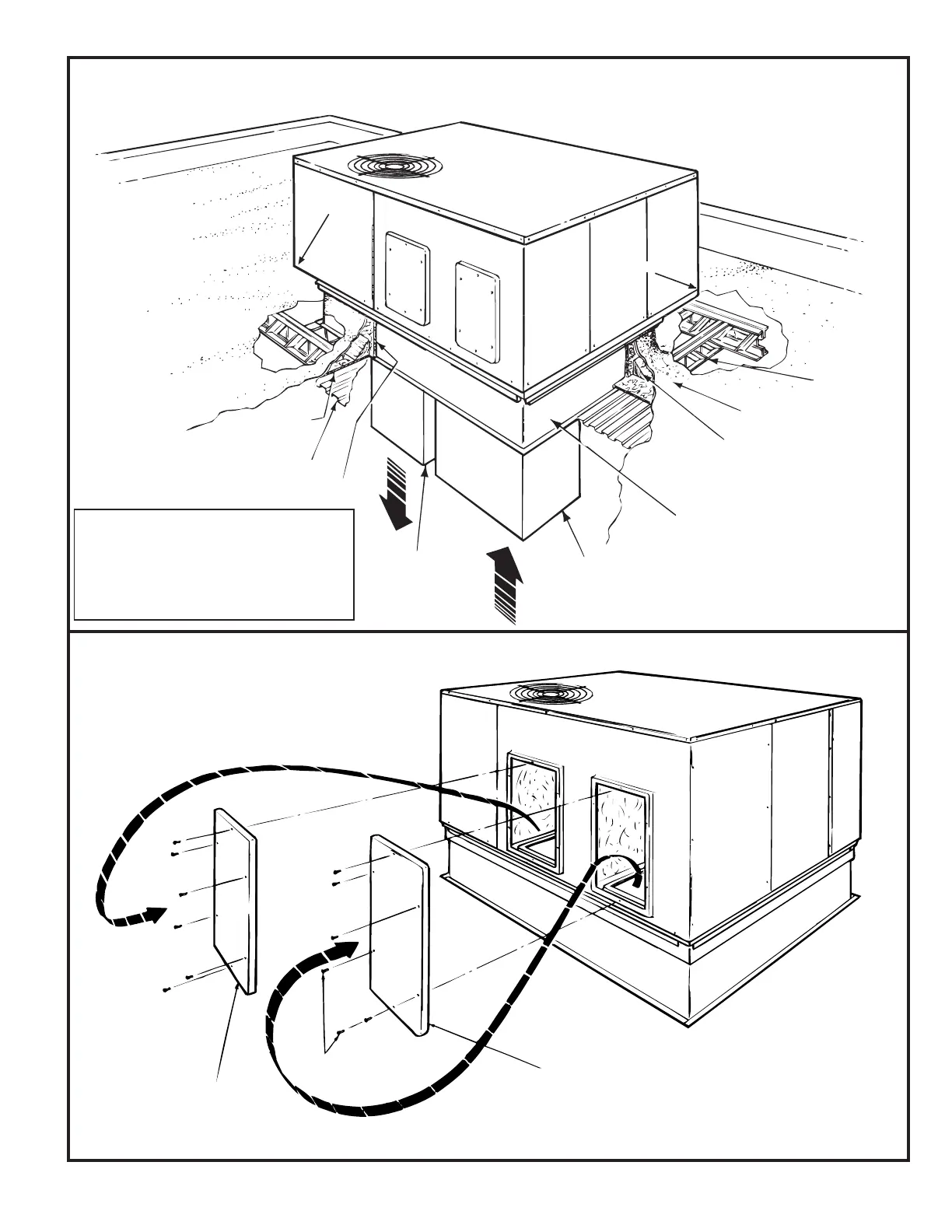

CONVERTING HORIZONTAL TO DOWNFLOW
TYPICAL ROOFTOP INSTALLATION WITH BAYCURB030A,038A
NOTE
SUPPLY OPENING
1. REMOVE THE SCREW NEAREST TO THE
OPENING AND PULL THE PANEL FIRMLY
TOWARD THE OUTSIDE OF THE UNIT TO
DISENGAGE THE BACK ATTACHMENT.
RETURN OPENING
2. REMOVE RIGHT HAND SCREW AND
MOVE PANEL TO THE RIGHT OR
REMOVE BOTH SCREWS.
2
3
ROOF INSULATION
ROOF DECK
FIELD SUPPLIED
RIGID INSULATION
SUPPLY AIR
DUCT
RETURN AIR
DUCT
ROOF MOUNTING
CURB
FIELD SUPPLIED
CANT STRIP
FIELD SUPPLIE
SUPPORTS
AT EACH END
OF CURB
ROOFING
SEE NOTE 1
SEE NOTE 2
HORIZONTAL SUPPLY
AIR COVER
HORIZONTAL RETURN
AIR COVER
SHEET METAL
SCREWS
NOTE 1: The WCP036 Models extend out
past this end of the curb only.
NOTE 2: Only the WCP048, 060F Models
extend past both the end and the
side of the curb as illustrated
