Trane WCP036F1 - Service Clearance Requirements

Page 5
DIMENSIONAL DATA
5
RECOMMENDED SERVICE CLEARANC
E
BACK * 6.0"
LEFT SIDE 30.0"
RIGHT SIDE 24.0"
FRONT 42.0"
* 18" WITH FRESH AIR ACCESSORY
* 30" WITH ECONOMIZER
CLEARANCE TO
COMBUSTIBLE MATERIAL
BOTTOM 0.0"
BACK 1.0"
LEFT SIDE 6.0"
RIGHT SIDE 6.0"
FRONT SIDE 12.0"
TOP 36.0"
MODEL A B C
WCP036F 62-7/8 36 29-3/16
WCP048F
WCP060F
64-3/8 45 33-3/8

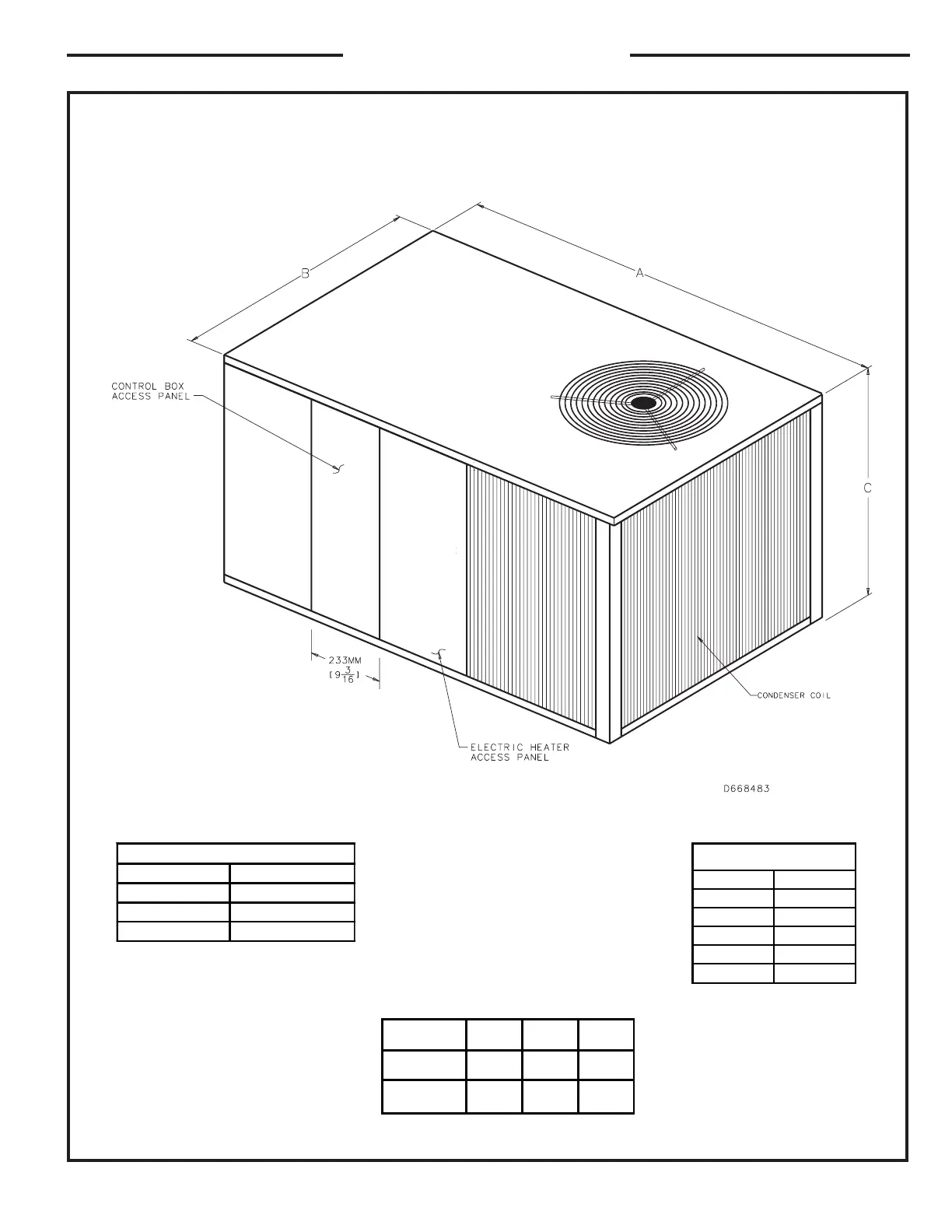

WCP036-060F OUTLINE - FRONT
