6 BAS-SVX40B-EN
General Information
Part Numbers
Available WCI models are listed by part number:

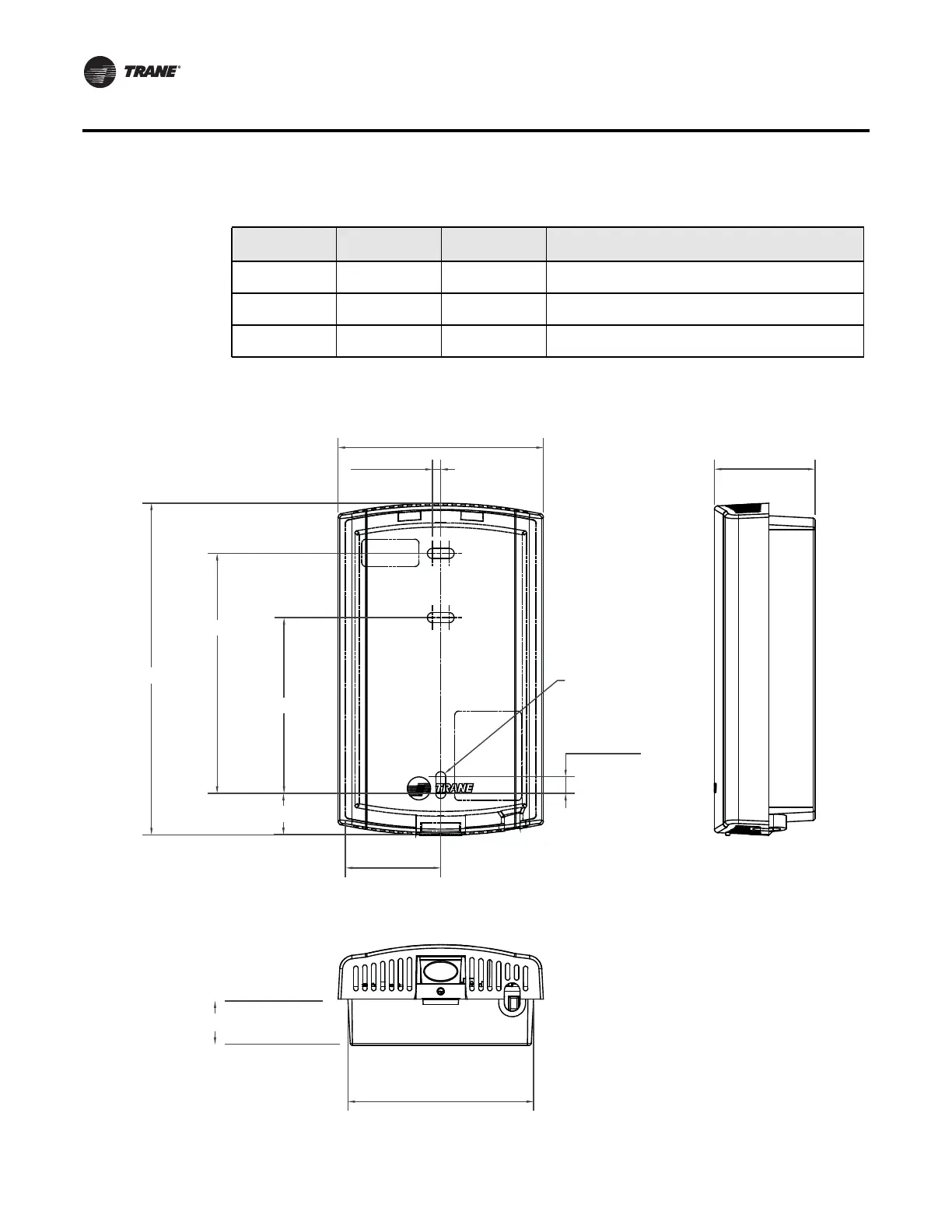

Dimensions for Indoor Model
The dimensions of the WCI enclosure are as follows:
Part number BAY Number
Individual Part
Number
Description
X13790901010 BAYWCII001 SEN01806 Indoor model includes wiring harness and mounting
hardware intended for indoor installations.
X13790902010 (NO BAY #) SEN01807 For flush-mount applications. (Wiring harness not
included.)
X13790941010 BAYWCII200A MOD02422 Outdoor model includes wiring harness and mounting
hardware intended for outdoor installations.
0.650 in. (16.50 mm)
2.896 in. (73.55 mm)
3.386 in. (86.00 mm)
2.480 in. (63.00 mm)
1.344 in. (34.14 mm)
0.236 in. (6.00 mm)
1.419 in. (36.03 mm)
4.677 in. (118.80 mm)
0.118 in. (3.00 mm)
2.620 in. (66.55 mm)
0.581 in. (14.76 mm)
R0.71 in. (R1.80 mm) TYP
