Trane XR 13 - Dimensions; Dimensions: 4 TTR3 Outline Drawing

10 22-1790-08
Dimensions

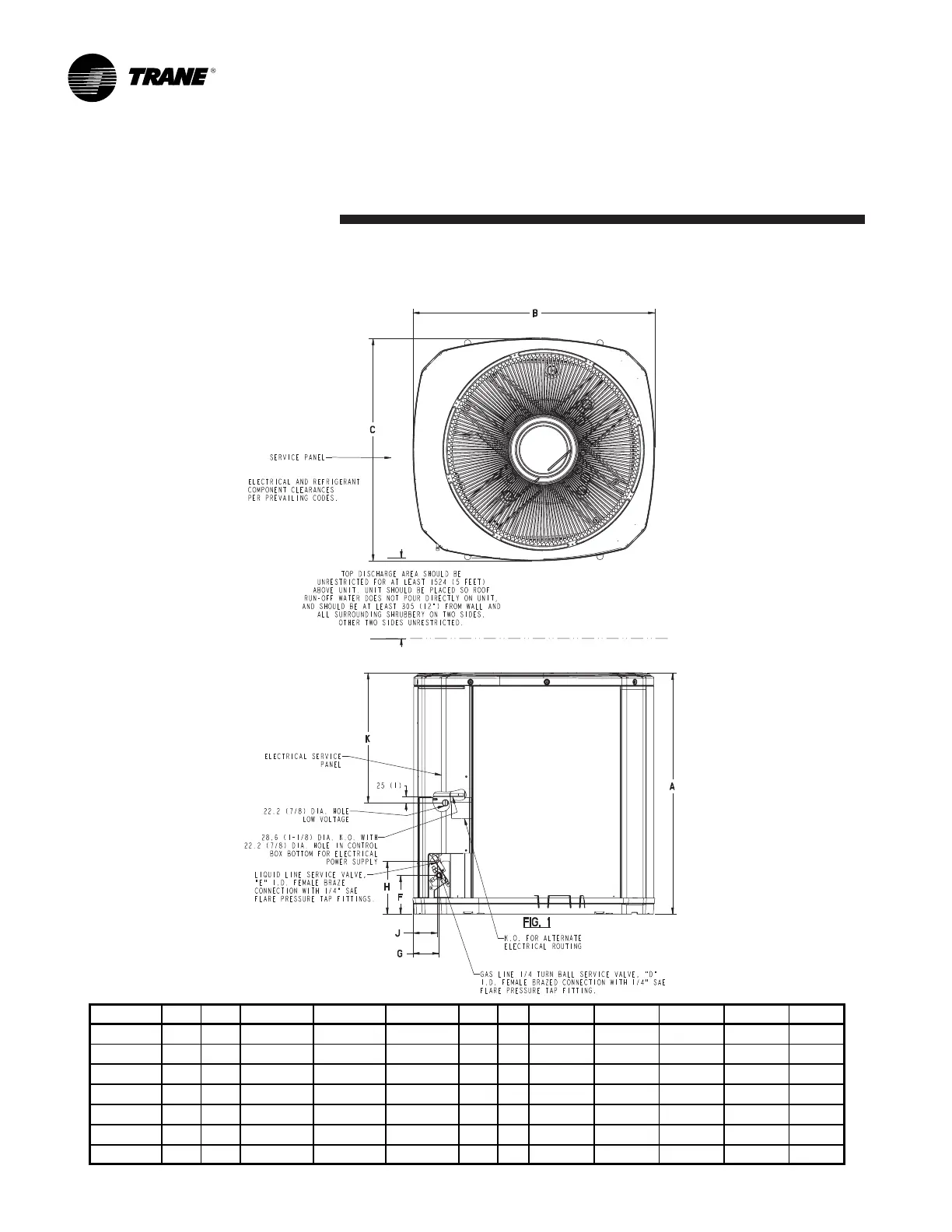

4TTR3 OUTLINE DRAWING
NOTE: ALL DIMENSIONS ARE IN MM (INCHES)
From Dwg. D152898
MODELS BASE FIG. A B C D E F G H J K
4TTR3018A 3 1 832 (32-3/4) 829 (32-5/8) 756 (29-3/4) 1/2 3/8 143 (5-5/8) 92 (3-5/8) 210 (8-1/4) 79 (3-1/8) 508 (20)
4TTR3024A 3 1 832 (32-3/4) 829 (32-5/8) 756 (29-3/4) 5/8 3/8 143 (5-5/8) 92 (3-5/8) 210 (8-1/4) 79 (3-1/8) 508 (20)
4TTR3030A 3 1 832 (32-3/4) 829 (32-5/8) 756 (29-3/4) 3/4 3/8 143 (5-5/8) 92 (3-5/8) 210 (8-1/4) 79 (3-1/8) 508 (20)
4TTR3036B 3 1 933 (36-3/4) 829 (32-5/8) 756 (29-3/4) 3/4 3/8 143 (5-5/8) 92 (3-5/8) 210 (8-1/4) 79 (3-1/8) 508 (20)
4TTR3042A 4 1 841 (33-1/8) 946 (37-1/4) 870 (34-1/4) 3/4 3/8 152 (6) 98 (3-7/8) 219 (8-5/8) 86 (3-3/8) 508 (20)
4TTR3048A 4 1 841 (33-1/8) 946 (37-1/4) 870 (34-1/4) 7/8 3/8 152 (6) 98 (3-7/8) 219 (8-5/8) 86 (3-3/8) 508 (20)
4TTR3060A 4 1 1045 (41-1/8) 946 (37-1/4) 870 (34-1/4) 7/8 3/8 152 (6) 98 (3-7/8) 219 (8-5/8) 86 (3-3/8) 508 (20)
