Unit Dimensions

RT-SVX21P-EN 17

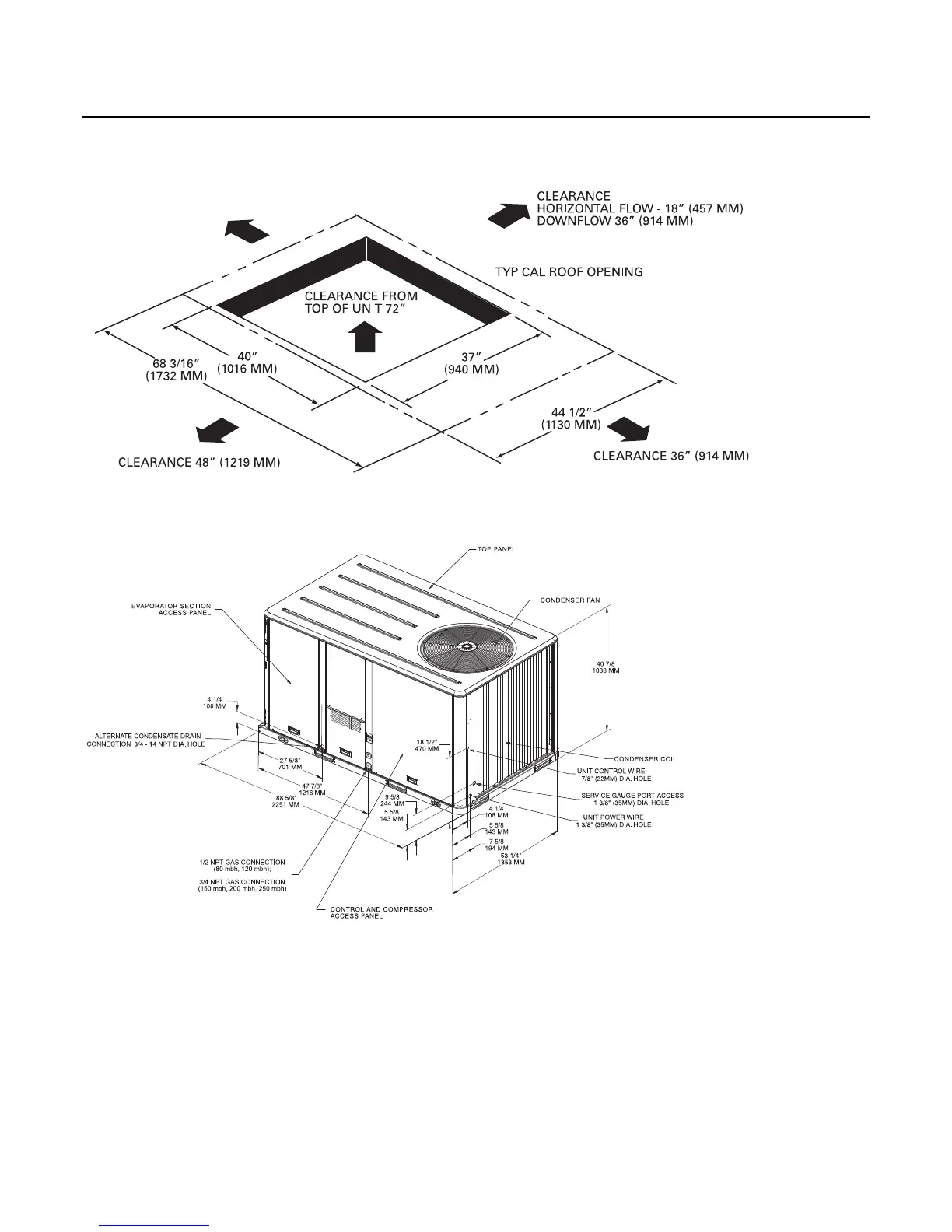

Figure 4. 3-5 ton standard efficiency, 3 ton high efficiency - unit clearance and roof opening

Note: All dimensions are in inches/millimeters.

CLEARANCE 36” (914 MM)

Figure 5. 6, 7½ (single) ton standard efficiency, 4-5 ton high efficiency

Note: All dimensions are in inches/millimeters.
