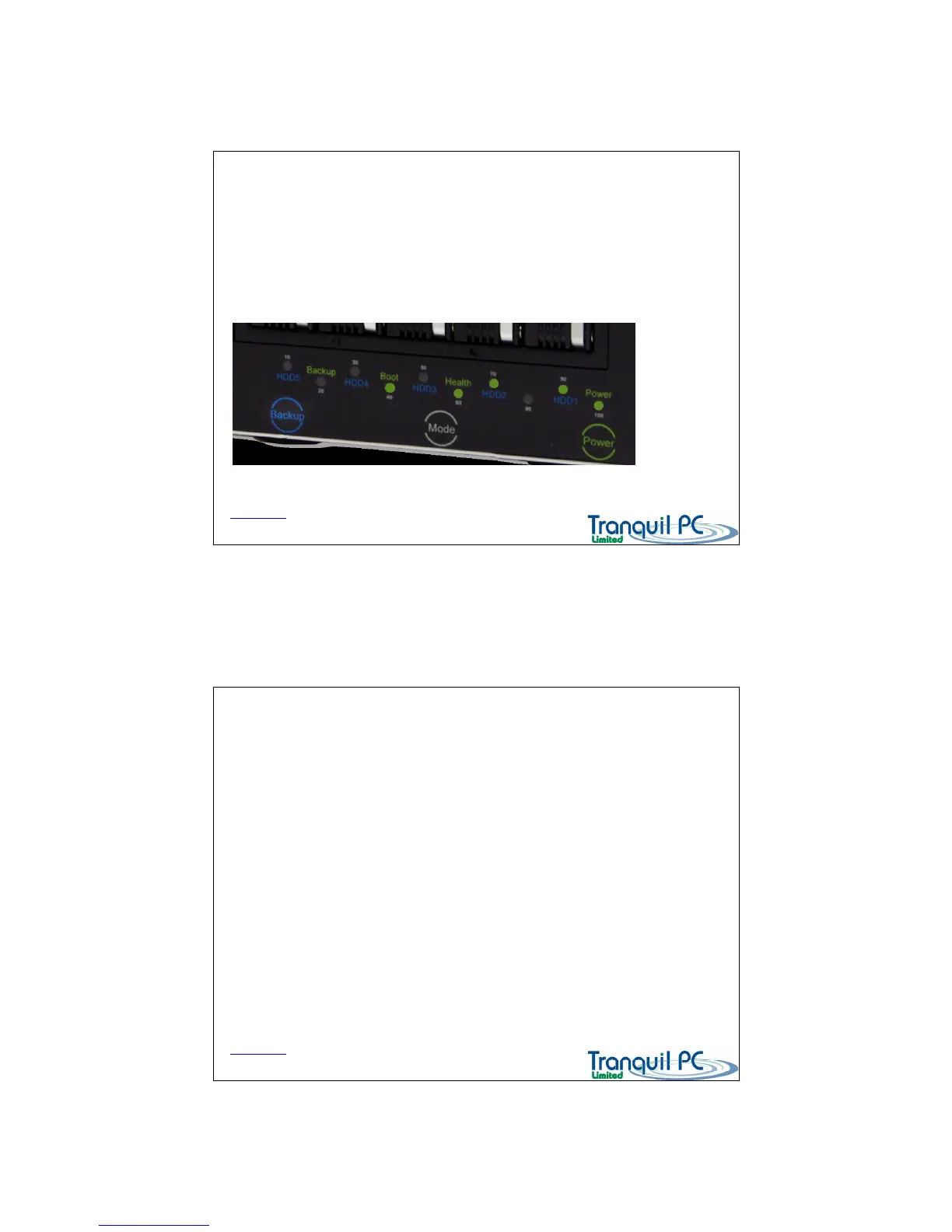

The front panel status indicators - lower
D03_ WHS_PP1_UK
The Power LED should normally be Green
Each HDD bay that is in use should be Green
The Health LED should be Green
The Boot LED should be Green
Green LEDs indicate system is running in good order
Back to Index page
The front panel status indicators - lower
D03_ WHS_PP1_UK
LED Status :
Power ON OFF = System off
LAN Connected to router Disconnected from router
Health OK Needs immediate attention Needs attention
Boot Booted OK Booting (flashing)
Backup Backup completed Backup failed Backup in progress (flashing)
HDD (all) Mounted and Healthy Failed Disk un-mounted
Back to Index page
