Installation and Setup
Page 28 100-13732 - Rev B
Loading Label Rolls
The Ithaca
®
9800 printer features easy, drop-in loading of thermal label roll
media. This section discusses how to load label media.

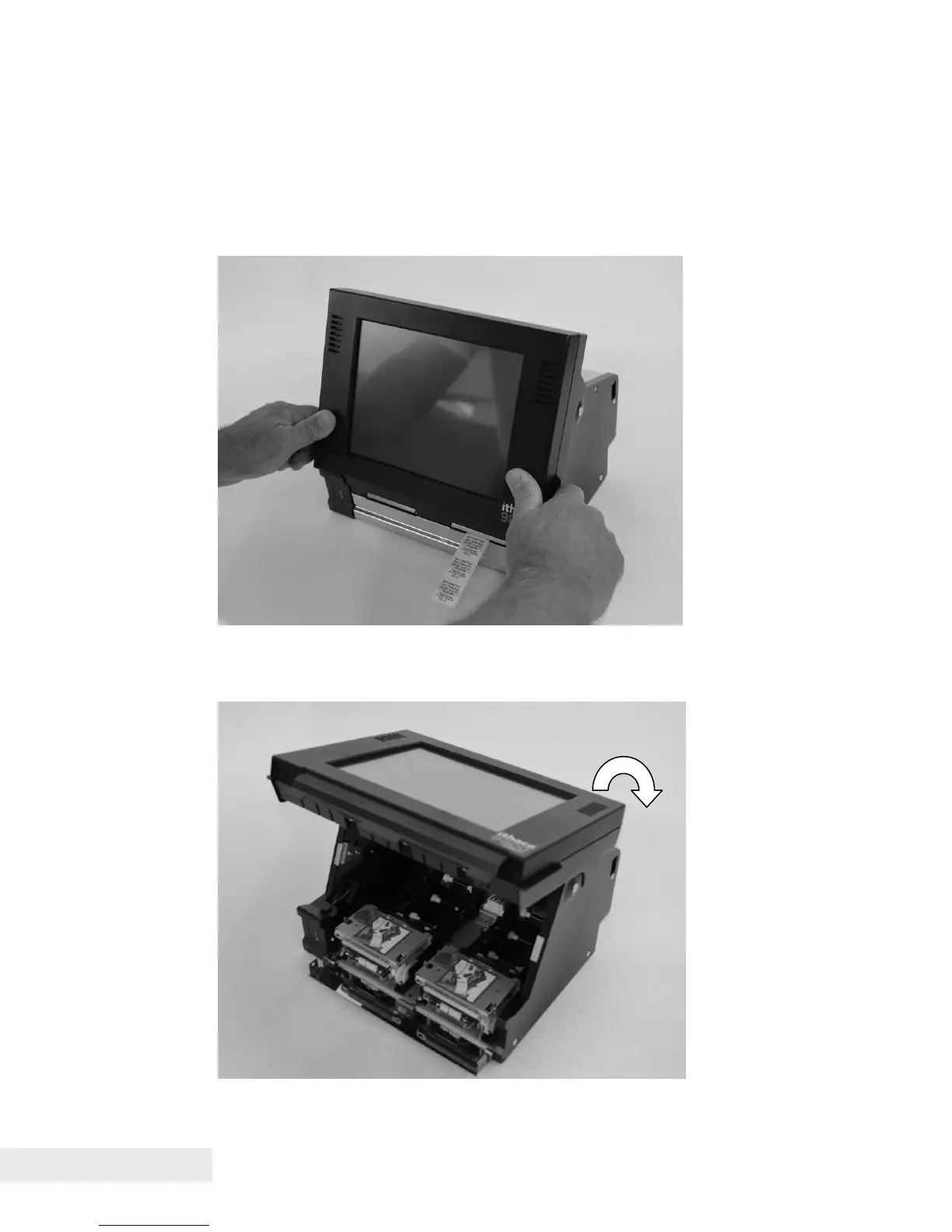

1. Grasp the sides of the display, and rotate it toward the rear of the terminal.
2. Rotate the display until it in a horizontal orientation as shown in the figure.
