Installation and Setup
Page 30 100-13732 - Rev B

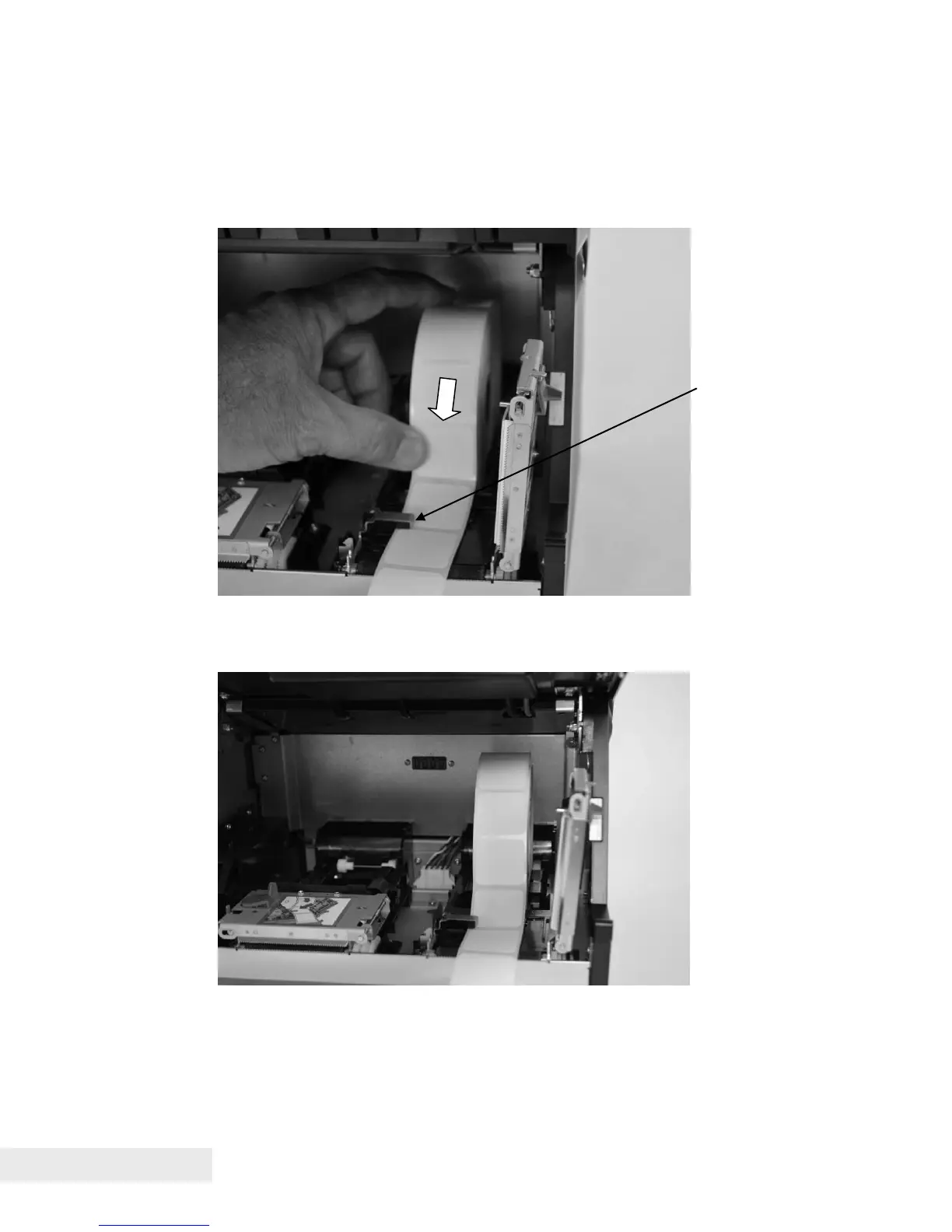

5. Drop the label roll into the label roll bucket. Note the proper orientation of
label stock coming off top of roll.
Thread label stock under label sensor in printer mechanism as shown. Leave
three or four labels in front of printer mechanism.
Note that following the insertion of the paper, the label sensor should be
positioned over a label, not the web between labels, as shown in the figure.
