3200B SERIES OPERATION MANUAL
TRANSMILLE LTD. Page 44

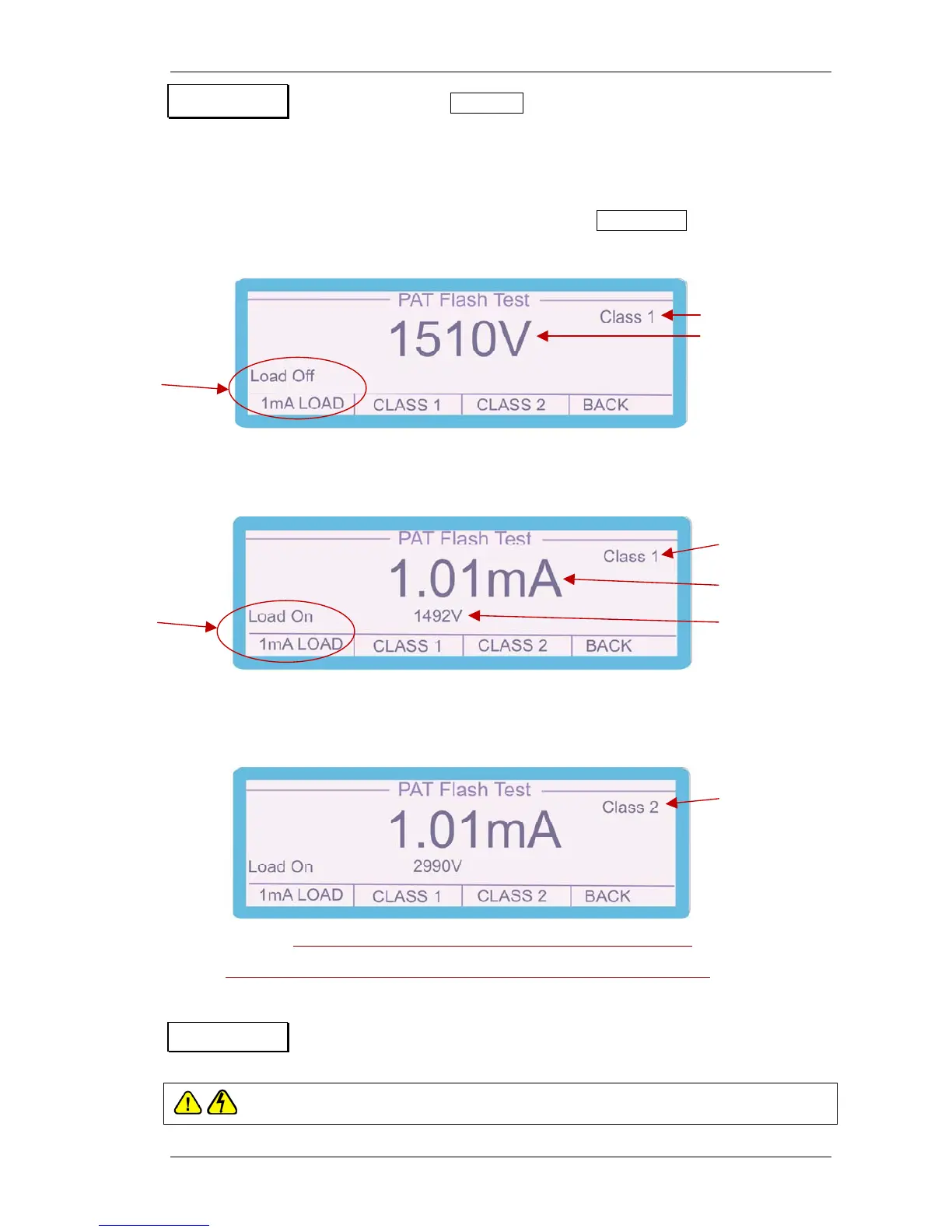

Step 6 Press the soft keys CLASS 1 and CLASS 2 to select the required
flash test mode either 1.5kV (class 1) or 3kV (class 2)
The ‘FLASH’ Voltage generated by the PAT under test can either
be measured under a nominal 1mA load or measured as the
‘open circuit’ voltage. Use the soft key 1mA LOAD to select
the load ON or OFF as required.
The Flash voltage for CLASS 1 is measured between LIVE and
EARTH on the IEC socket of the flash adapter.
The Flash voltage for CLASS 2 is measured between the LIVE of
the IEC socket and the 3kV TEST POINT of the flash adapter.
THE EARTH OF THE IEC SOCKET MUST BE LEFT
OPEN CIRCUIT TO OBTAIN CORRECT READINGS FOR THIS TEST.
Step 7 Apply the Flash test voltage from the PAT under test.
Read the voltage and current displayed on the 3200B
Warning : High voltages are present during PAT Flash testing
1mA load off
Class 1 selected
Flash voltage measurement
1mA load on
Class 1 selected
Load Current
Flash voltage
Class 2 selected
