6. Operating the Machine

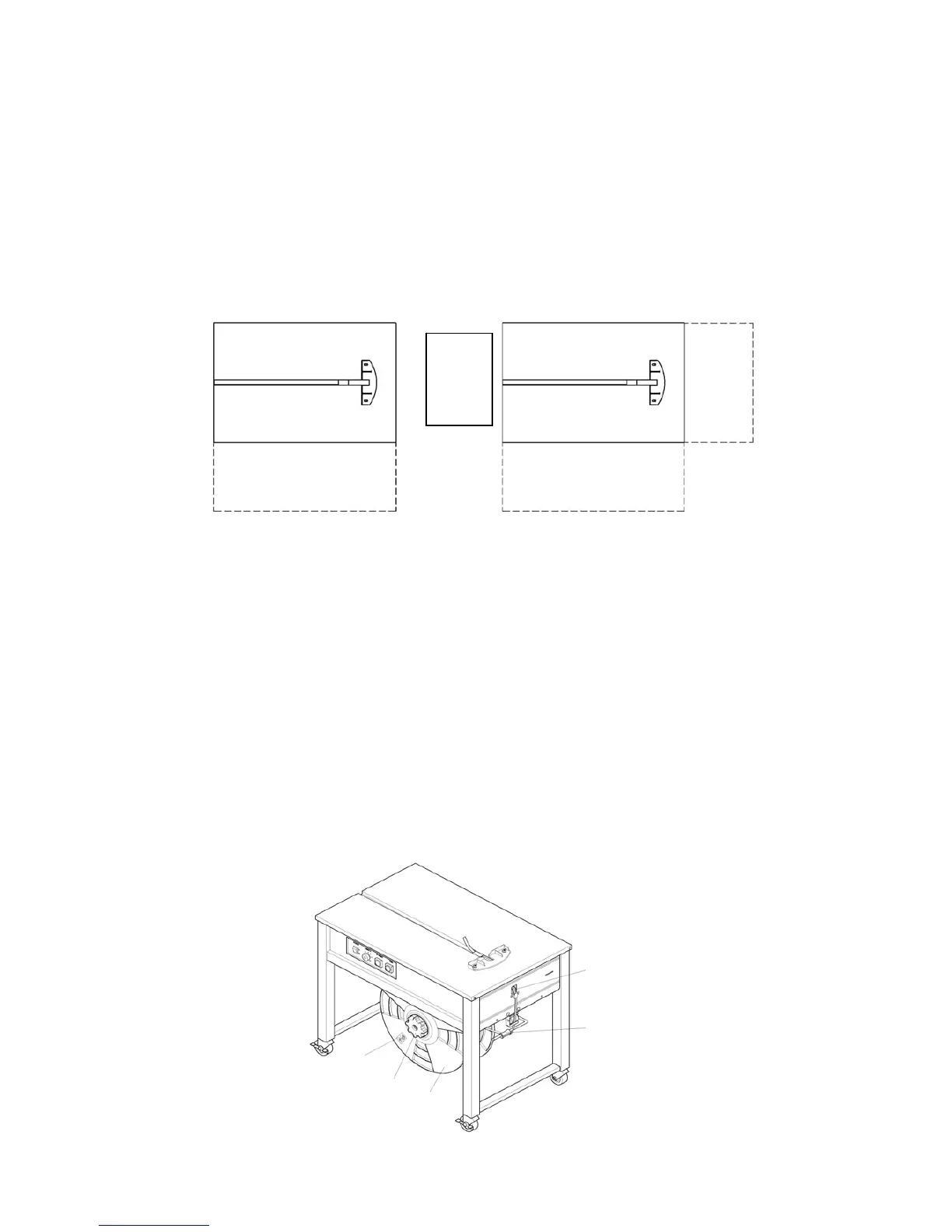

(1) Operation Space
Keep the area (A) and (B) free for the operator.
The area (A) is necessary for operation strapping machine or changing the strap coil
(TP-202).
For TP-201/TP-203, the area (B) is necessary for changing the strap coil.
(2) How to Load and Thread P.P. Strap
a. Turn reel nut handle (A) left and remove it.
b. Remove the outer flange (B) and install the strap reel.
c. Make sure that the direction of rotation is counterclockwise (E) when unrolling.
d. Put the outer flange back on and tighten reel nut handle (A) to the right.
e. Remove all adhesive strips or other adhesive material.
f. Unroll about 1.5 m of strap and make sure that it is not twisted.
g. Thread the strap over (C) to roller (D) in direction of the arrow.
h. Turn left button (strap feed) to the left until obtaining the length you need.
A
A
B
TP-202 TP-201 / TP-203
D
C
B
A
E
B
