TranzX ES 504 - Stem and Handlebar Adjustment; Pedal Assembly

7

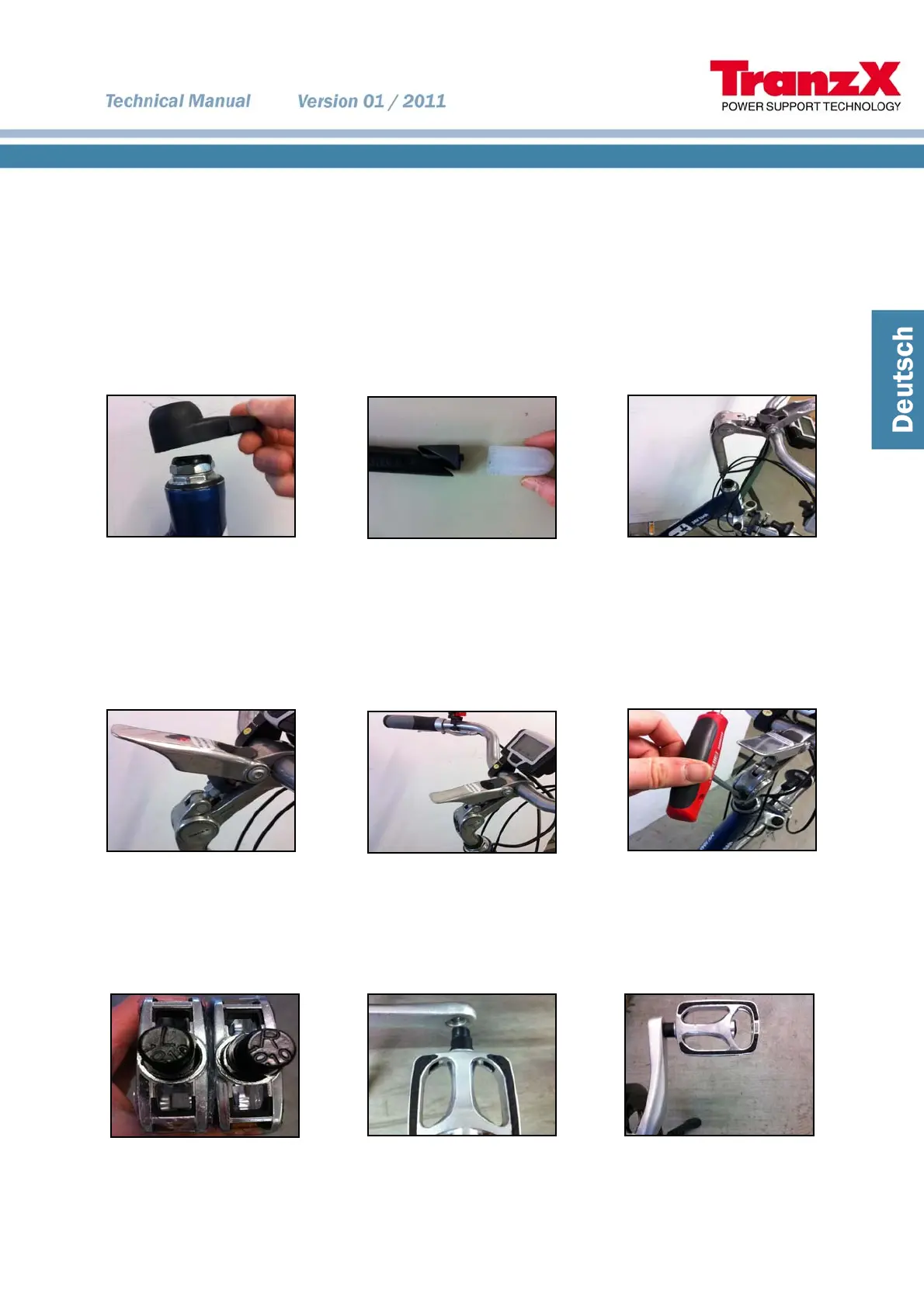

Stem Assembly
1. Fit the cable guide onto the head set (Img. 6).
2. Remove the plastic cap from the stem quill (Img. 7).
3. Insert the stem into the head tube (Img. 8).
4. Make sure the stem does not exceed the minimum insertion height.
Handle Bar Adjustment
1. Press the spring-button of the safety lock to loosen the stem hinge and adjust the handle bar
(Img. 9 and 10).
2.
Loosen the Allen screw to adjust the height.
3.
Tighten the Allen screw and the quill bolt once you have finished adjusting (Img. 11).
Pedal Assembly
Fit the left pedal (L symbol) into the left crank by turning the pedal axle counter-clockwise. Fit the
right pedal (R symbol) into the right crank by turning the pedal axle clockwise
(Img. 14).
Img. 2
Img. 3
Img. 4
Img. 5
Im
g
. 7
Img. 6
Img. 9
Img. 10 Img. 8
