22
DHCP Server: Enables the DHCP server to allow the router to automatically assign
IP addresses to devices connecting to the LAN. DHCP is enabled by default.
All DHCP client computers are listed in the table at the bottom of the screen,
providing the host name, IP address, and MAC address of the client.
Start IP: Type an IP address to serve as the start of the IP range that DHCP will use
to assign IP addresses to all LAN devices connected to the router.
End IP: Type an IP address to serve as the end of the IP range that DHCP will use
to assign IP addresses to all LAN devices connected to the router.
Domain Name: Type the local domain name of the network in the text box. This
item is optional.

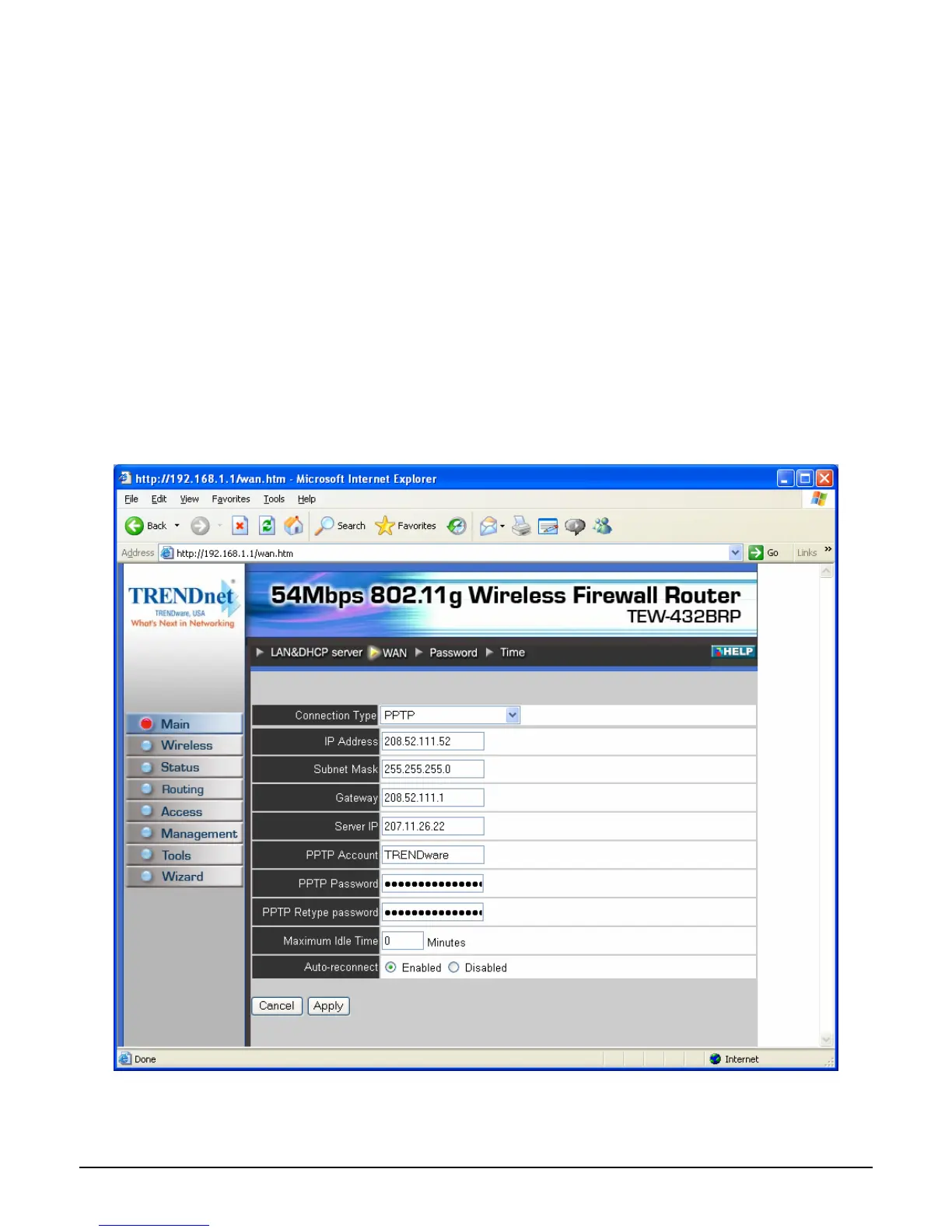

2.1.2 WAN
This screen enables user to set up the router WAN connection, specify the IP
address for the WAN, add DNS numbers, and enter the MAC address.
Connection Type: Select the connection type, either DHCP client, Fixed IP or
PPPoE from the drop-down list.
