29
Beacon Interval: Type the beacon interval in the text box. User can specify a value
from 1 to 1000. The default beacon interval is 100.
RTS Threshold: Type the RTS (Request-To-Send) threshold in the text box. This
value stabilizes data flow. If data flow is irregular, choose values between 256 and
2432 until data flow is normalized.
Fragmentation Threshold: Type the fragmentation threshold in the text box. If
packet transfer error rates are high, choose values between 256 and 2432 until
packet transfer rates are minimized. (NOTE: set this fragmentation threshold value
may diminish system performance.)
DTIM Interval: Type a DTIM (Delivery Traffic Indication Message) interval in the
text box. User can specify a value between 1 and 65535. The default value is 3.
TX Rates (Mbps): Select one of the wireless communications transfer rates,
measured in megabytes per second, based upon the speed of wireless adapters
connected to the WLAN.
2.3 Status
This selection enables user to view the status of the router LAN, WAN connections,
and view logs and statistics pertaining to connections and packet transfers.

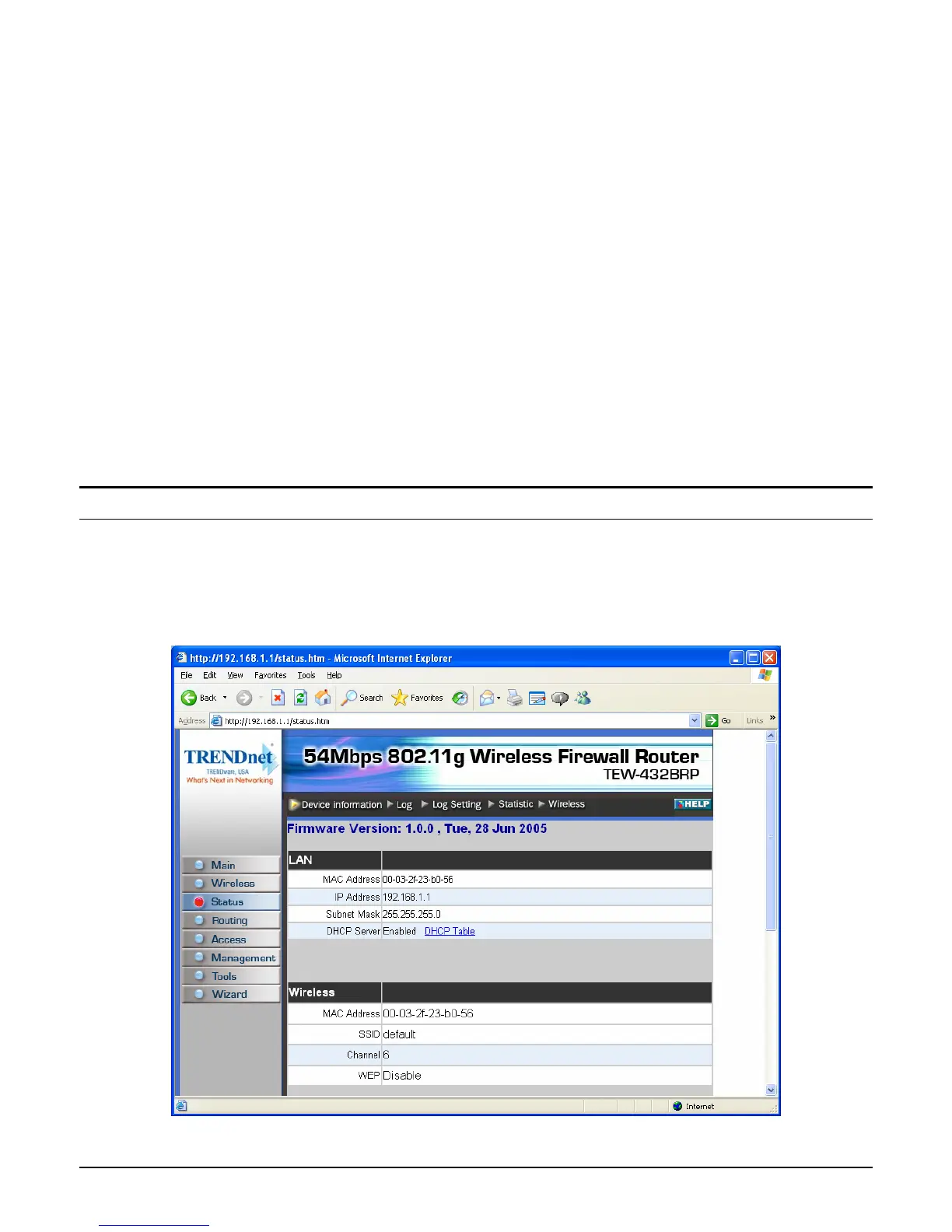

2.3.1 Device Information
This screen enables user to view the router LAN, Wireless and WAN configuration.
To Next Page
