TRENDnet TEW-638APB User Manual

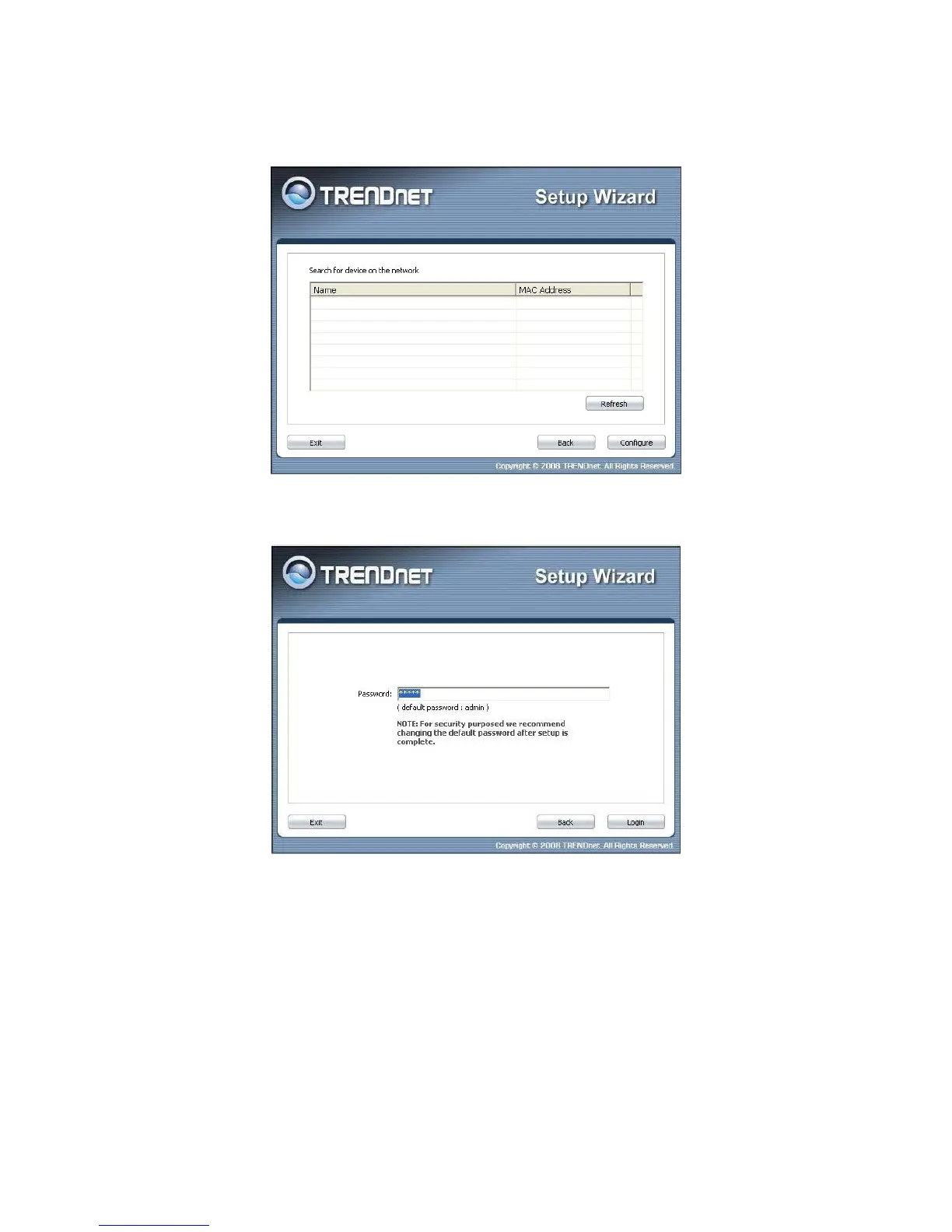

6. Your computer will detect TEW-638APB and the Device List screen appears on your monitor. Click
Configure button to continue (default TEW-638APB IP Address is 192.168.10.100).
7. Enter password for the Access Point. The default password is “admin”. Click Login button to
continue.
Page 12

TRENDnet TEW-638APB Specifications

General

Frequency band	2.412 - 2.472 GHz
Channels quantity	13 channels
Networking standards	IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.2, IEEE 802.3u
Receiver sensitivity	802.11n: -68dBm (typical) @ MCS15/HT20, -66dBm (typical) @ MCSI15/HT40 802.11g: -72dBm (typical) @ 54Mbps 802.11b: -84dBm (typical) @ 11mpbs
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Quality of Service (QoS) support	Yes
Indoor range	100m
Outdoor range	300m
Wireless range	300 m
Networking features	Fast Ethernet
Operating temperature (T-T)	32 - 104 °F
Compliance industry standards	IEEE 802.3, IEEE 802.3u
Antenna features	Detachable antenna
Antennas quantity	2
Antenna gain level (max)	2 dBi
Internal	No
Cable length	0.6 m
Certification	RoHS
LED indicators	LAN, Power, WLAN
WAN connection	Ethernet (RJ-45)
Security algorithms	128-bit WEP, 64-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
Power supply type	DC
Power requirements	12V/0.5A
Cables included	LAN (RJ-45)
Minimum system requirements	CD-ROM
Compatible operating systems	Windows 2000/XP/Vista Windows 2003 Server
Harmonized System (HS) code	85176990

Weight and Dimensions

Weight	145 g
Dimensions (WxDxH)	26 x 120 x 88 mm
