TRENDnet TEW-PCI User Manual

PCI Wireless Network Adapter User’s Manual
24
Chapter 4 – Using the Wireless Utility
The following sections cover the PCI Wireless Network Adapter utility installation and
configuration.
Installation in Windows
After you have installed the PCI Wireless Network Adapter driver and have rebooted
the computer. Please follow the steps below.

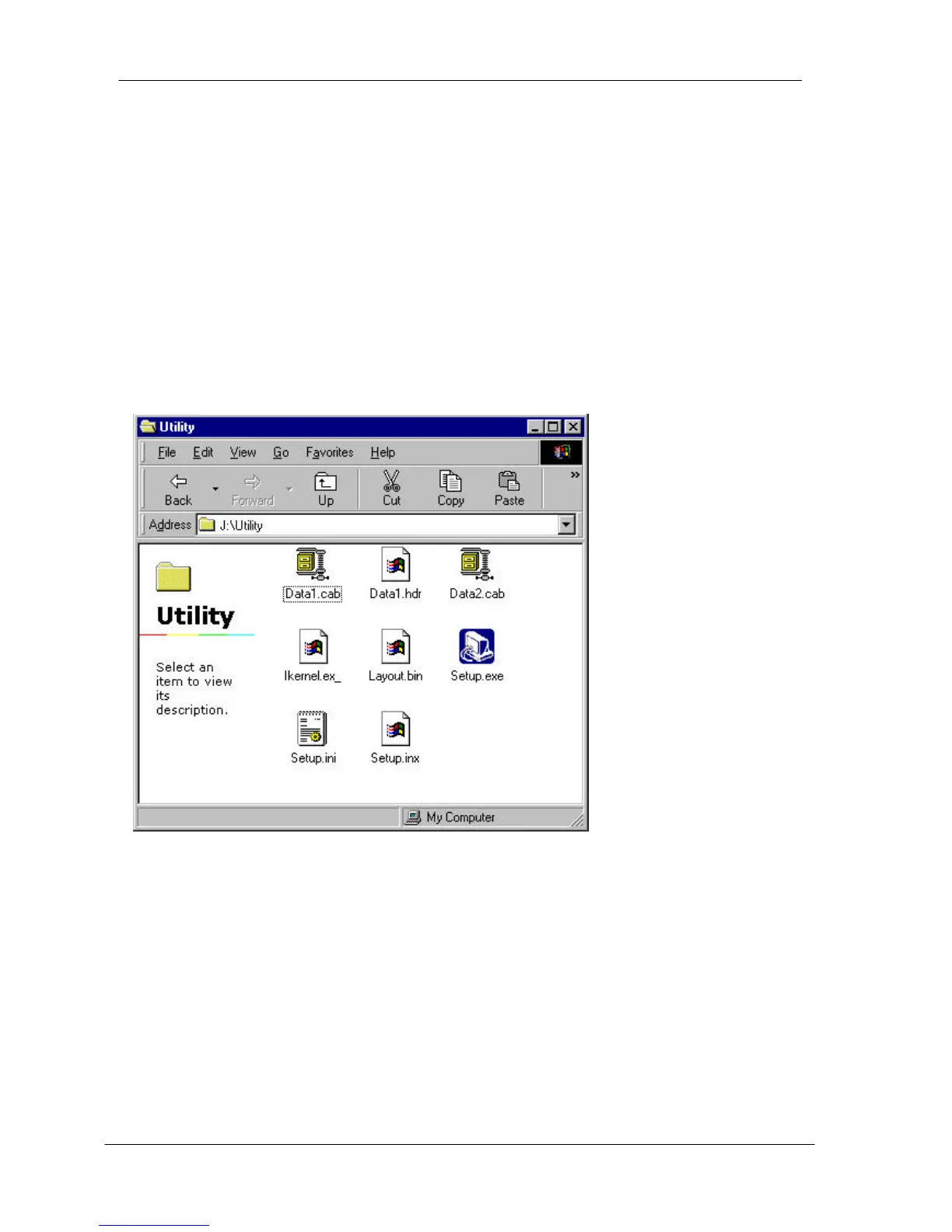

1. double click Setup.exe under the Utility folder in the CD-ROM.
2. Once you see the following screen, click Next to continue.

TRENDnet TEW-PCI Specifications

Wireless Specifications

standards	IEEE 802.11b
frequency	2.4 to 2.4835GHz
data rate	up to 11Mbps

Operating Environment

operating temperature	0° ~ 55° C
storage temperature	-25° ~ 70° C
humidity	10% to 90% (non-condensing)

Operating Ranges

indoor range at 11Mbps	up to 50M
indoor range at 5.5Mbps	up to 80M
outdoor range at 11Mbps	up to 150M

Weight and Dimensions

dimensions	135 x 22 x 121 mm (without the antenna)
antenna length	108 mm
