TRENDnet TPL-401E2K - Leds

1.5 LEDs

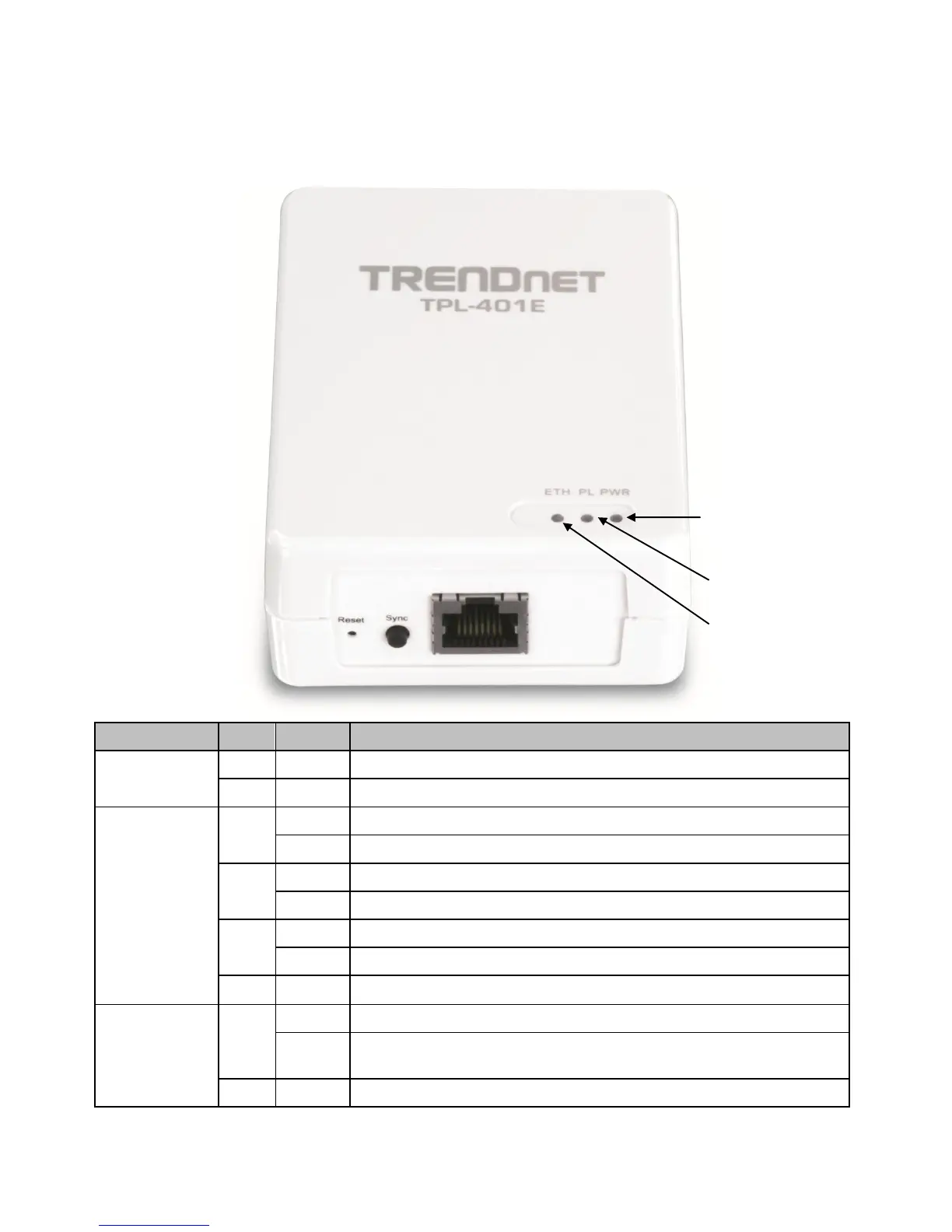

The LED panel located on the front of the device consists of the status LEDs: Power (PWR),
Powerline (PL), and Ethernet Link/Act (ETH).
LED
Color
Sequence
Definition
PWR (Power)
Green
Solid
Device powered On
N/A
Off
Device powered Off
PL (Powerline)
Note: LED color
indicates the
strength and
quality of the
powerline
connection
through the
electrical system
Green
Solid
Powerline Connected (Connection Quality is Best)
Blinking
Syncing or Powerline Data Transmitting/Receiving (Connection Quality is Best)
Amber
Solid
Powerline Connected (Connection Quality is Better)
Blinking
Powerline Data Transmitting/Receiving (Connection Quality is Better)
Red
Solid
Powerline Connected (Connection Quality is Good)
Blinking
Powerline Data Transmitting/Receiving (Connection Quality is Good)
N/A
Off
Powerline is not synced or connected
ETH
(Ethernet Port)
Green
Solid
10/20 Mbps, 100/200Mbps, or 1000/2000Mbps (Half/Full Duplex) Connected
Blinking
10/20Mbps, 100/200Mbps, or 1000/2000Mbps (Half/Full Duplex) Data
Transmitting/Receiving
N/A
Off
Port Disconnected/No Ethernet Link
Power (PWR)
Powerline (PL)
Ethernet Link/Act
*Note: The following factors may affect the powerline network’s connection quality:
 Noise – Generated by appliances that are connected to your electrical system through power outlets that have high power
consumption requirements. (e.g. Microwaves, ovens, blow dryer, iron, dishwasher, etc.) The quality of your household
electrical wiring may also cause additional noise on your electrical system.
 Distance – Long lengths of electrical wiring through your electrical system between connected powerline adapters.
