Trenz PILOT PLUG - The Leds & Button; Charging the Pilot Plug

Rev 2.2 - 03/20
4
The LEDs & Button

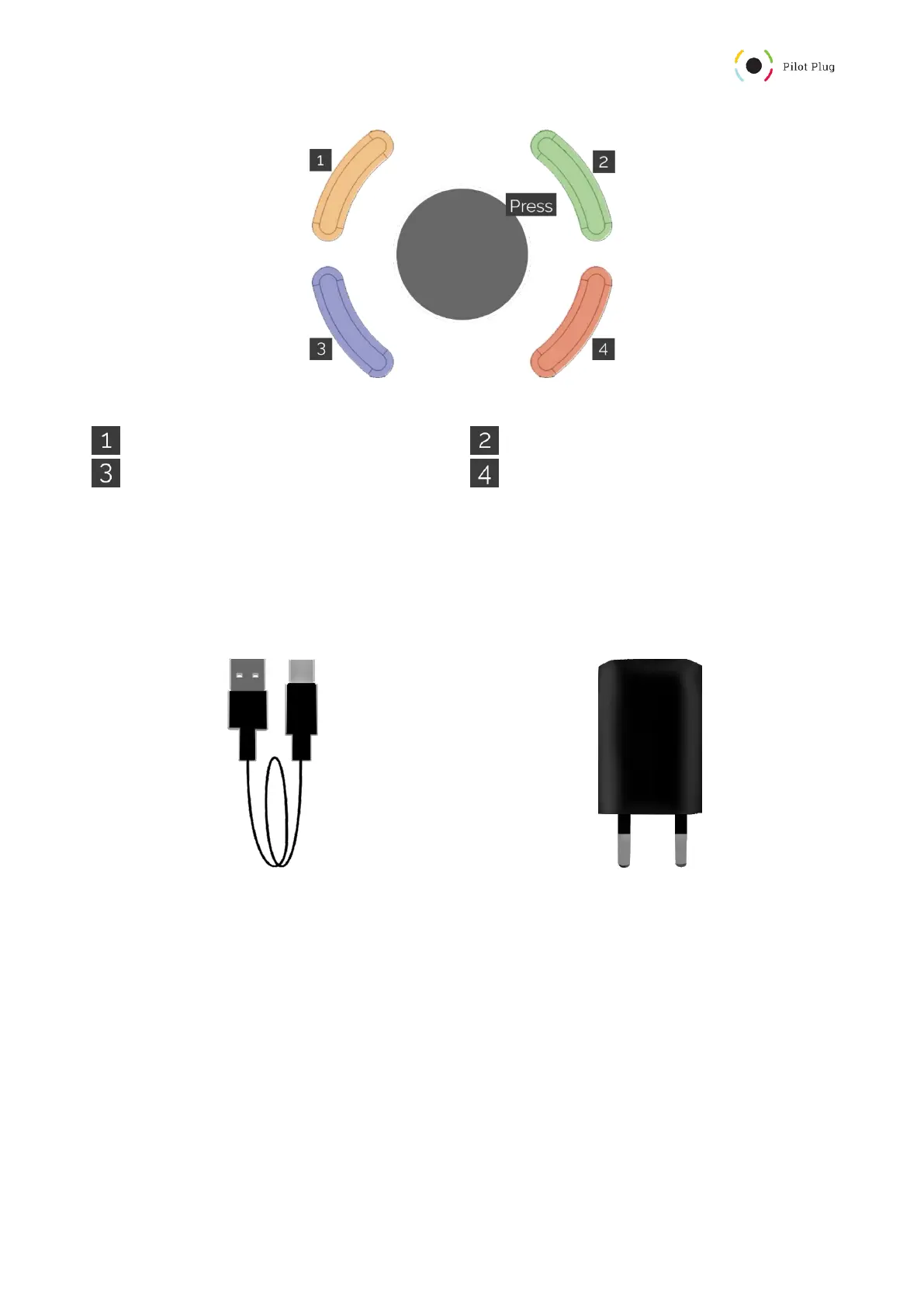

Figure 2: LEDs & Button
Orange: AIS activity
Green: GPS active
Blue: Wi-Fi Connection/Heading active
Red: ROT active
Press the button to re-calibrate Rate of Turn; hold the button during software check to reset the configuration.
Charging the Pilot Plug
To charge the device, connect the included USB Type A to USB Type C cable (Figure 3) to one of the USB Type C
ports (Figure 1.1) on the Pilot Plug and connect the other end to the included charger (Figure 4).
Figure 3: USB Type A to USB Type C
Figure 4: USB Charger
